Control Assembly, HVAC

REMOVAL
1. Remove the radio chassis.
2. Remove the floor console.







3. Remove the control opening finish panel.

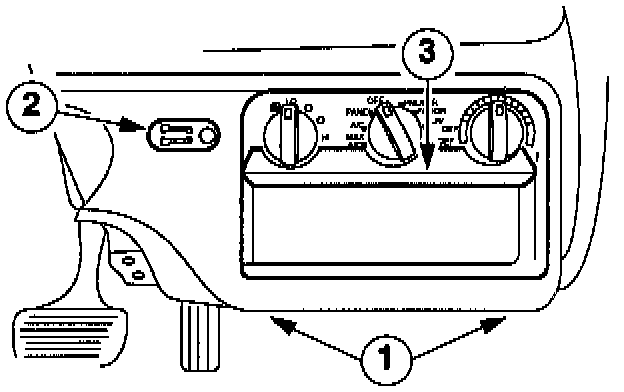

1. Remove the four screws.
2. Disconnect the headlamp dimmer switch electrical connector.
3. Remove the panel.

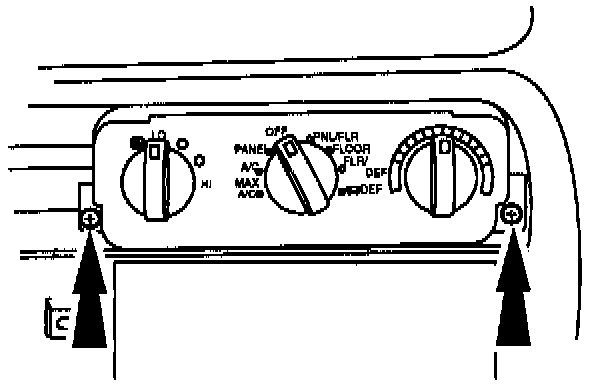

4. Remove the climate control assembly screws.







5. Remove the climate control assembly.

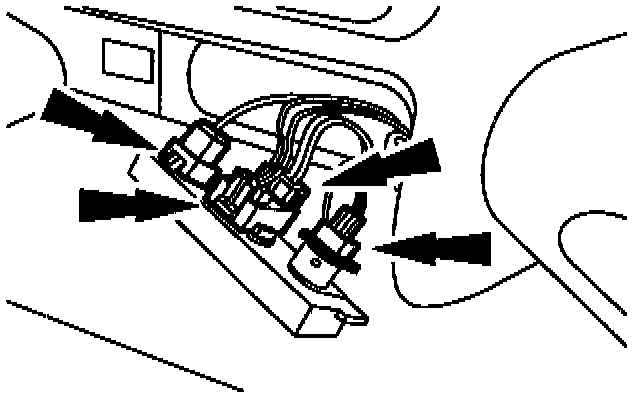

^ Disconnect the electrical connectors.
^ Disconnect the vacuum harness connector.

INSTALLATION
1. To install, reverse the removal procedure.
