Blower Motor

REMOVAL

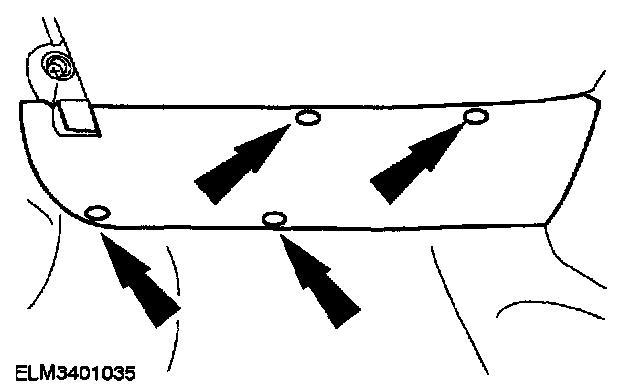

1. Remove the pushpins for the upper footwell trim panel on the passenger's side and remove it.







2. Remove the blower motor.

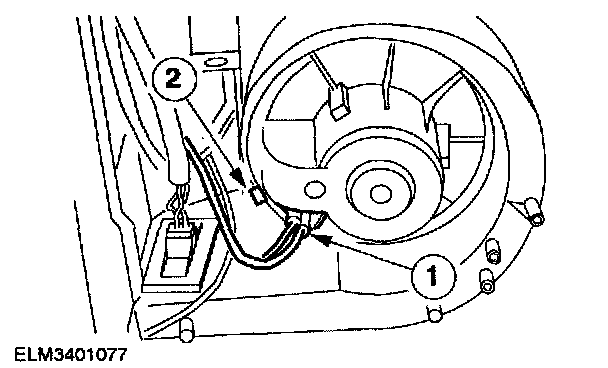

1. Disconnect the electrical connector.
2. Lift the securing tab slightly.

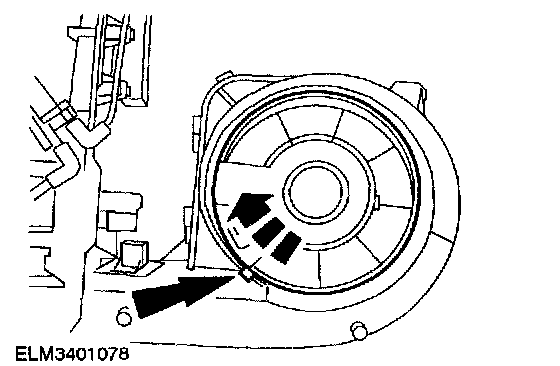

^ Turn the blower motor approx. 30° counter-clockwise and remove it.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Engage the securing tab for the blower motor.
