Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

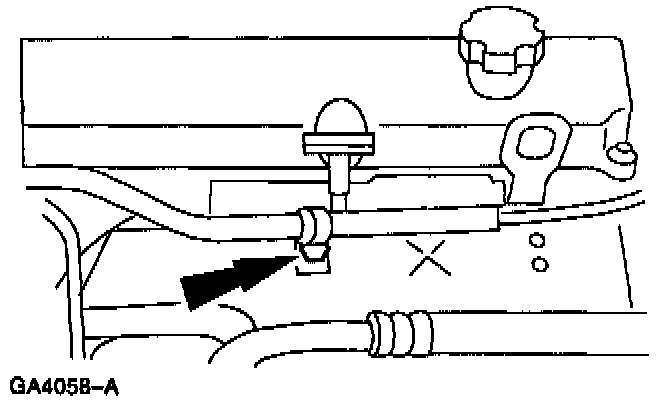

REMOVAL





1. Remove the nut.
2. Remove the oil level indicator tube by pulling upwards.

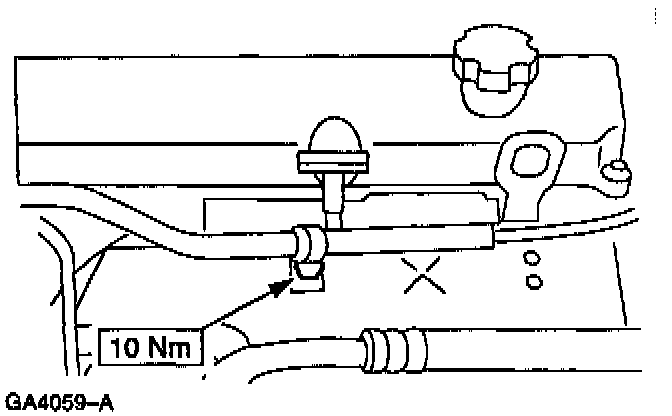

INSTALLATION





1. Apply Threadlock 262 E2FZ-19554-B or equivalent meeting Ford specification WSK-M2G351-A6 to the end of the oil level indicator tube. Install the nut.
