Valve: Testing and Inspection
1.

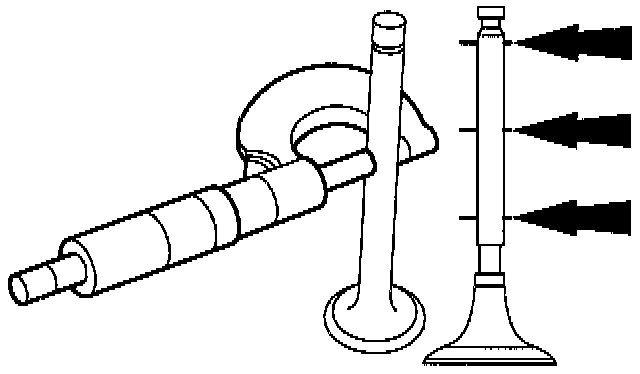

Using a micrometer measure the diameter of the valve stems.
-
If the measurements are outside specification, replace the valve.
