Piston Pin: Testing and Inspection

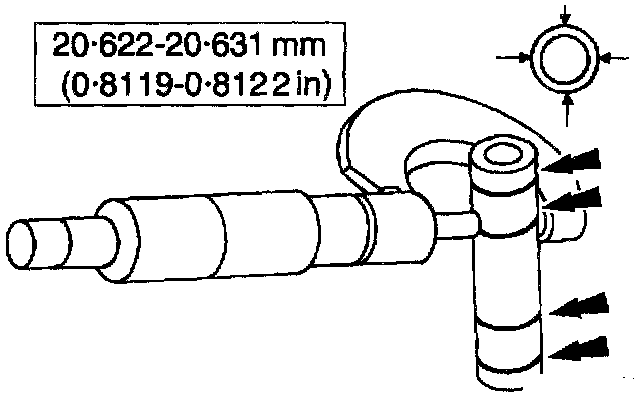

1. Measure the piston pin diameter.
- Measure the diameter in two directions
- If the valves are outside a specification, replace both the piston and piston pin.

NOTE:The piston and piston pin are a matched pair. Do not mix up components.
