Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL





1. Remove the splash shields.

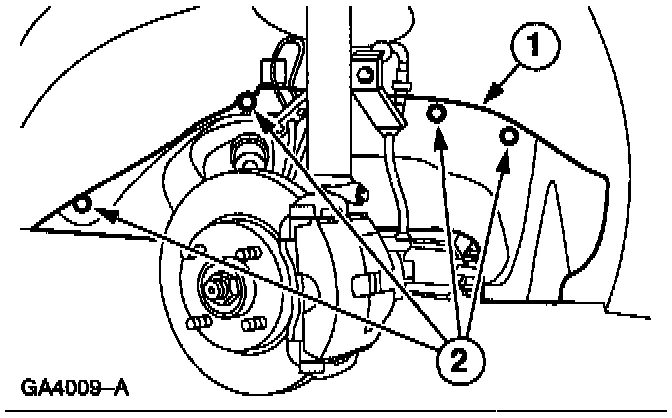

1 Remove the bolts.
2 Remove the splash shields.





2. Remove the accessory drive belt.

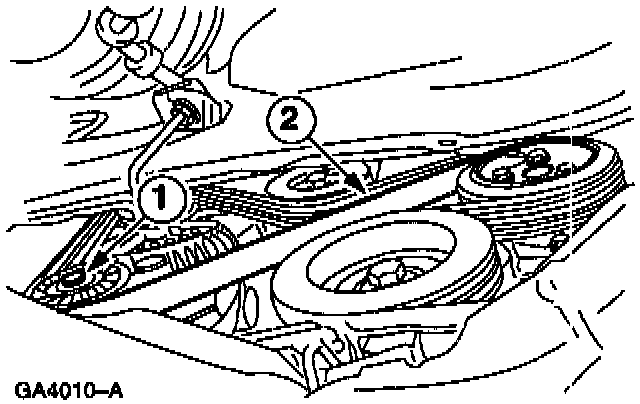

1 Turn the belt tensioner clockwise.
2 Remove the accessory drive belt.

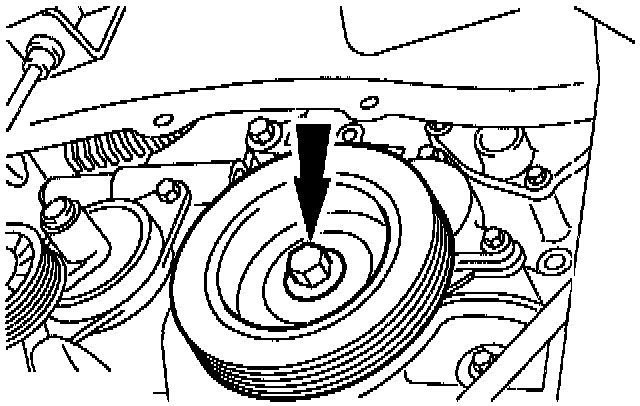

3. Remove the bolt and the crankshaft pulley.

INSTALLATION

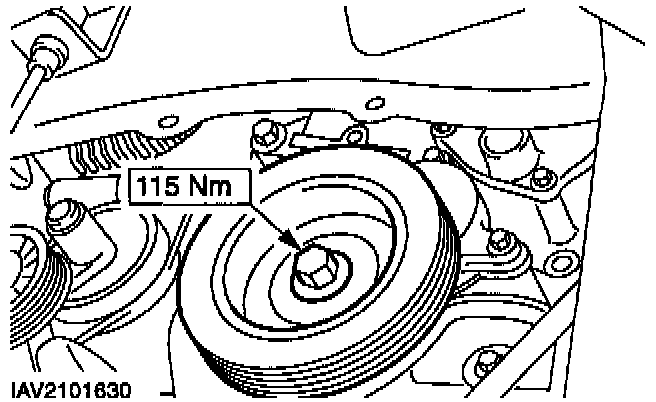

1. Install the crankshaft pulley and tighten the bolt.





2. Install the accessory drive belt.
1 Turn the belt tensioner clockwise.
2 Install the accessory drive belt.





3. Install the splash shields.

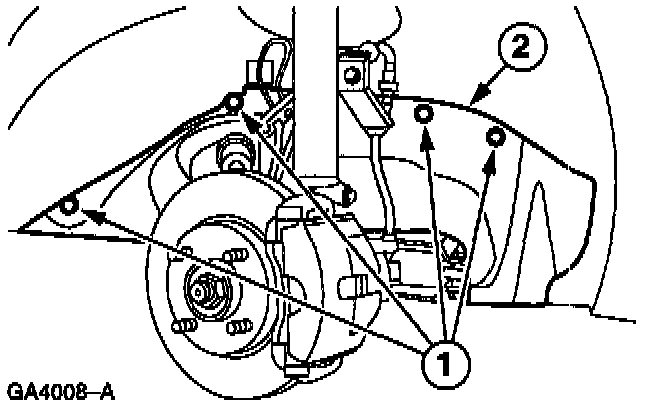

1 Position the splash shields.
2 Install the bolts.
