Main Bearing Journal Clearance

NOTE: Verify that the following stages are followed exactly. The crankshaft must be to specification.

1. General Information
- The bearing shells and journals must be free from engine oil and dirt.
- The measuring point should be near to the center.





2. Place on a length of Plastigage.
- Insert the associated bearing shells, without lubrication, into the cylinder block.
- Insert the crankshaft, without lubrication, into the cylinder block.

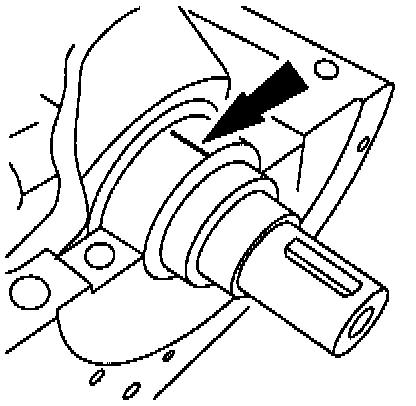

- Place a strip of plastigage, equal to the width of the bearing, on the bearing journal.

3, Carry out the measurement.
- One bearing cap at a time should be worked on; fit the bearing cap of the bearing position to be measured and tighten it to the specified torque.
- Remove the bearing cap.

NOTE:
- Measure each bearing separately.
- Do not hit the bearing cap.





4. Read off the measurement.

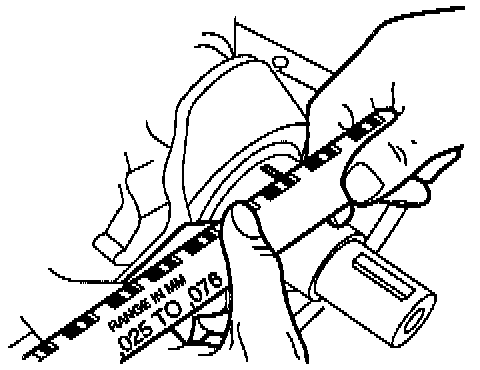

- Compare the length of Plastigage with the Plastigage scale.
- The value that is read off is the bearing clearance.
- If the measurement is out of the specified range, change the bearing shells and repeat the measurement.
