Crankshaft Bearing Journals

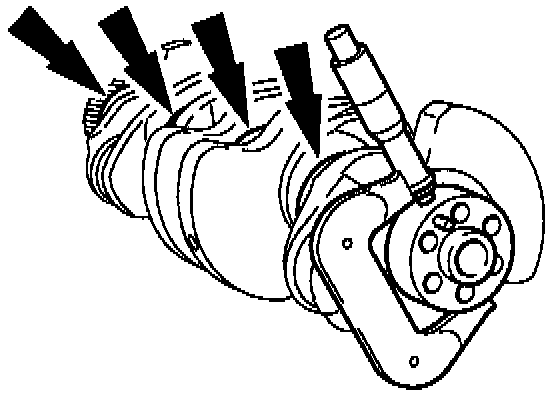

1. Determine the diameter of the main and rod bearing journals
- Using a micrometer repeat the measurement at 90° intervals to determine whether the journals are out-of-round.
- Measure at two different points on the journal to determine if there is any tapering.
