End Play

1. Measure the end play.

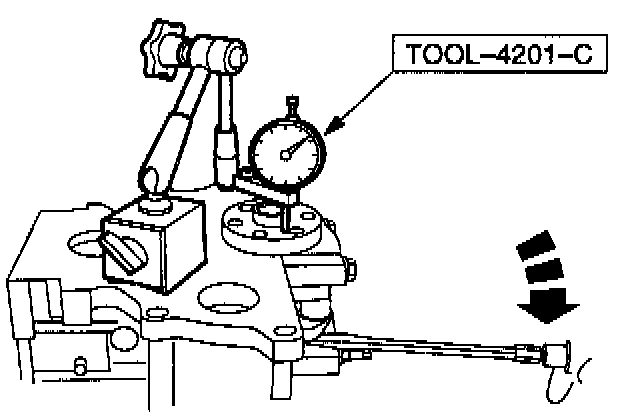

- Fit the dial indicator with bracket.
- Measure the end play by lifting the crankshaft using a lever.
- If the value is outside specification, use new thrust half rings to take up the end float and repeat the measurement.
