Fan Blade: Service and Repair

REMOVAL
1. Remove the battery.
2. Raise the vehicle.





3. Remove the radiator splash shield.





4. Disconnect the fan resistor electrical connector.
5. Lower the vehicle.





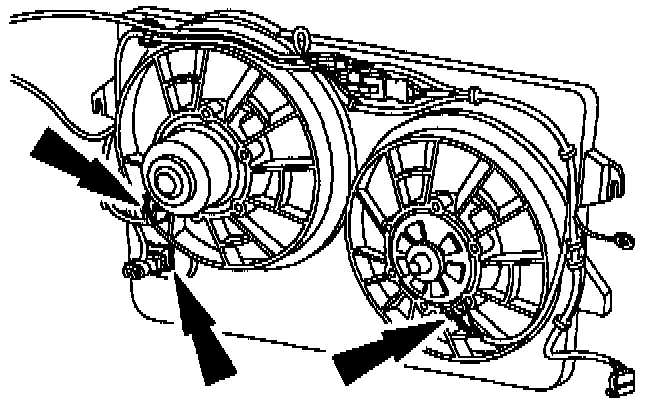

6. Disconnect the fan motor electrical connectors.





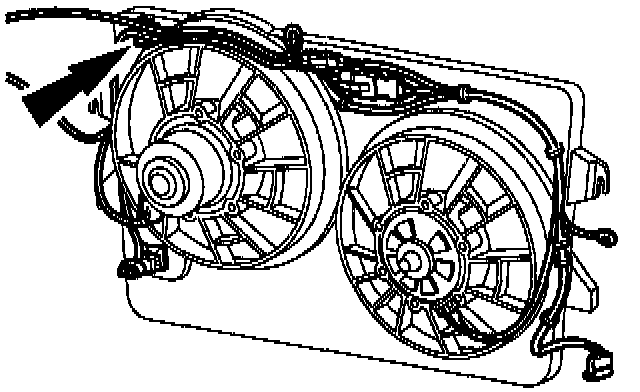

7. Remove the wiring harness from the fan shroud.





8. Remove the motor, fans and shroud assembly.

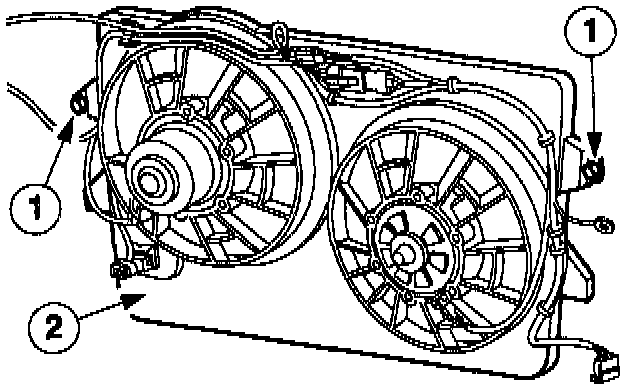

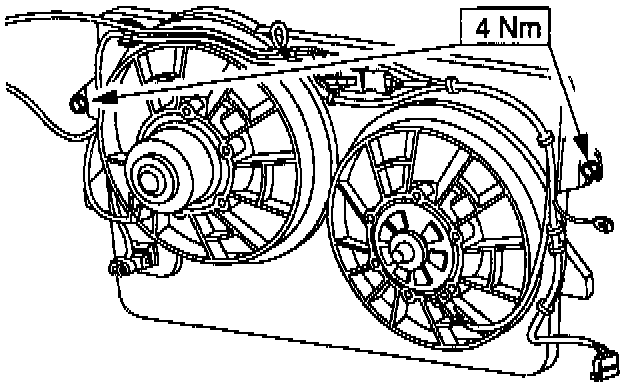

1 Remove the nuts.
2 Remove the assembly.

INSTALLATION





1. To install, reverse the removal procedure.
