Manual Transmission

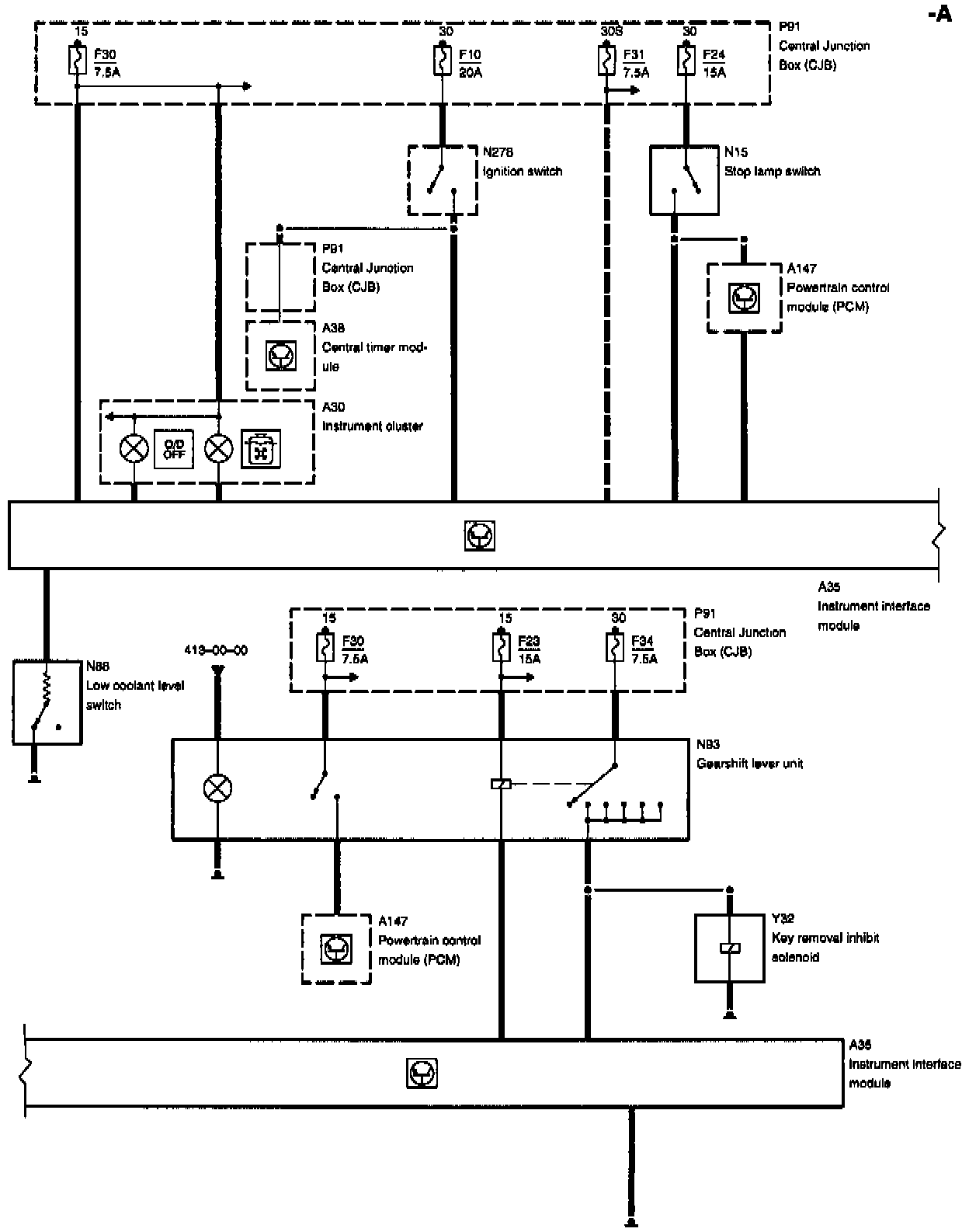

BLOCK DIAGRAM (SYSTEM OVERVIEW)Diagram: 418-00A-00-a:
Central Junction Box
Central Timer Module
Fuse F10
Fuse F23
Fuse F24
Fuse F30
Fuse F31
Fuse F34
Gearshift Lever Unit
Ignition Switch
Instrument Cluster
Instrument Interface Module
Key Removal Inhibit Solenoid
Low Coolant Level Switch
Powertrain Control Module
Stop Lamp Switch
DETAILED DIAGRAMS

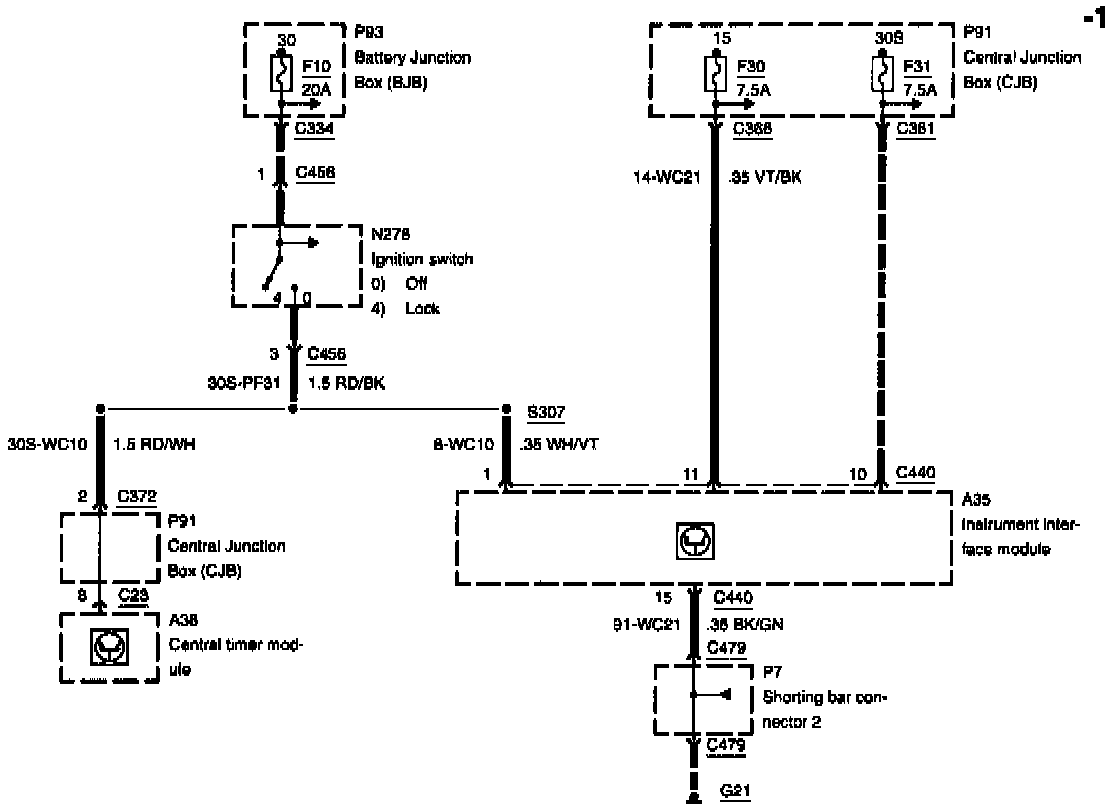

Diagram: 418-00A-00-1:
Battery Junction Box
Central Junction Box
Central Timer Module
Fuse F10
Fuse F30
Fuse F31
Instrument Interface Module
Shorting Bar Connector 2

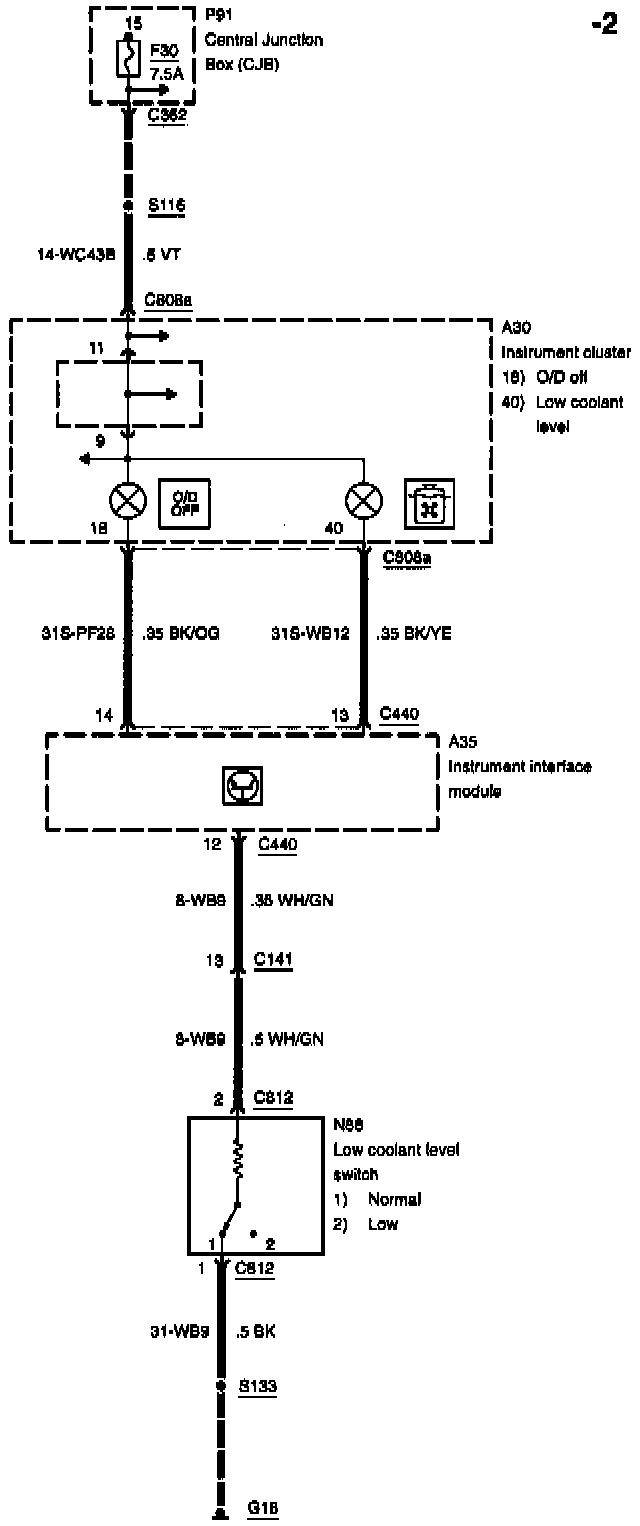

Diagram: 418-00A-00-2:
Central Junction Box
Fuse F30
Instrument Cluster
Instrument Interface Module
Low Coolant Level Switch

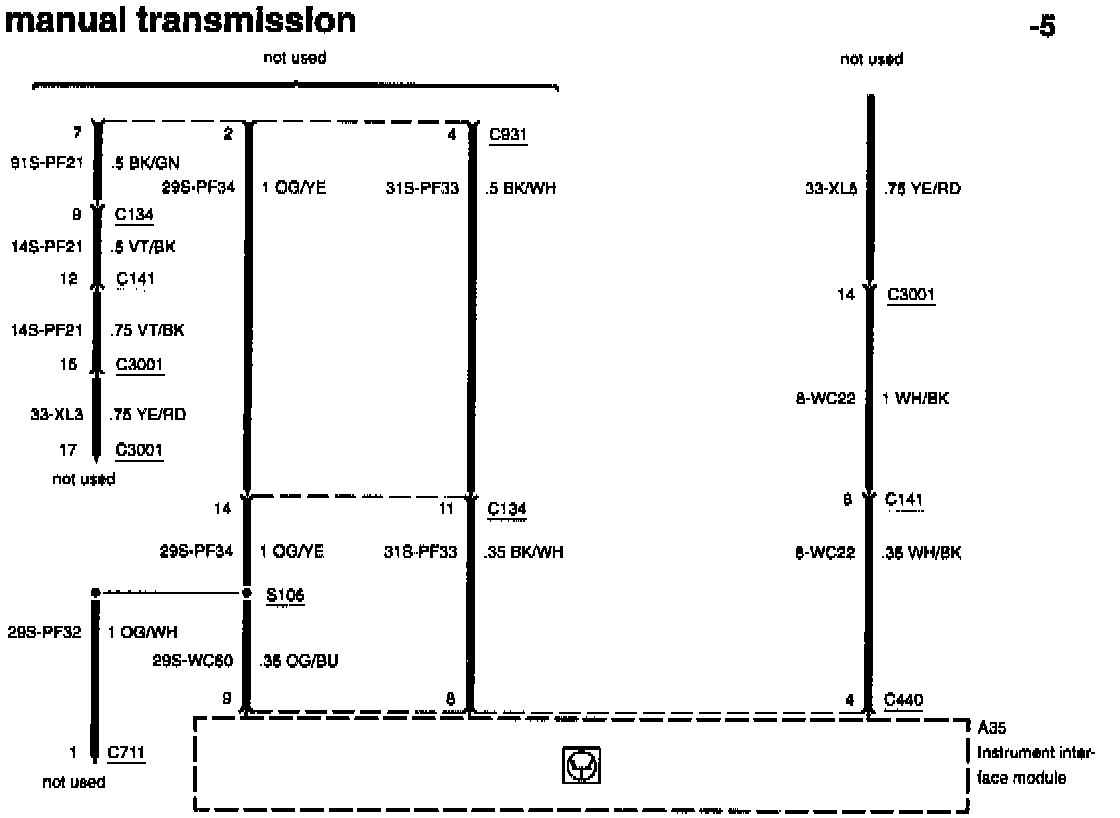

Diagram: 418-00A-00-5:
Instrument Interface Module

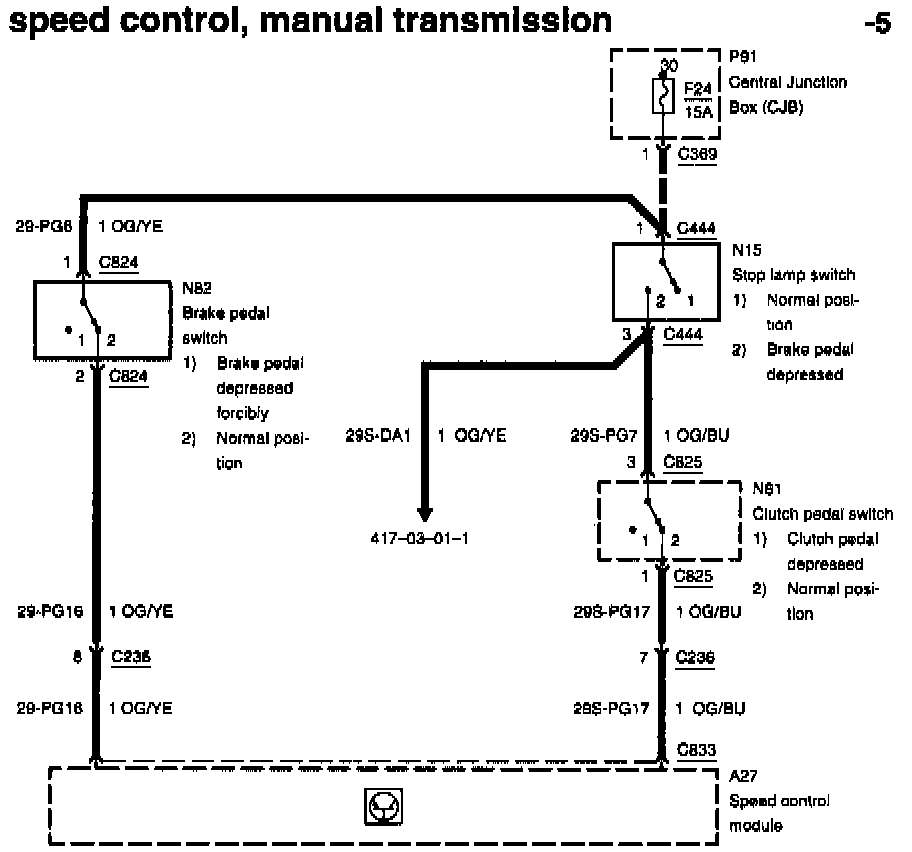

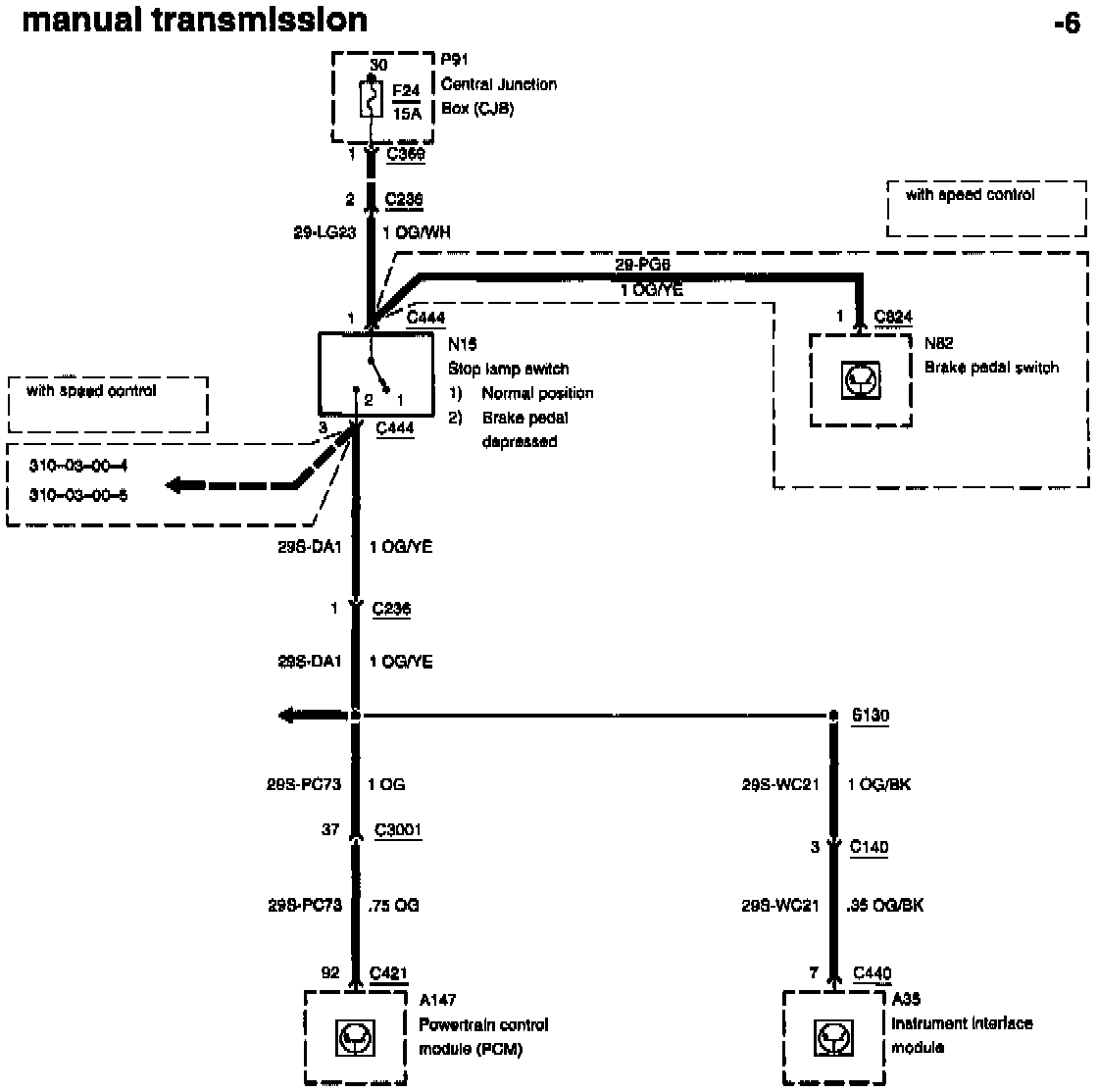

Diagram: 418-00A-00-6:
Brake Pedal Switch
Central Junction Box
Fuse F24
Instrument Interface Module
Powertrain Control Module
Stop Lamp Switch
RELATED DIAGRAMS
