Canadian Models Without Daytime Running Lamps

Diagram 700-02-00-7:

Battery Junction Box
Central Junction Box
Central Timer Module
Fuse F22
Fuse F30
Fuse F32
Ignition Relay Diode
Ignition Switch
Starter Relay
Starter Relay Diode

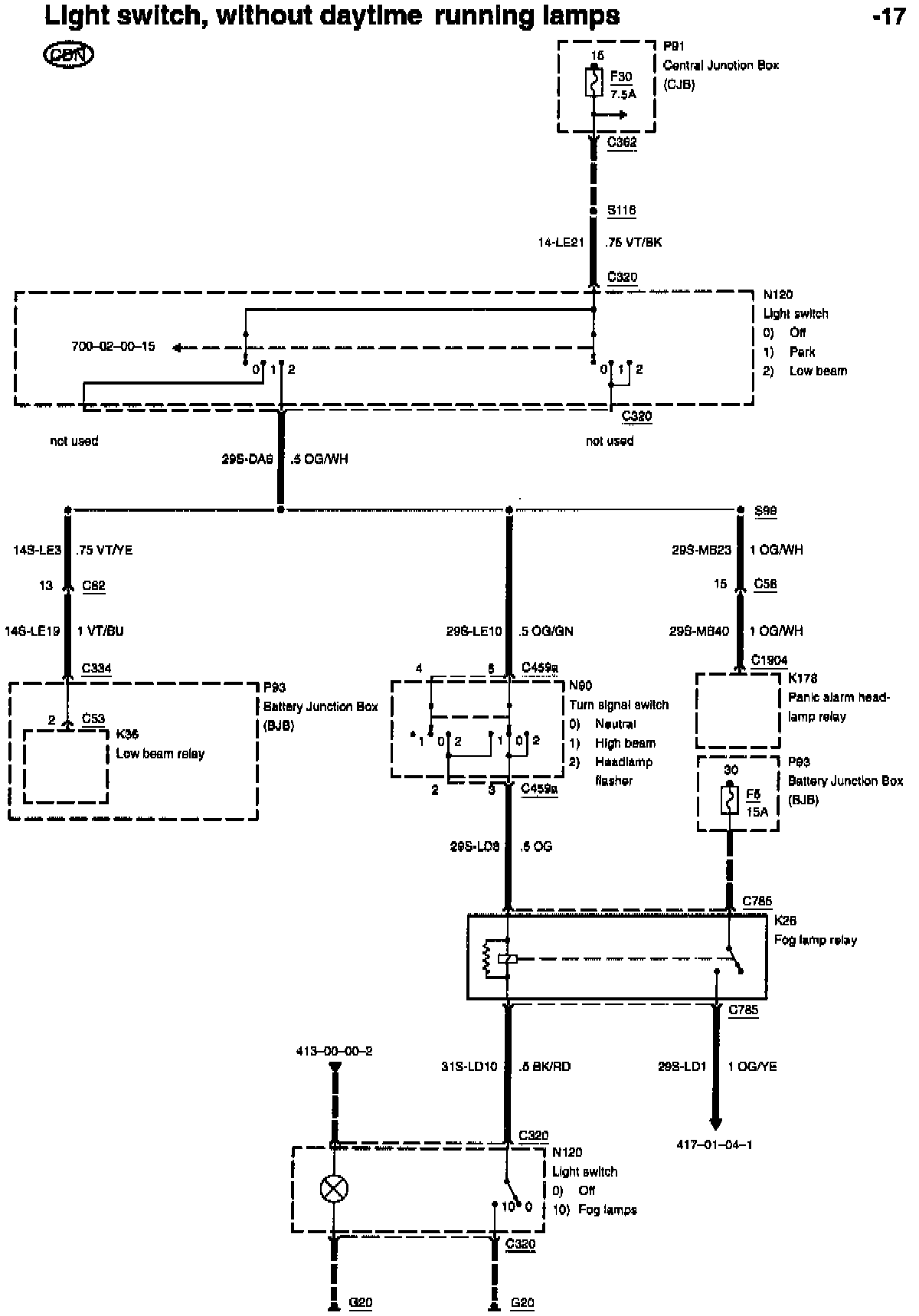

Diagram 700-02-00-17:

Battery Junction Box
Central Junction Box
Fog Lamp Relay
Fuse F5
Fuse F30
Light Switch
Low Beam Blocking Diode
Low Beam Relay
Panic Alarm Headlamp Relay
Turn Signal Switch
