Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Fuse Circuits >> F23 >> Without Daytime Running Lamps >> Lower Option Content

Lower Option Content

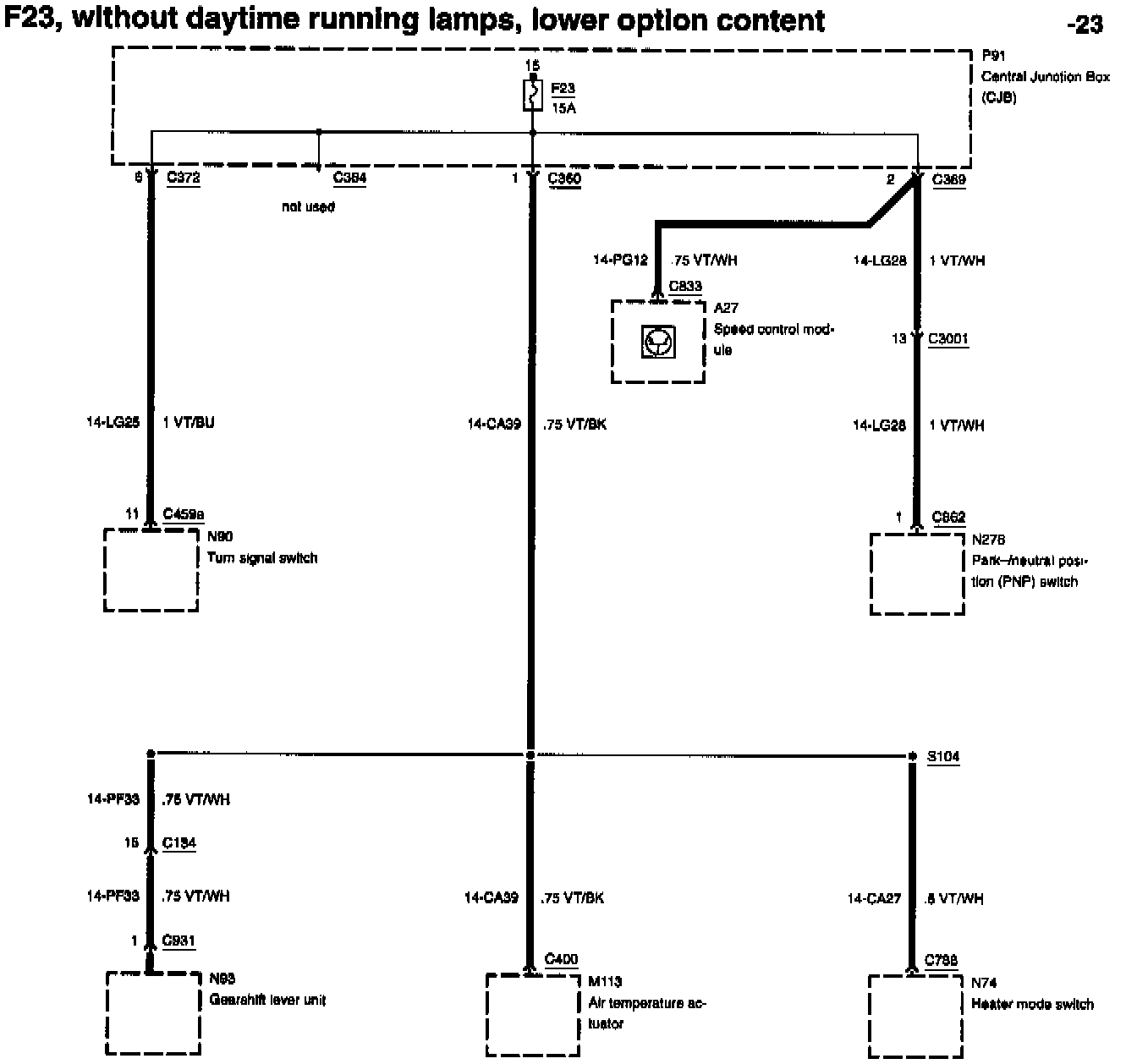

Diagram 700-03-00-23:





Diagram 700-02-00-5:





Diagram 700-02-00-1:
