With Manual Transmission

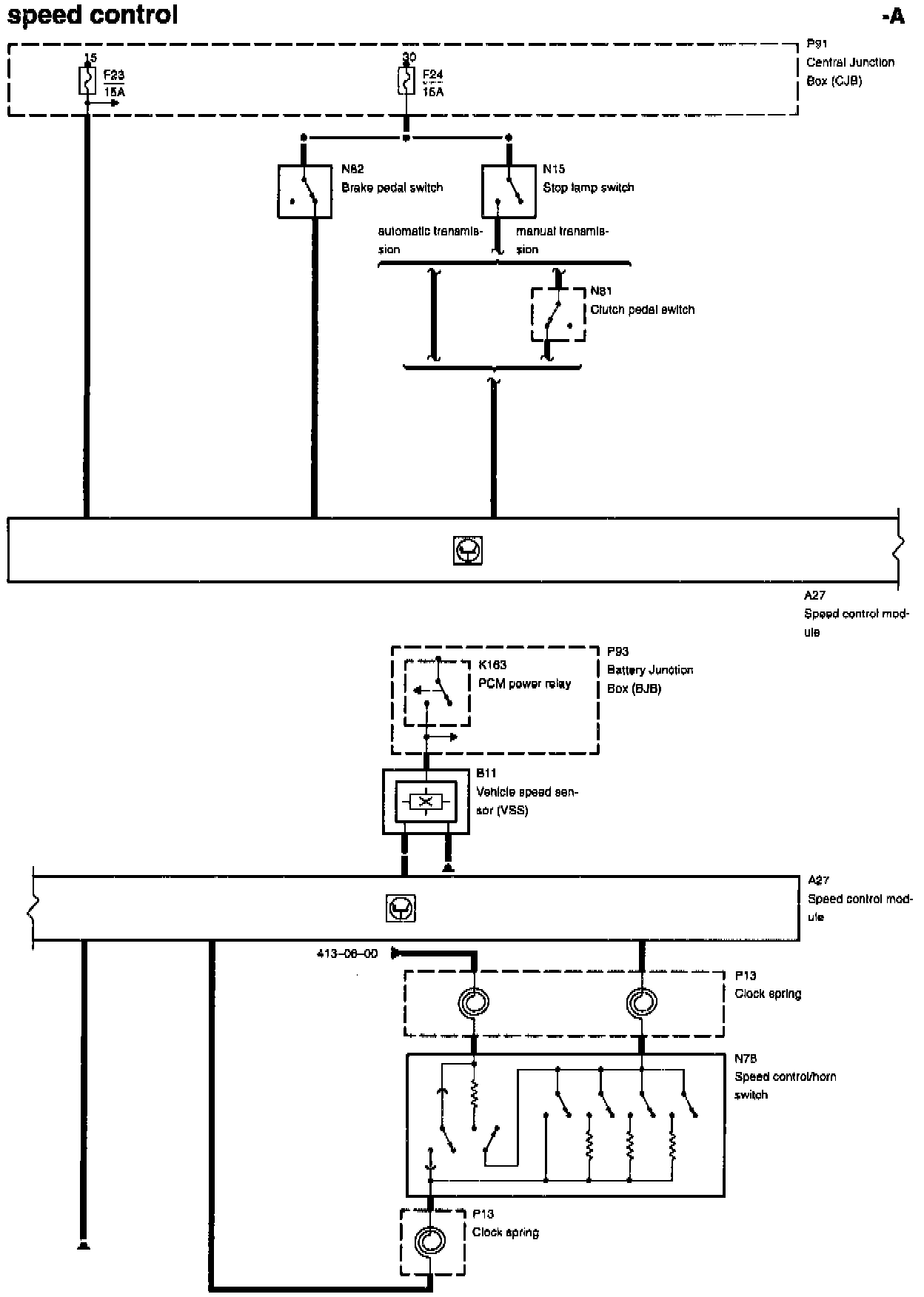

BLOCK DIAGRAM (SYSTEM OVERVIEW)

Diagram: 310-03-00-a:

Battery Junction Box
Brake Pedal Switch
Central Junction Box
Clock Spring
Clutch Pedal Switch
Fuse F23
Fuse F24
PCM Power Relay
Speed Control/Horn Switch
Speed Control Module
Stop Lamp Switch
Vehicle Speed Sensor

DETAILED DIAGRAMS

Diagram: 310-03-00-1:

Battery Junction Box
Fuse F4
Fuse F9
Instrument Cluster
PCM Power Relay
Powertrain Control Module
Vehicle Speed Sensor

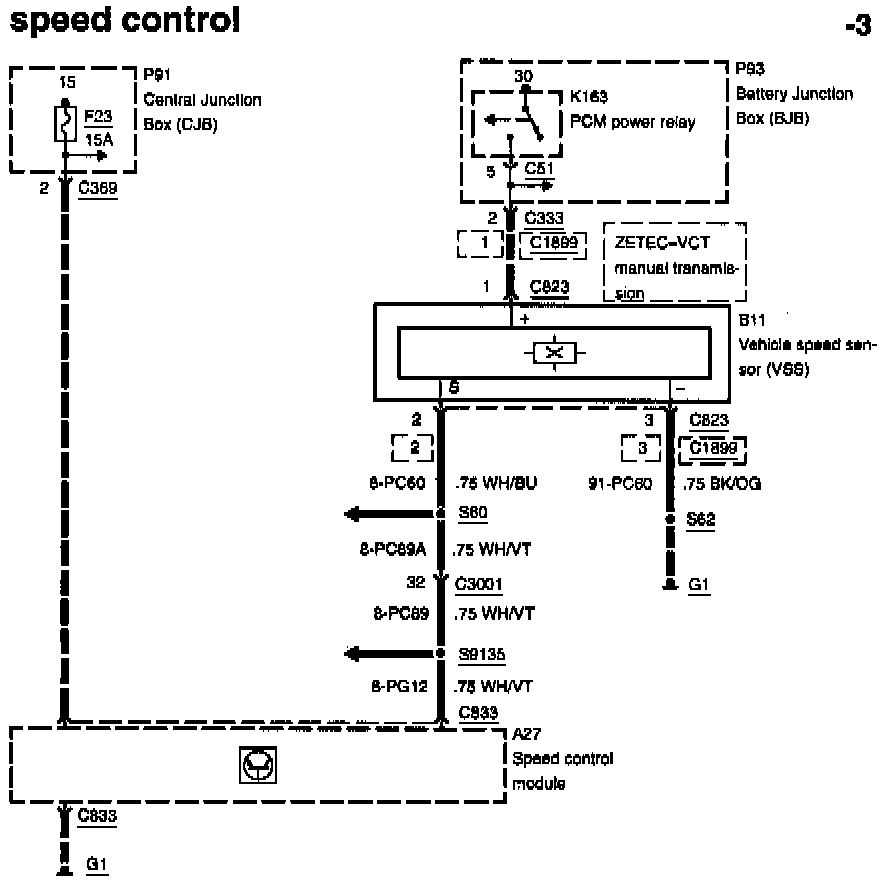

Diagram: 310-03-00-3:

Battery Junction Box
Central Junction Box
Fuse F23
PCM Power Relay
Speed Control Module
Vehicle Speed Sensor

Diagram: 310-03-00-5:

Brake Pedal Switch
Central Junction Box
Clutch Pedal Switch
Fuse F24
Speed Control Module
Stop Lamp Switch

Diagram: 310-03-00-6:

Clock Spring
Speed Control/Horn Switch
Speed Control Module
