External Controls/Shift Interlock

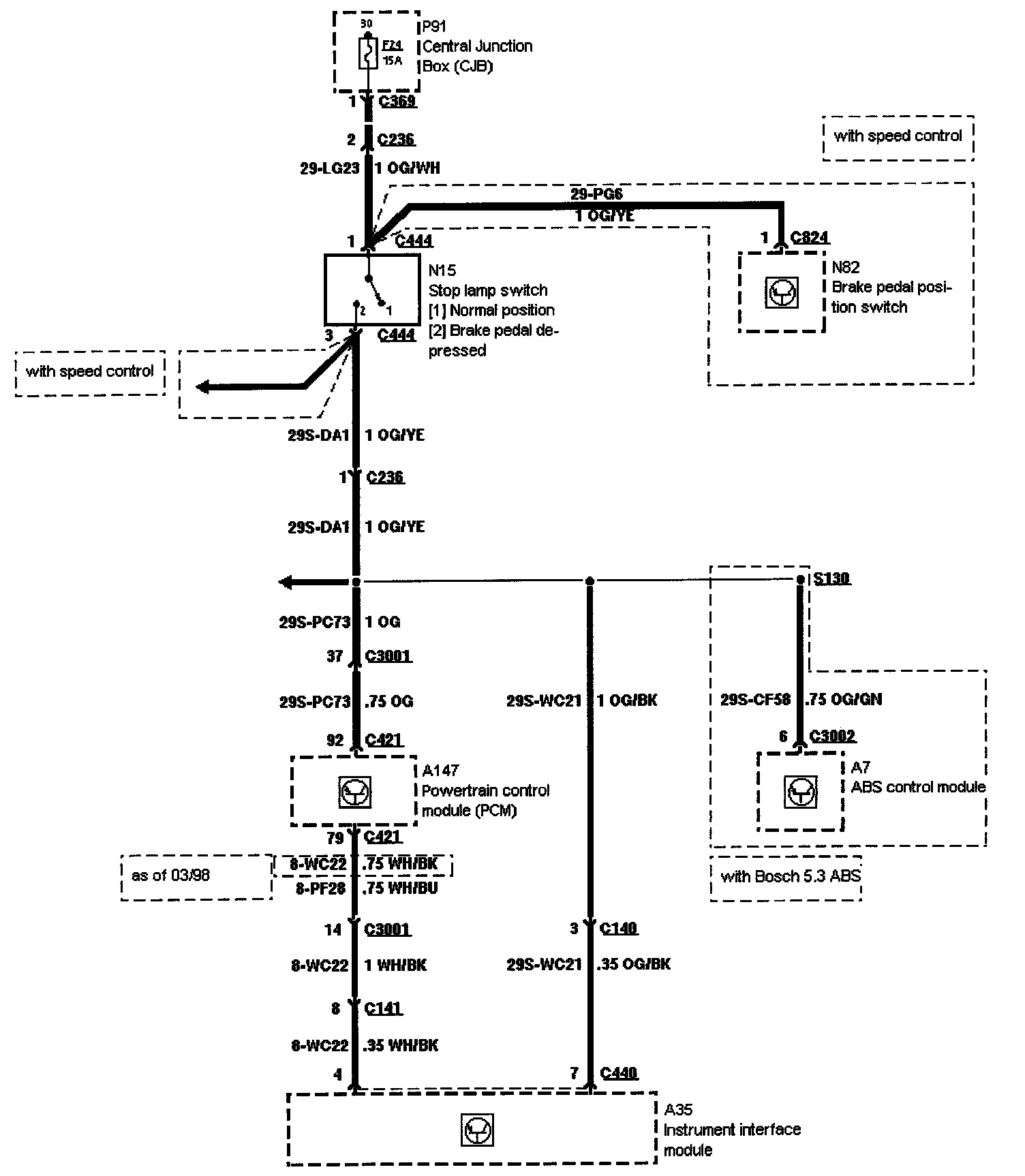

Instrument Interface Control Module Communications Network (Automatic Transmission):





Instrument Interface Control Module Communications Network (Before 03/98 Automatic Transmission):





Instrument Interface Control Module Communications Network (As Of 03/98 Automatic Transmission):
