Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> E - Pedal Goes Down Slowly

E - Pedal Goes Down Slowly

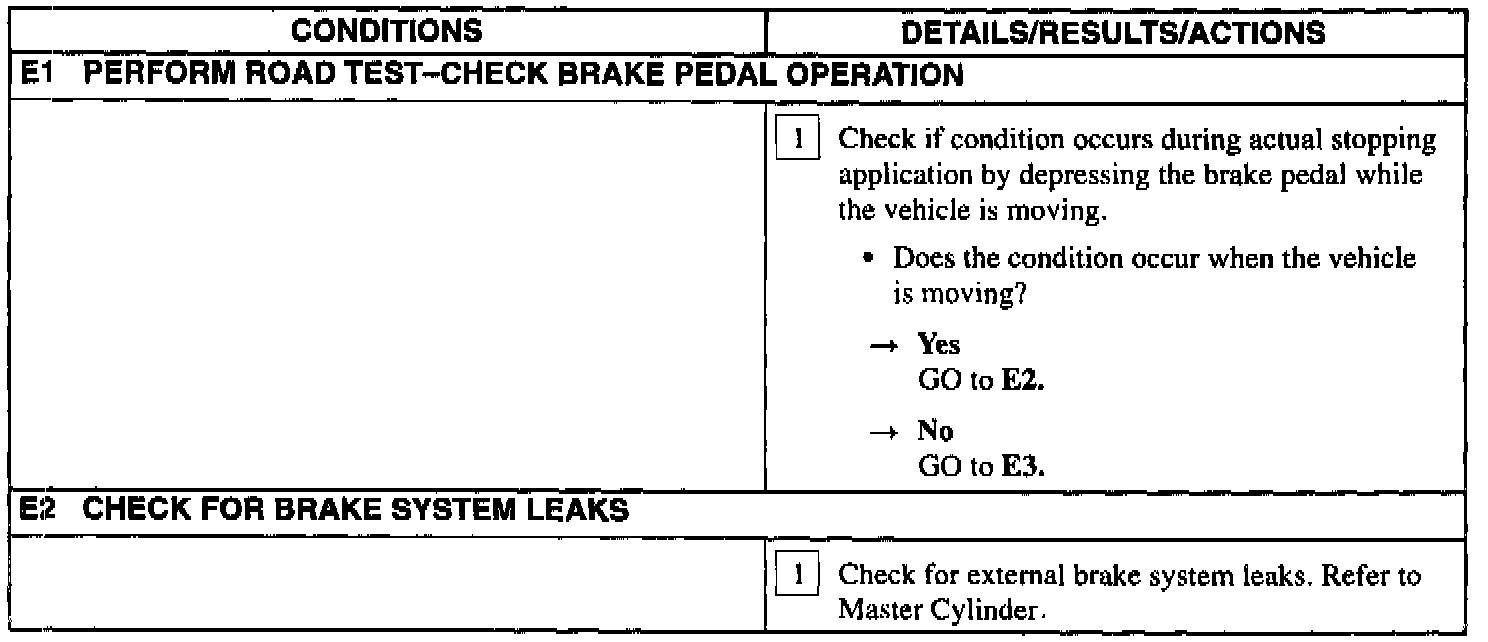

Test E1 - E2:

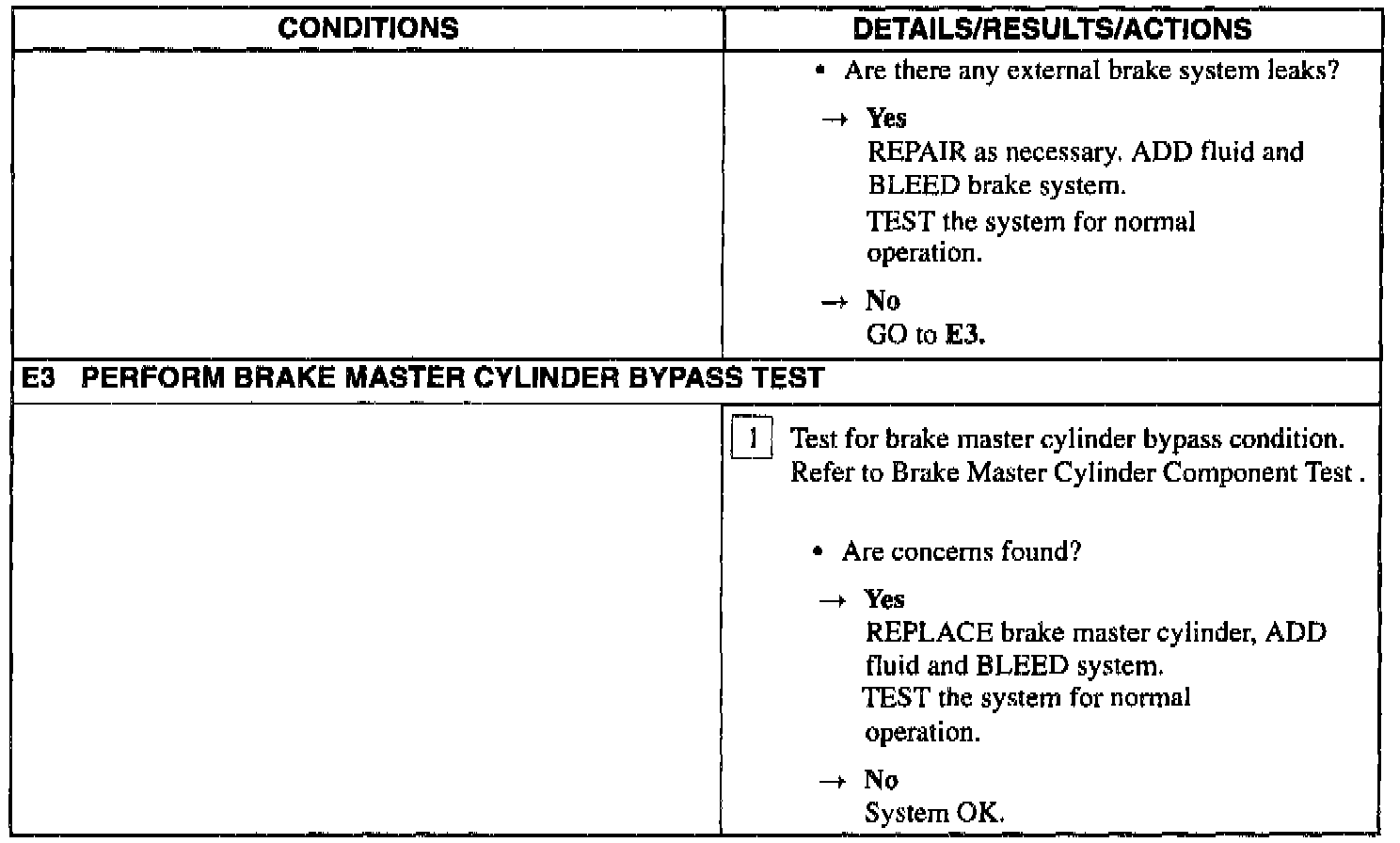

Test E2 - E3:
