With Rear Drum Brakes

REMOVAL
1. Release the parking brake.
2. Loosen the wheel nuts.
3. Raise and support the vehicle.
4. Detach the exhaust pipe from its hangers.

CAUTION: Support the exhaust pipe.





5. Remove the rear section of the exhaust system heat shield.





6. Remove the center section of the exhaust system heat shield.





7. Detach the rear cables from the equalizer.
8. Remove the wheel.

9. Remove the rear brake shoes.

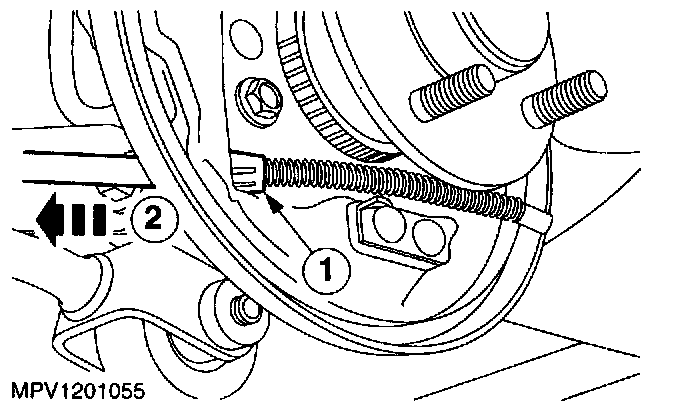

10. Detach the rear cable from the backing plate.
1 Depress the retaining clip.
2 Detach the cable and conduit.





11. Remove the rear cable from the body clips.

INSTALLATION
1. To set the preload of the parking brake control self-adjust mechanism, lift the parking brake control lever to the fully raised position.





2. To install, reverse the removal procedure.
