With Manual Transmission

REMOVAL

CAUTION: If brake fluid is spilled on the paint, the affected area must be immediately washed down with cold water.





1. Remove the reservoir filler cap.
1 Disconnect the low fluid level warning indicator switch electrical connector.
2 Remove the cap.

CAUTION: Make sure the filler cap does not become contaminated.





2. Using a suitable suction device drain the reservoir.

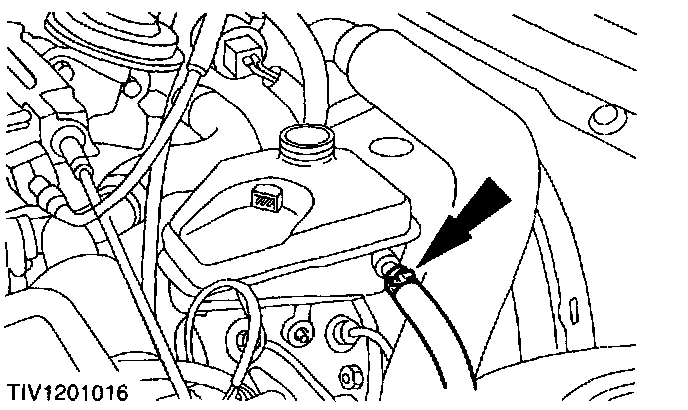

3. Disconnect the clutch feed hose.





4. Remove the master cylinder.
- Remove the two retaining nuts.

CAUTION: Release the brake booster vacuum by removing the vacuum hose.





5. Remove the reservoir from the master cylinder.
- Detach the two retaining clips.

6. Remove and discard the O-ring seals.

INSTALLATION









1. To install, reverse the removal procedure.

CAUTION: Before installing the master cylinder ensure that the vacuum seal is in place and that the mating faces are clean.

2. Bleed the brake system.
