With Automatic Transmission

REMOVAL

CAUTION:
- If brake fluid is spilled on the paint, the affected area must be immediately washed down with cold water.
- Disconnect the battery ground cable.





1. Remove the reservoir filler cap.
1 Disconnect the low fluid level warning indicator switch electrical connector.
2 Remove the cap.

NOTE: Make sure the filler cap does not become contaminated.





2. Using a suitable suction device drain the master cylinder reservoir.

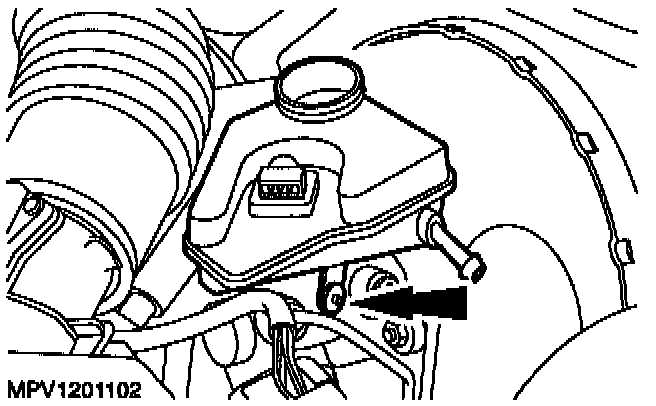

3. Remove the brake fluid reservoir.
- Detach the two retaining clips

INSTALLATION
1. To install, reverse the removal procedure.
2. Bleed the brake system.
