Rear

REMOVAL
1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

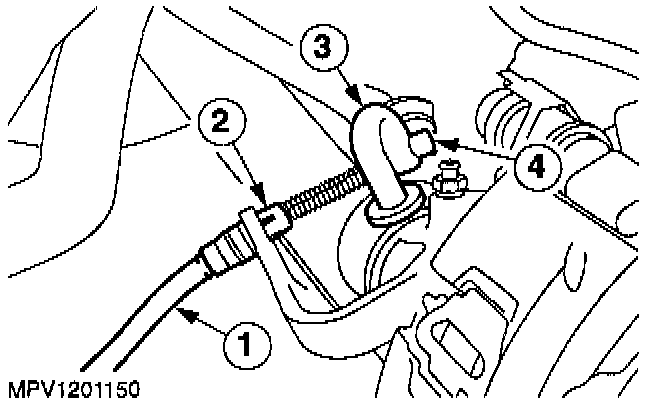

4. Disconnect the parking brake cable.
1 Pull back the parking brake lever.
2 Disconnect the cable from the lever.
3 Disconnect the conduit retaining clips.
4 Disconnect the cable and housing.

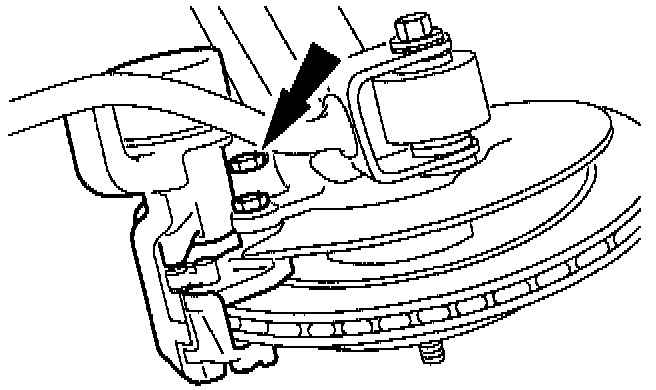

5. Remove the bolts and the caliper and anchor plate assembly.
- Secure the caliper and anchor plate assembly out of the way to prevent damage to the flexible brake hose.

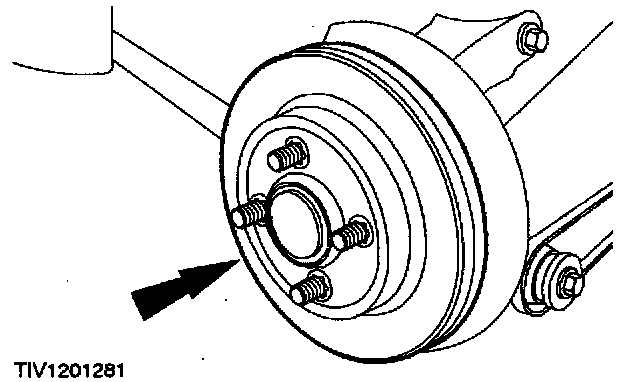

6. Remove the brake disc.
- Remove the retainers if equipped.

INSTALLATION





1. Install the brake disc.
- Install the retainers if equipped.





2. Install the caliper and anchor plate assembly.

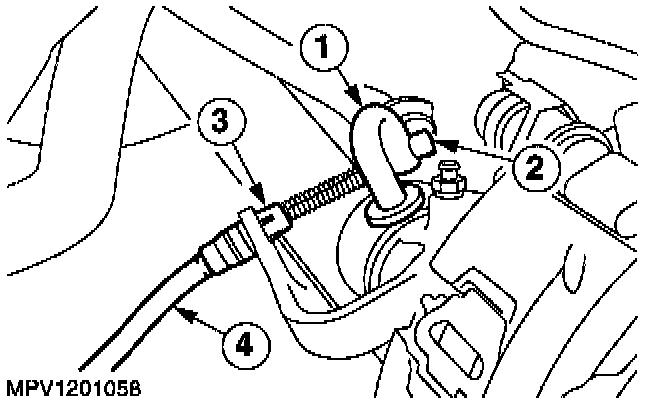

3. Install the parking brake cable.
1 Install the cable and housing.
2 Secure the cable retaining clips.
3 Pull back the parking brake lever.
4 Install the cable to the parking brake lever.





4. Install the wheel.
