Front

REMOVAL
1. Loosen the wheel nuts.
2. Raise ends support the vehicle.
3. Remove the wheel.

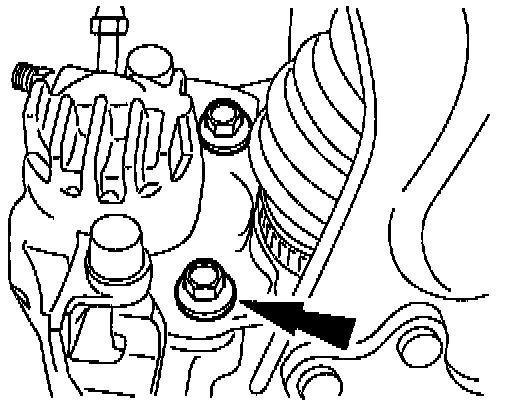

4. Detach the caliper and anchor plate.
- Secure the caliper and anchor plate assembly out of the way to prevent damage to the flexible brake hose.

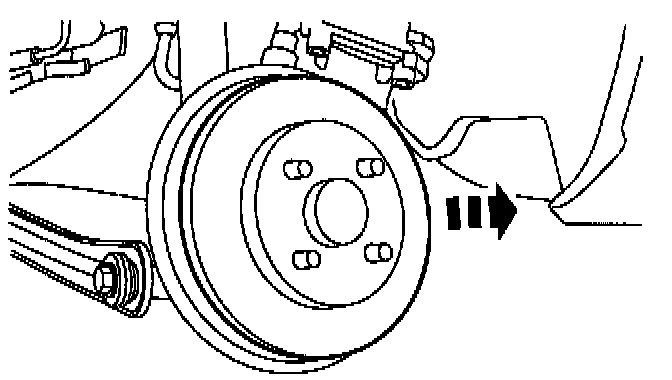

5. Remove the brake disc.
- Remove the retainers if equipped.

INSTALLATION

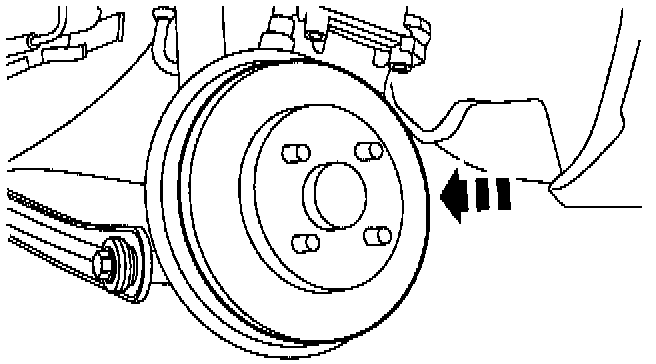

1. Install the brake disc.





2. Install the caliper and anchor bracket assembly.





3. Install the wheel.
