Lumbar Support Pad

REMOVAL
1. Remove the front seats.







2. Remove the backrest adjust handle.
1 Remove the metal clip.
2 Remove the handle.







3. Remove the side trim panel.
1 Remove the screw.
2 Remove the trim panel.







4. Remove the adjuster.







5. Detach the backrest.
^ Remove the four screws.







6. Unclip the retaining strips.







7. Remove the seatback trim cover tie wires.

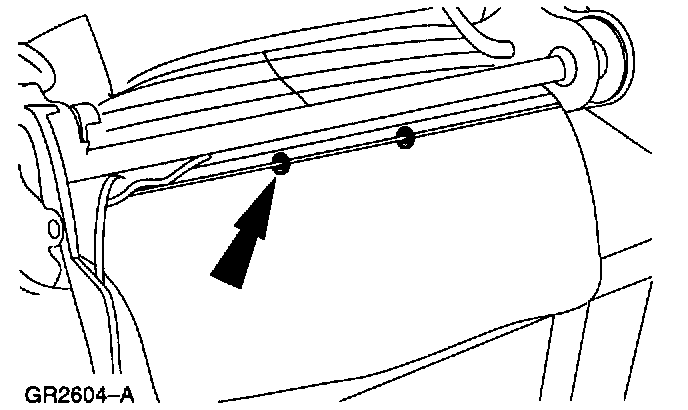

8. Remove the hog rings.







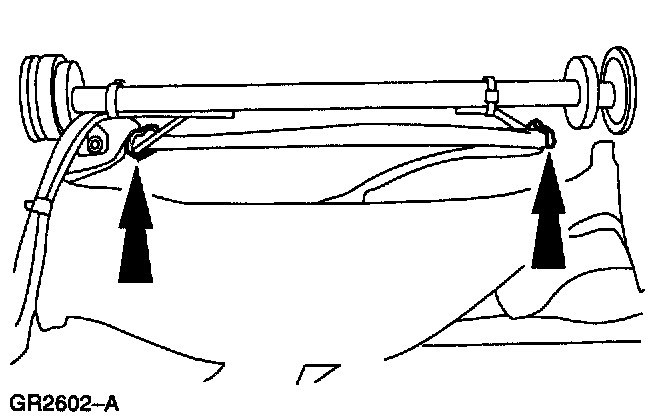

9. Remove the tie straps.







10. Remove the lumbar support hog rings.







11. Unhook the lumbar support from the flexilator.







12. Remove the lumbar support assembly.
1 Separate the lumbar support pump motor from the seatback frame.
2 Remove the lumbar support assembly.

INSTALLATION
1. To install, reverse the removal procedure.
