Roof Sliding Panel Opening Shield

REMOVAL
1. Remove the roof panel.
2. Slide the opening shield to the closed position.

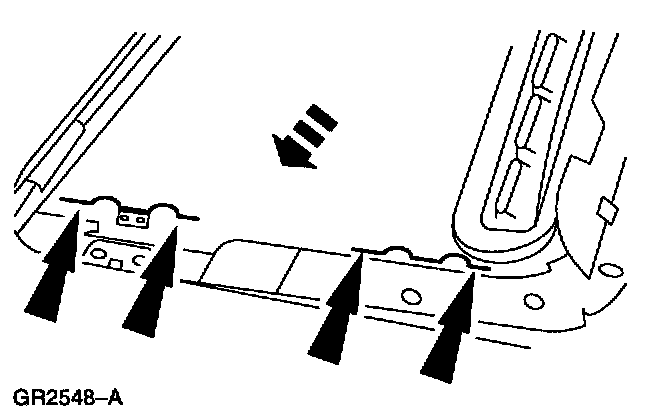

3. Depress the metal retaining tabs and slide the opening shield from its track.

NOTE: Metal retaining tabs can be depressed from either side.

INSTALLATION
1. To install reverse the removal procedure.
