Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Heated Mirrors

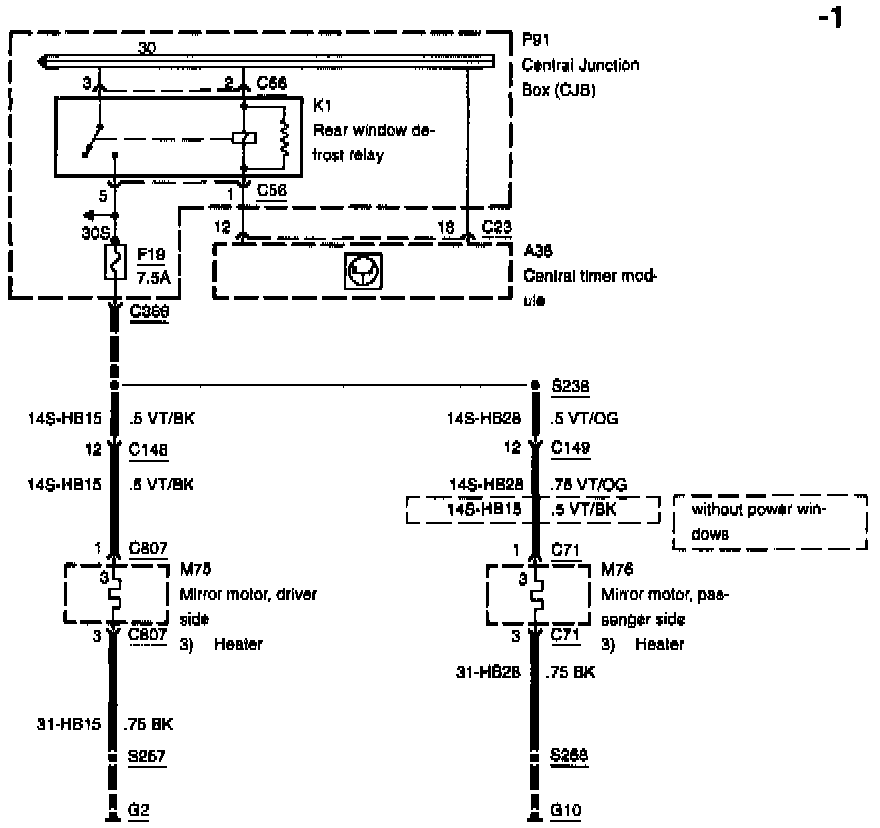

Heated Mirrors

Diagram: 501-09-00-1:
