Actuator - Door Lock, Front

REMOVAL
1. Remove the front door latch.

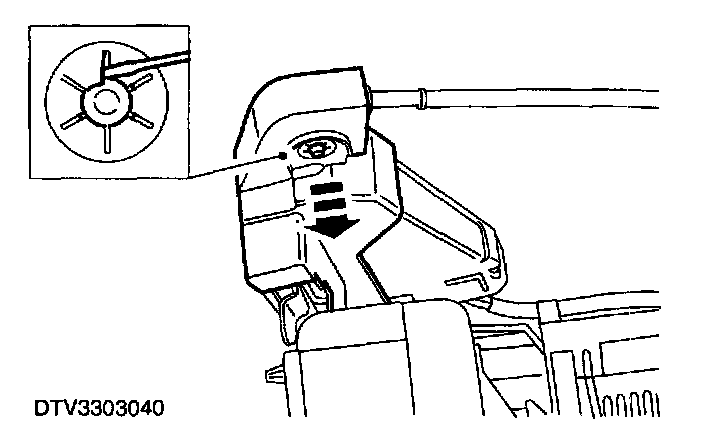

2. Remove the actuator shield.
- Pry the shield from the post.

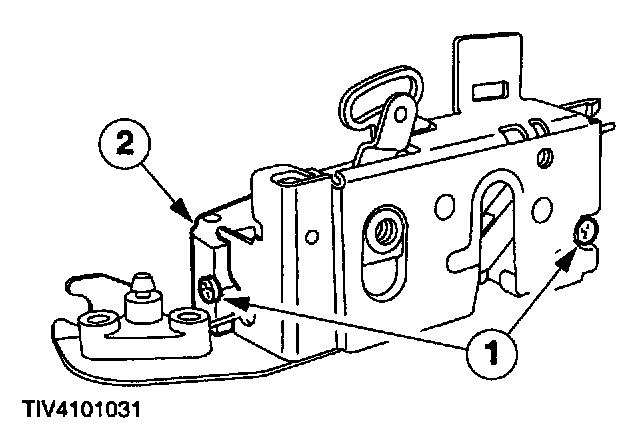

3. Remove the actuator.
1 Remove the two actuator retaining screws.
2 Remove the actuator.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Make sure that the power door lock actuator mechanism is aligned with the latch.
