Overhead Console

REMOVAL







1. Disconnect the battery ground cable.

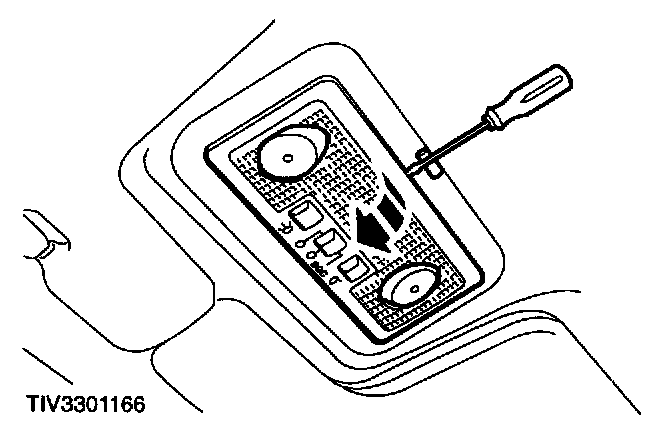

2. Pry out the interior lamp assembly.

NOTE: Remove the lamp assembly as a unit.

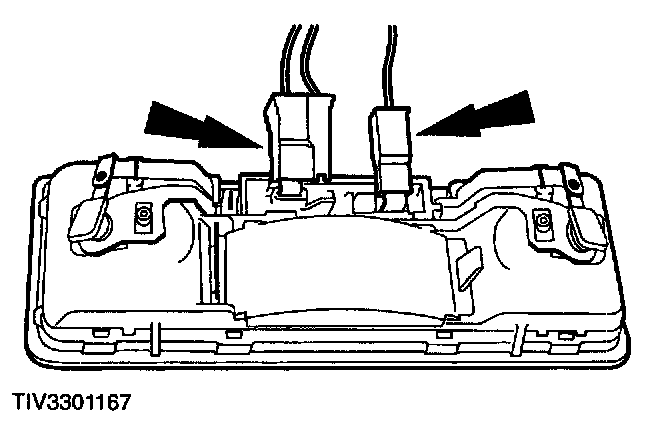

3. Disconnect the interior lamp assembly electrical connectors.

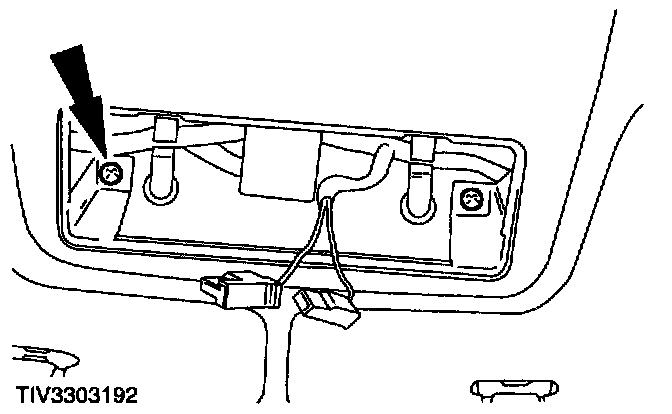

4. Remove the overhead console retaining screws.

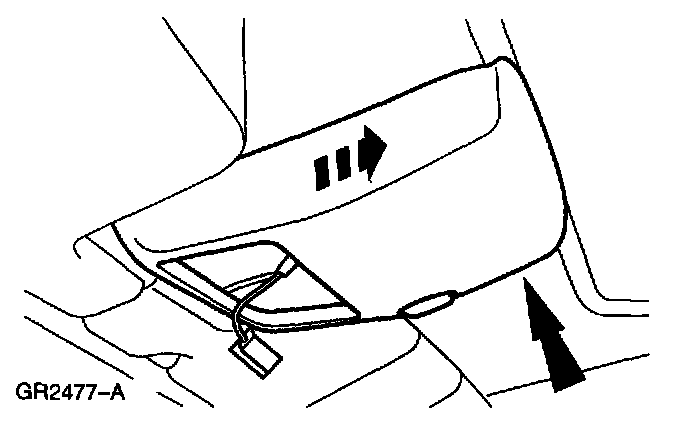

5. Remove the overhead console.
^ Slide the console back to disengage it from the clips.

INSTALLATION
1. To install, reverse the removal procedure.
