Floor, Manual

REMOVAL

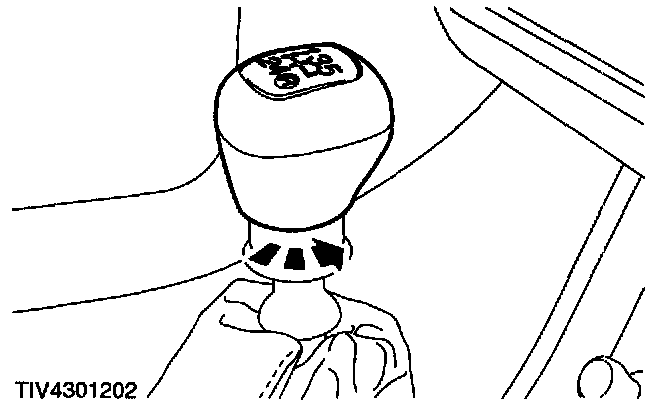

1. Remove the shift handle.

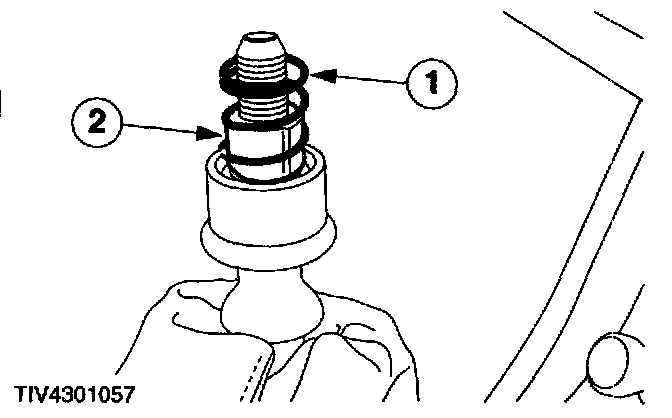

2. Remove the reverse selector.
1 Remove the spring.
2 Remove the spacer.







3. Remove the shift lever boot.







4. Remove the console (rear section) rear screws.







5. Disengage the locating pegs.

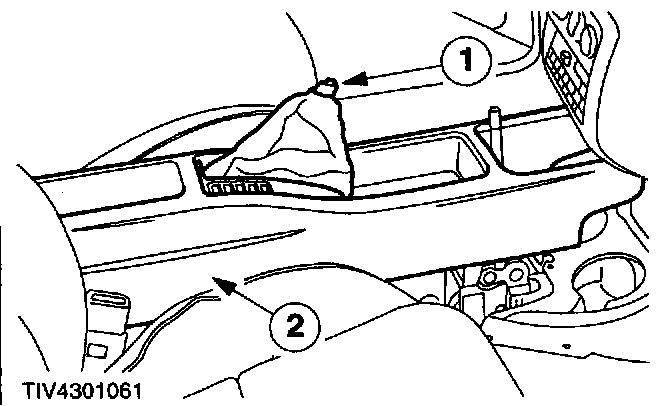

6. Remove the console (rear section).
1 Fully raise the parking brake control lever.
2 Remove the console.

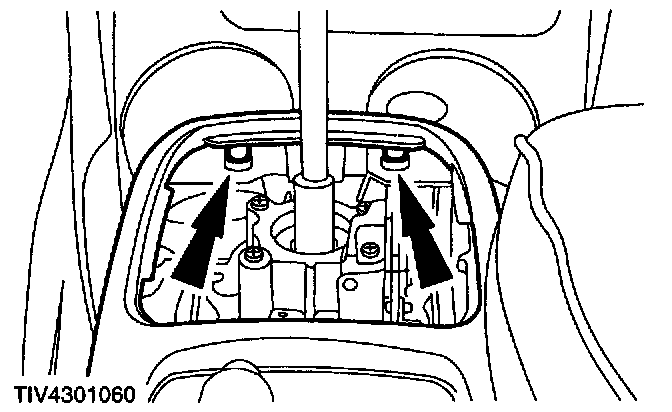

7. Remove the four console (front section) retaining screws.

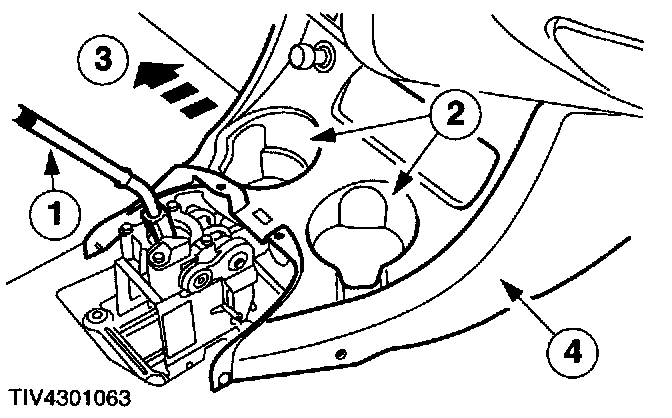

8. Disconnect the console (front section).
1 Engage 2nd or 4th gear.
2 Lift out the holders.
3 Slide the console to the left-hand side to disengage.
4 Raise the console.

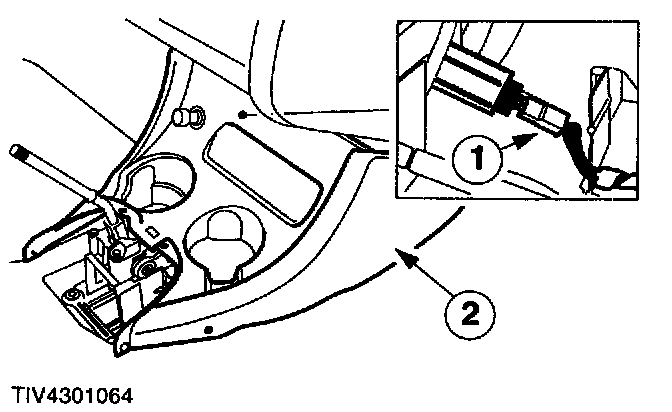

9. Remove the console (front section).
1 Disconnect the cigar lighter electrical connector.
2 Remove the console.

INSTALLATION
1. To install, reverse the removal procedure.
