Floor, Automatic

REMOVAL

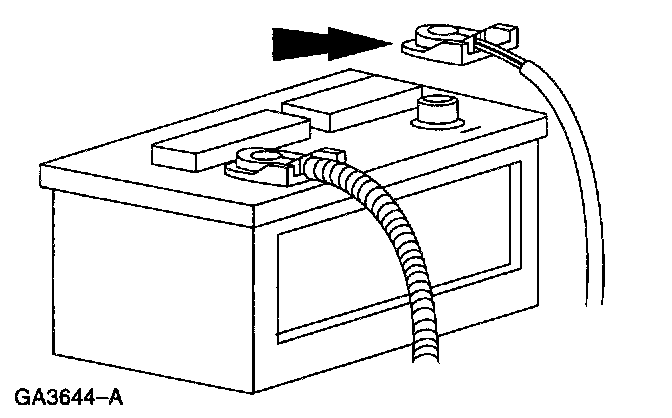

1. Disconnect the battery ground cable.

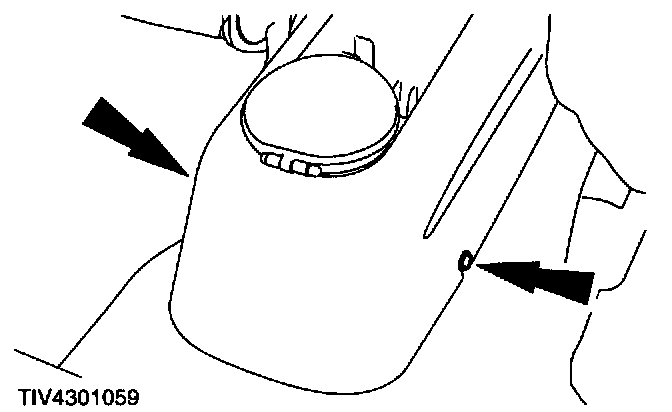

2. Remove the rear floor console retaining screws.
^ Position the front seats to gain access.

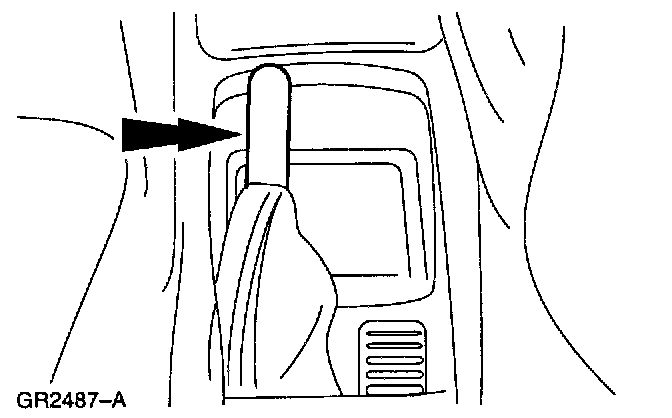

3. Fully apply the parking brake lever.

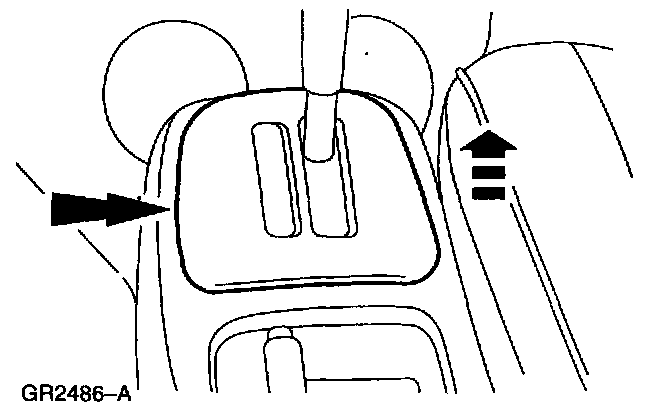

4. Pry up the shift indicator selector bezel.

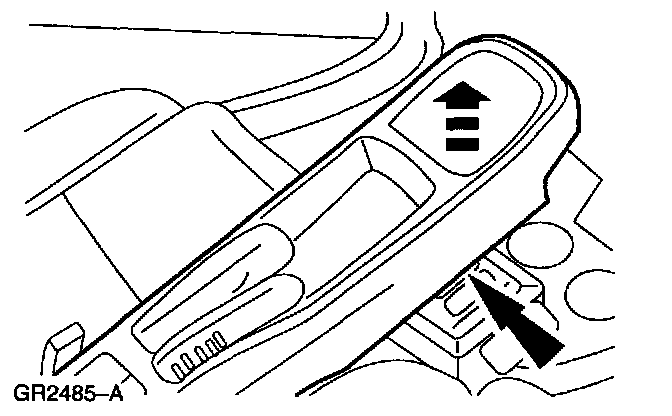

5. Raise and remove the rear floor console.
^ Position the shift indicator bezel.

NOTE: The rear floor console must be raised up to disengage the front retaining clips.

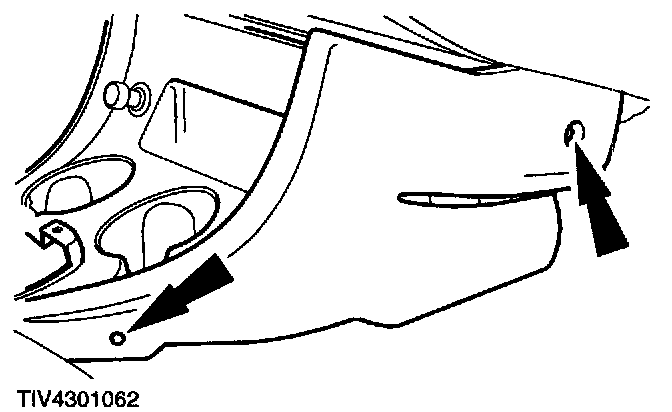

6. Remove the four front floor console retaining screws.







7. Partially remove the front floor console.

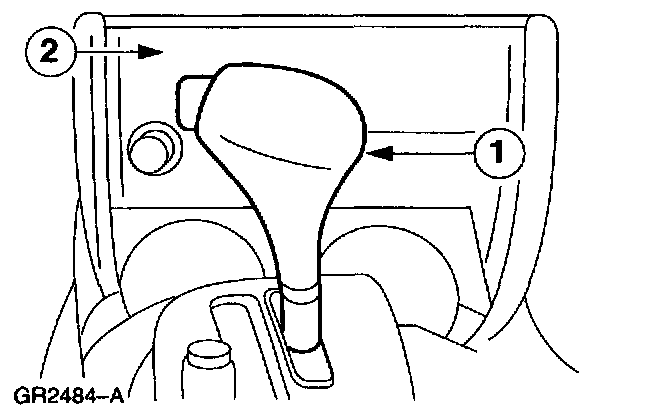

1 Position the gearshift lever in the 1 position.
2 Partially remove the front floor console.







8. Disconnect the lighter electrical connections and remove the front center console.

INSTALLATION
1. To install, reverse the removal procedure.
