B: Noisy Reception

B1 - B2:






B3:

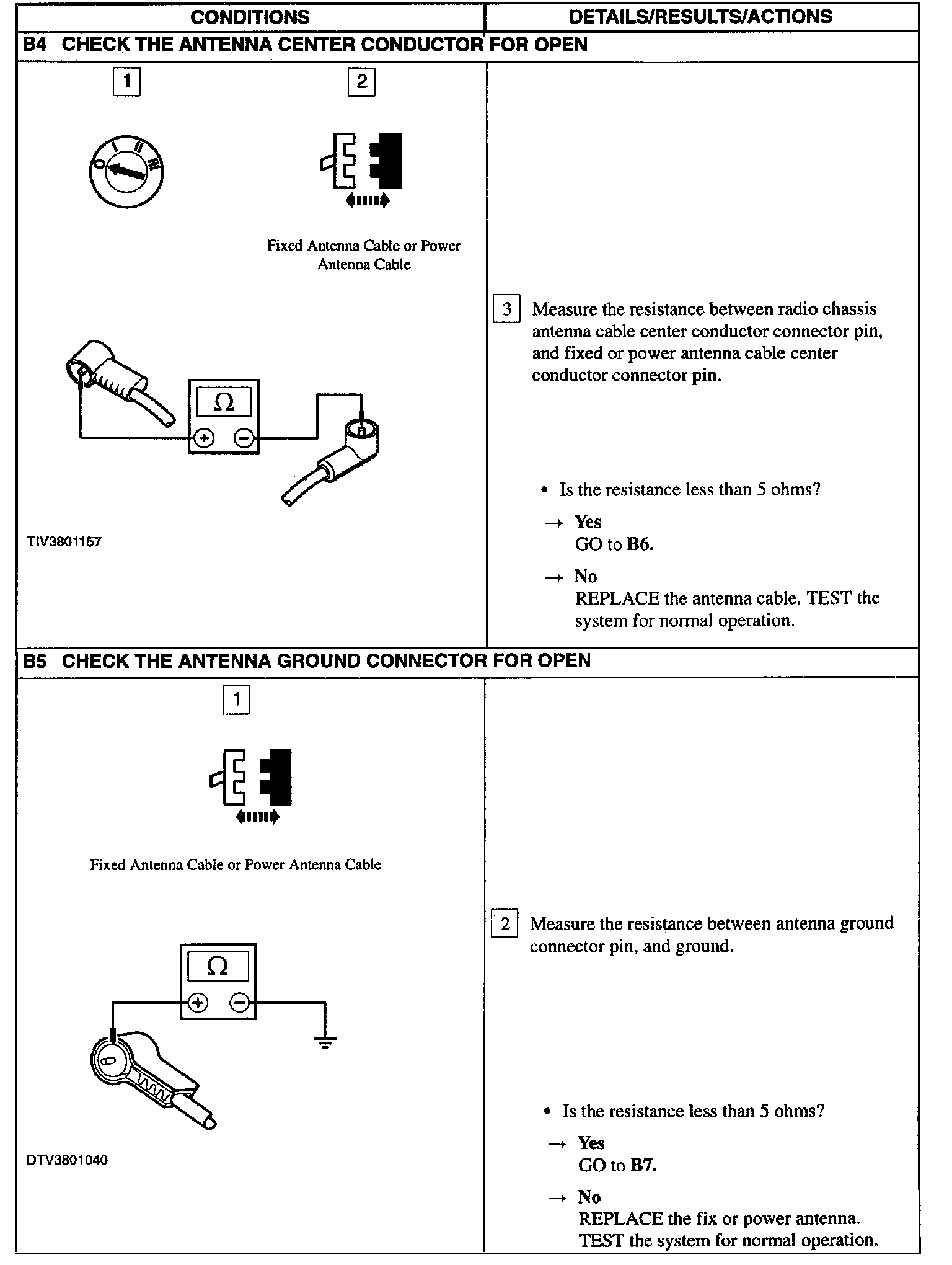

B4 - B5:

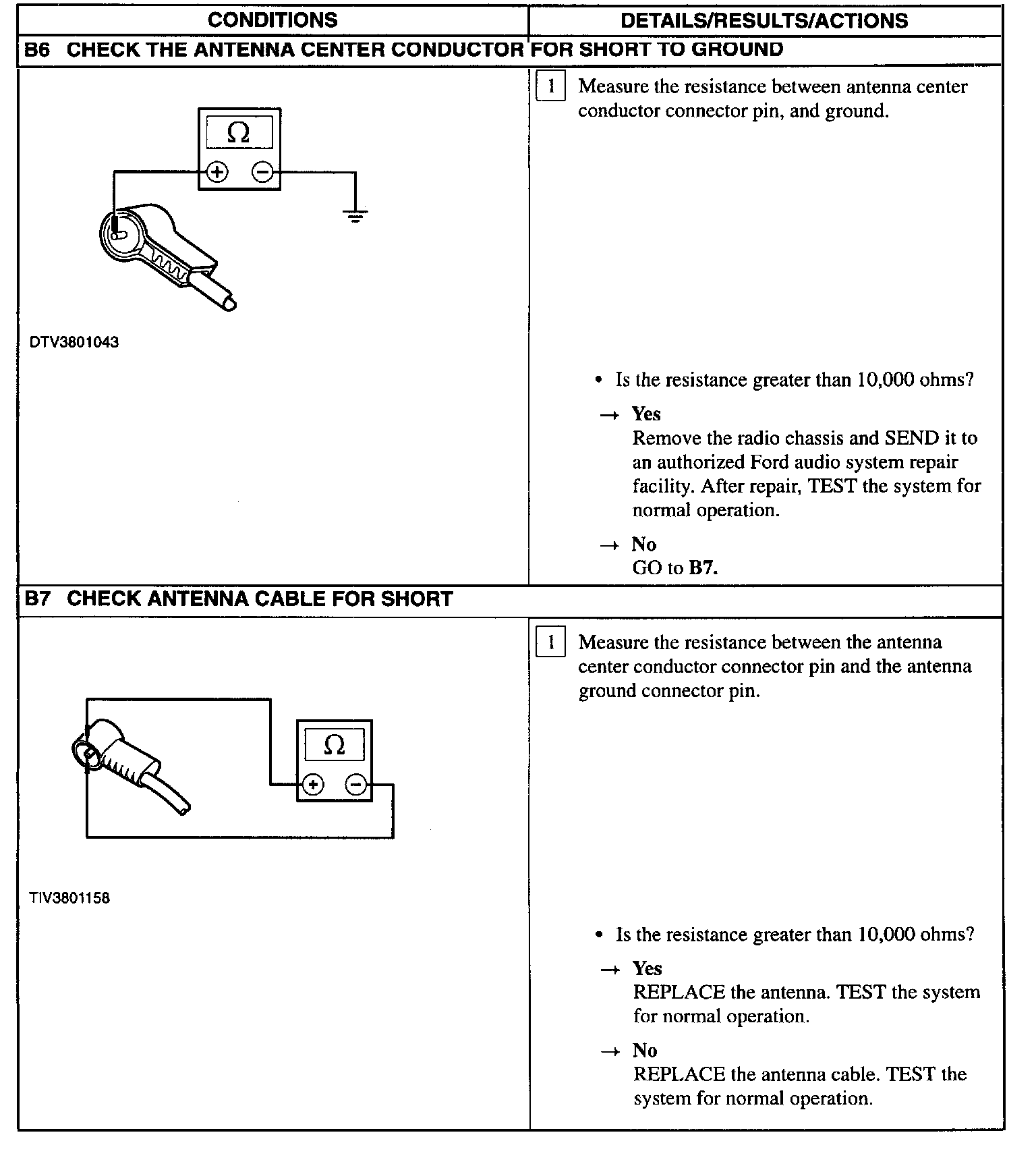

B6 - B7:

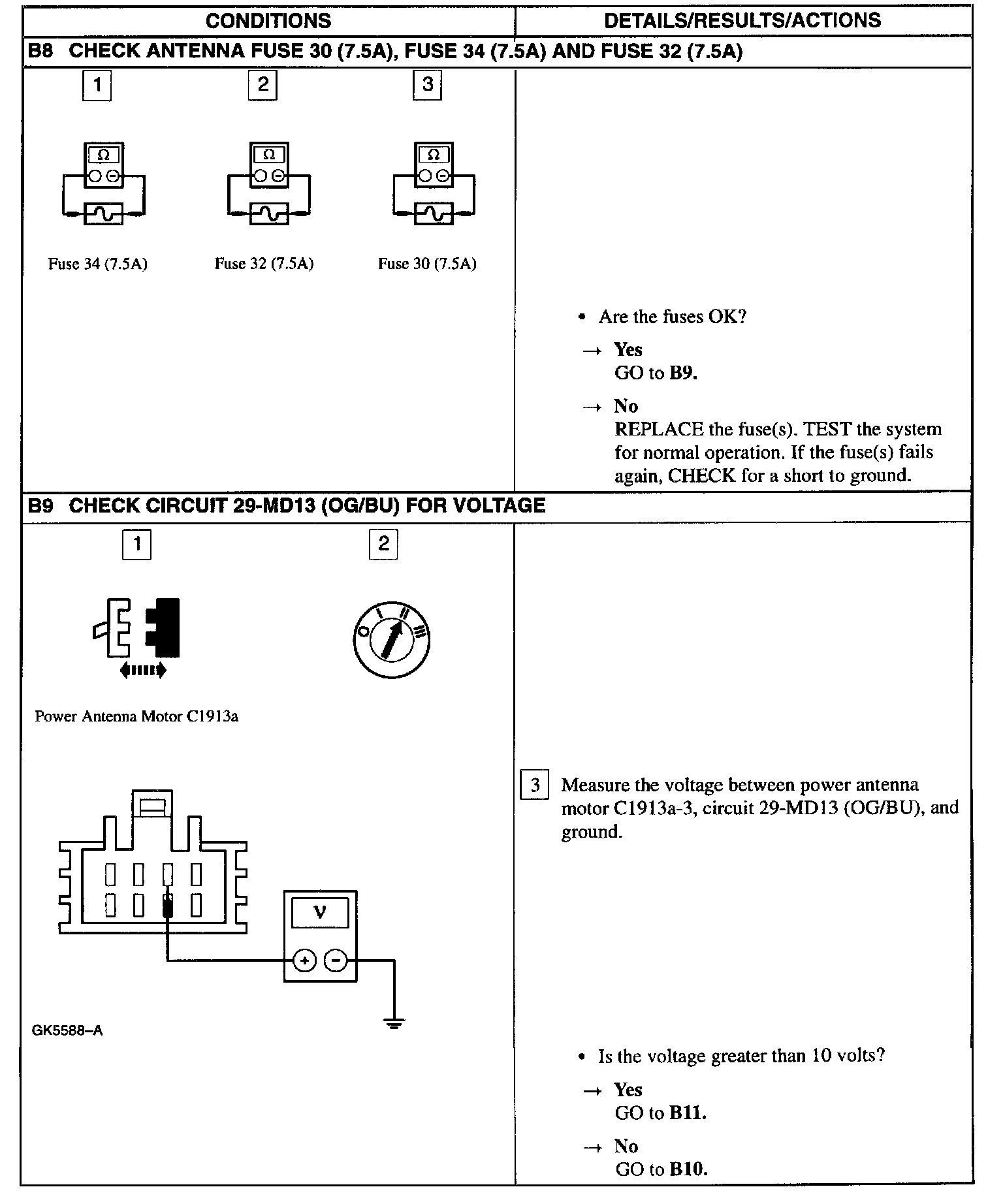

B8 - B9:

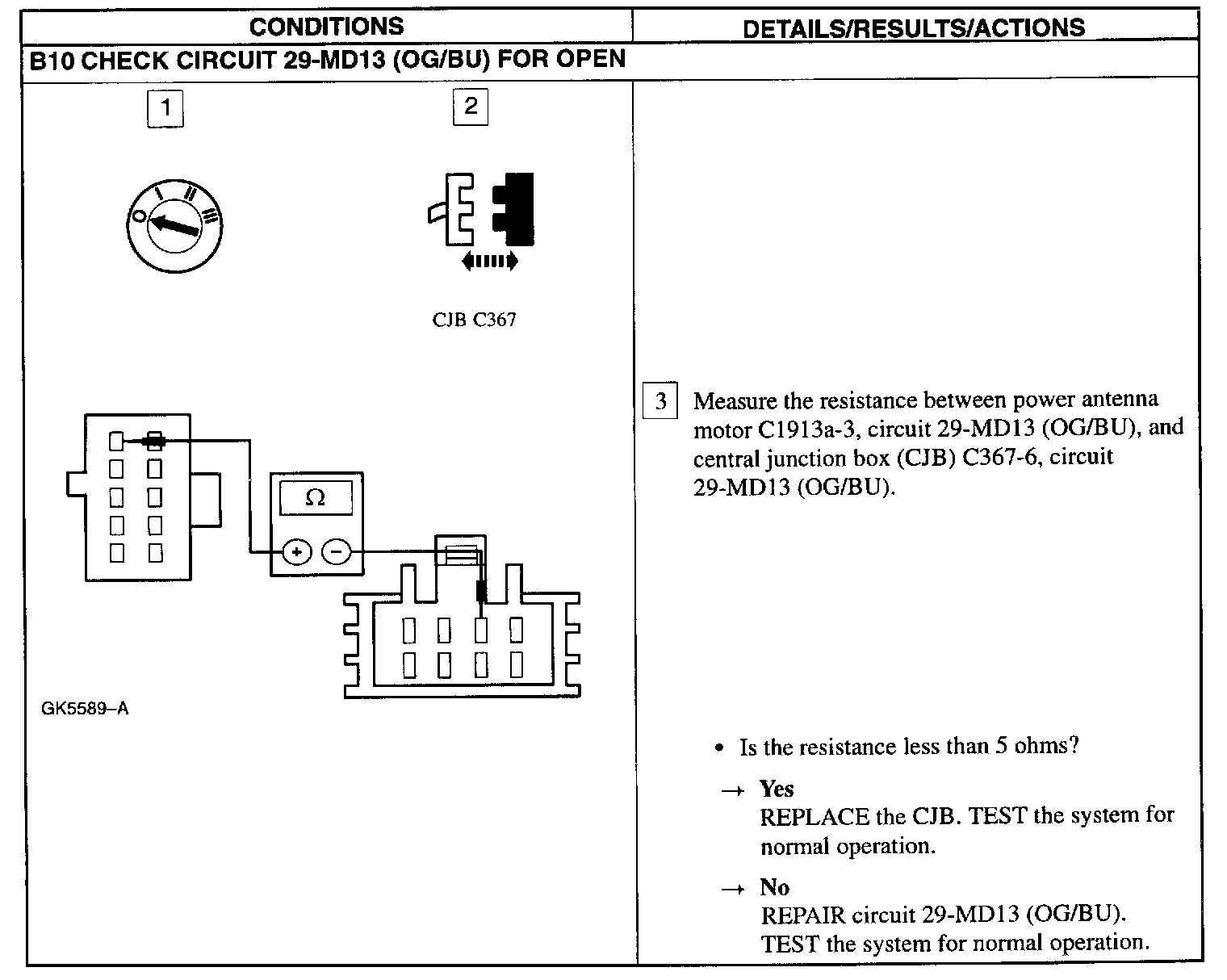

B10:

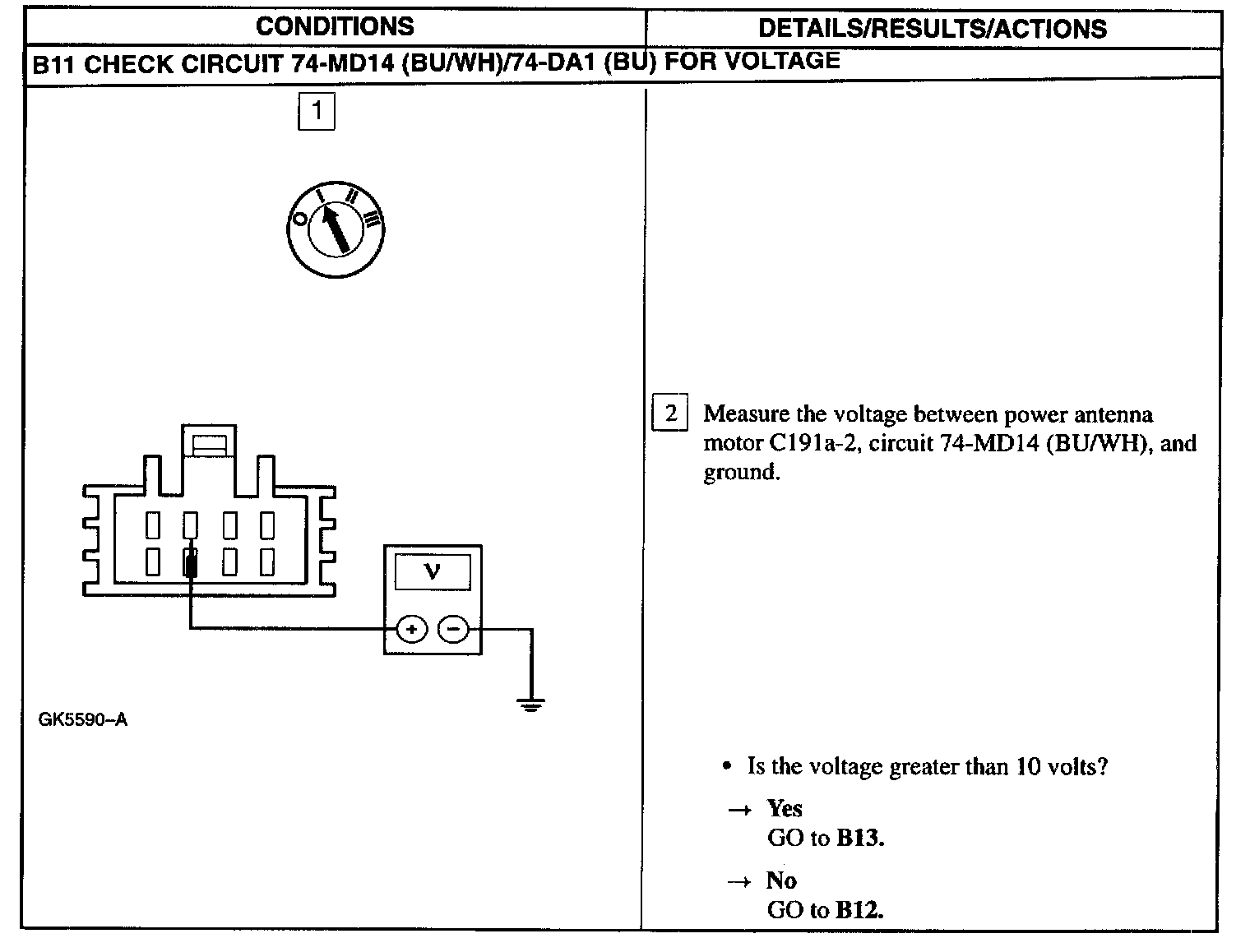

B11:

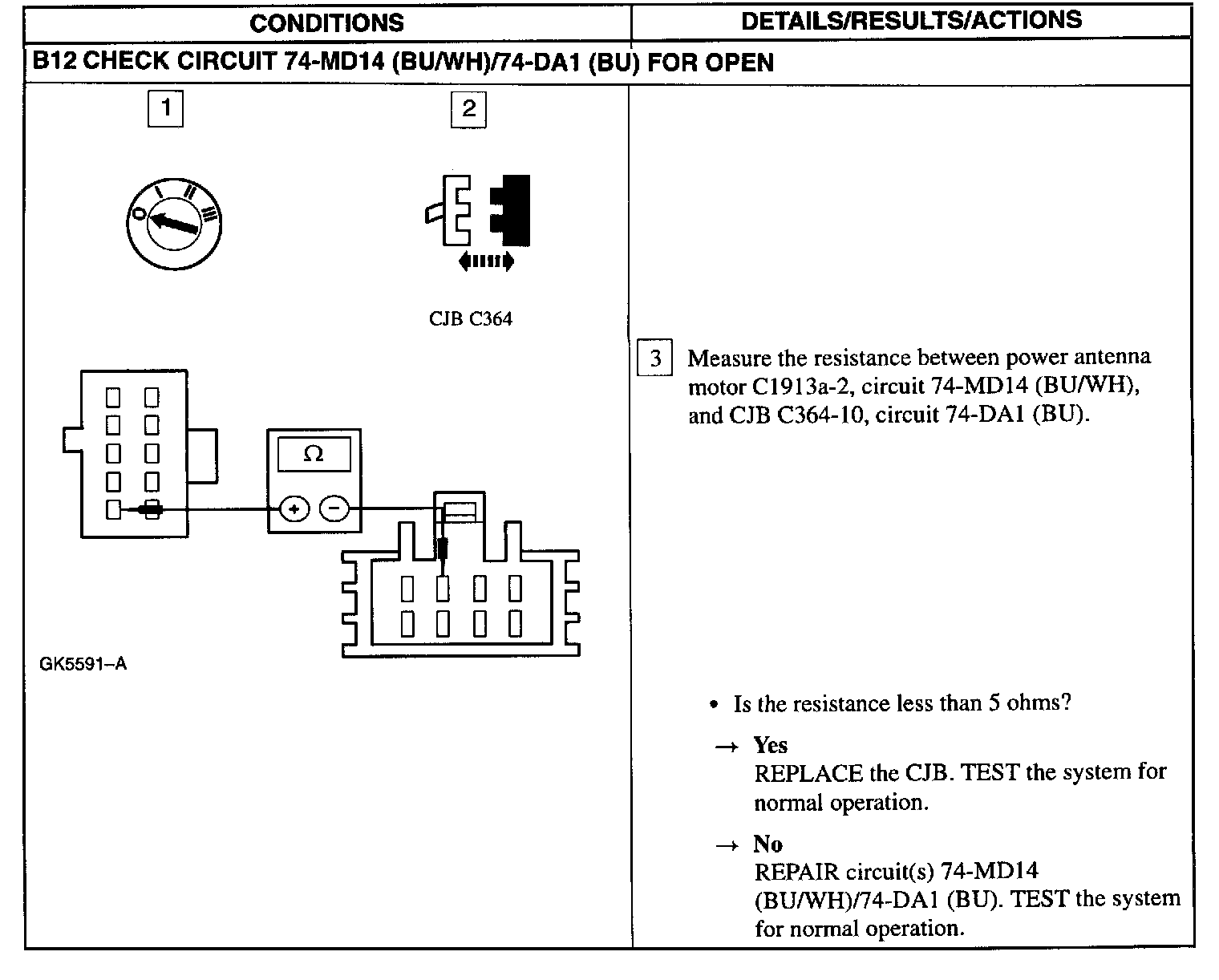

B12:






B13:

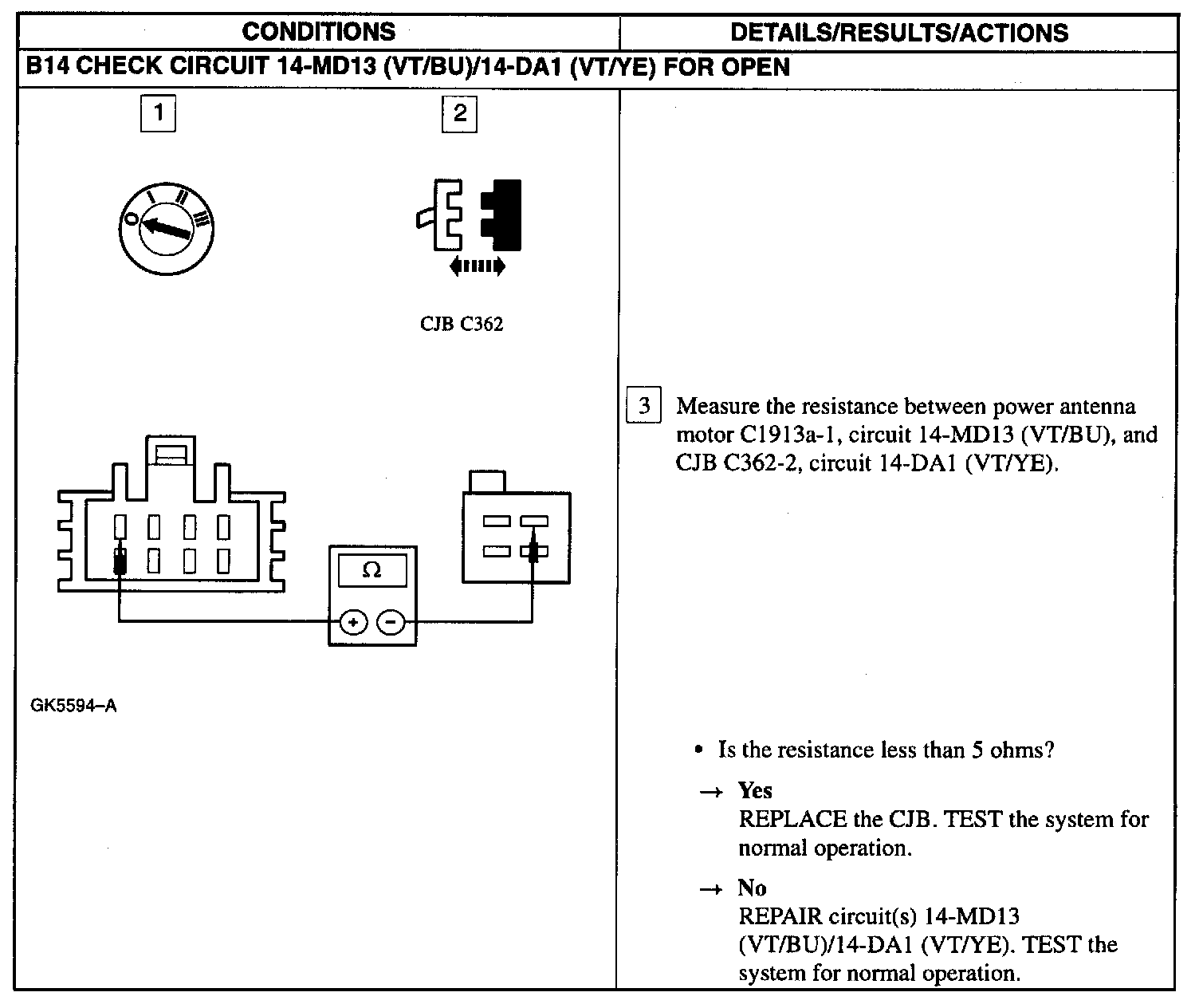

B14:

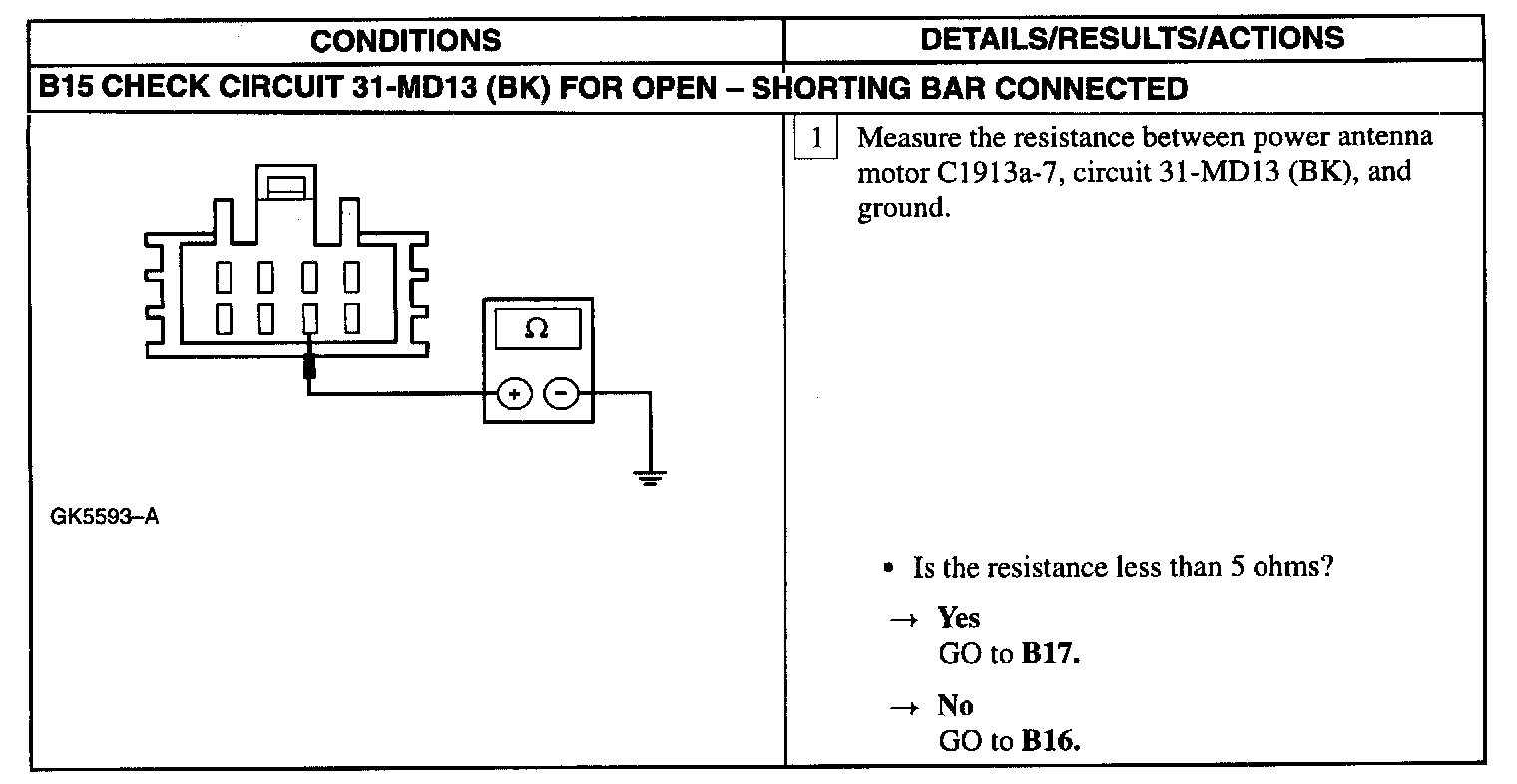

B15:






B16:

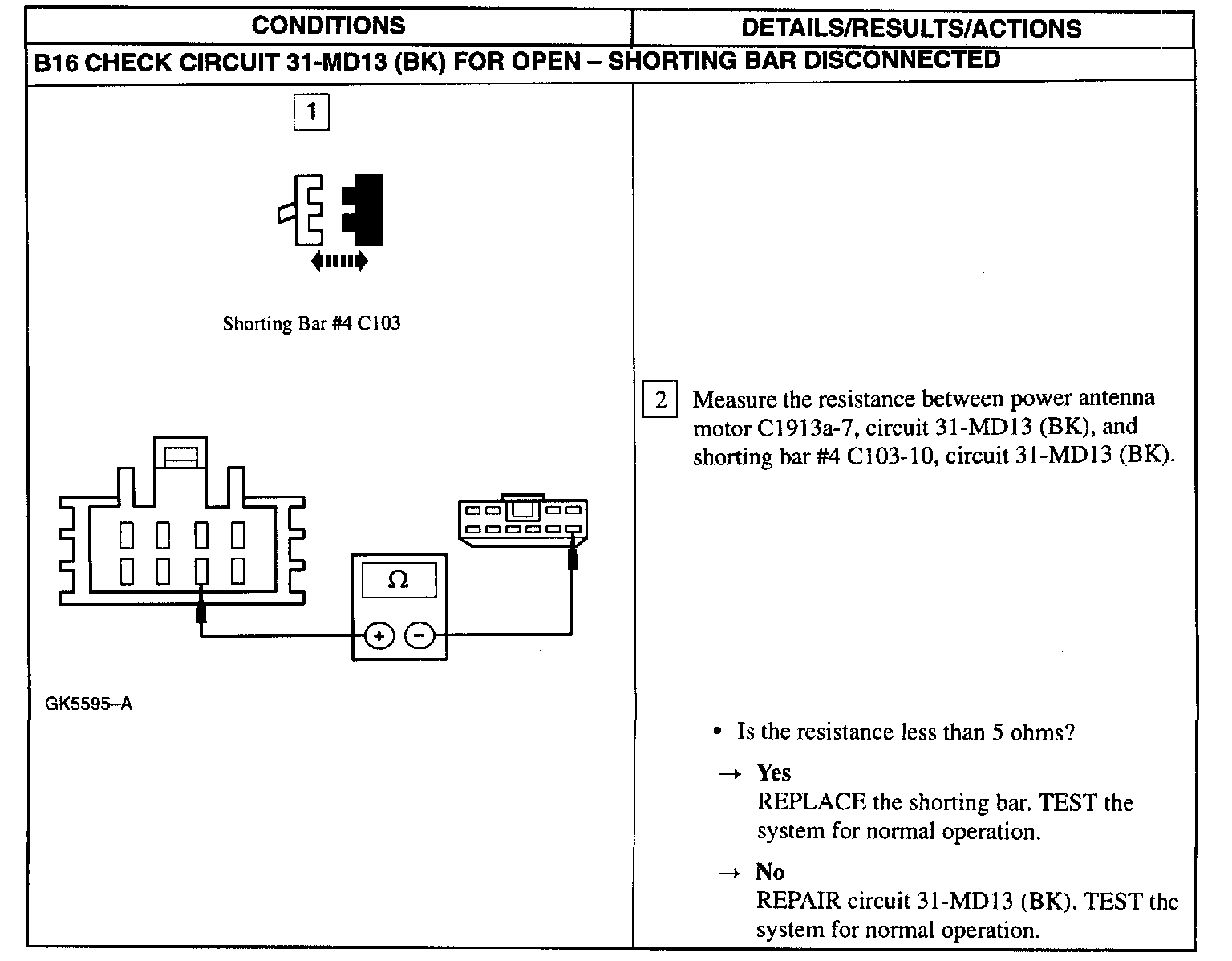

B17:

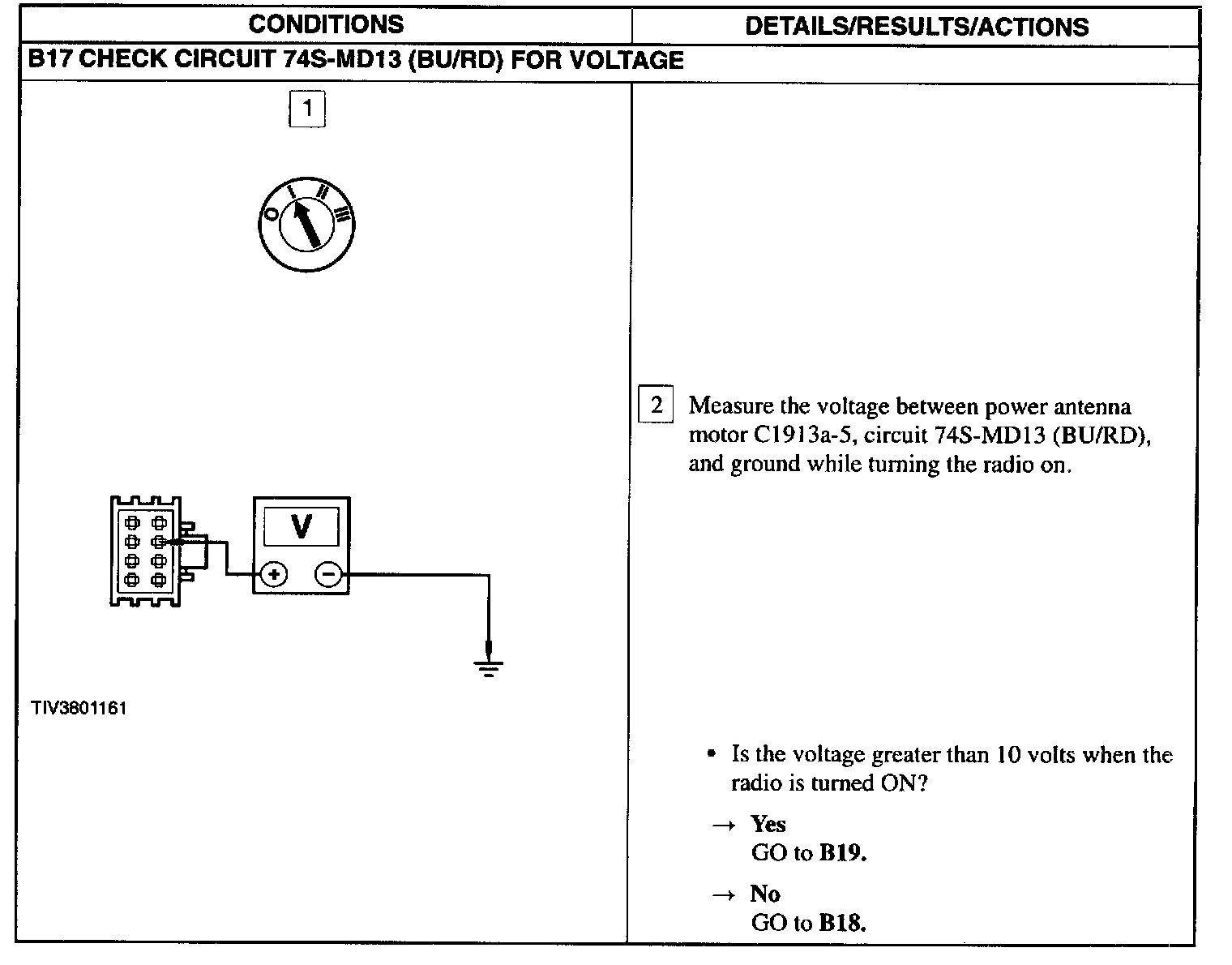

B18:

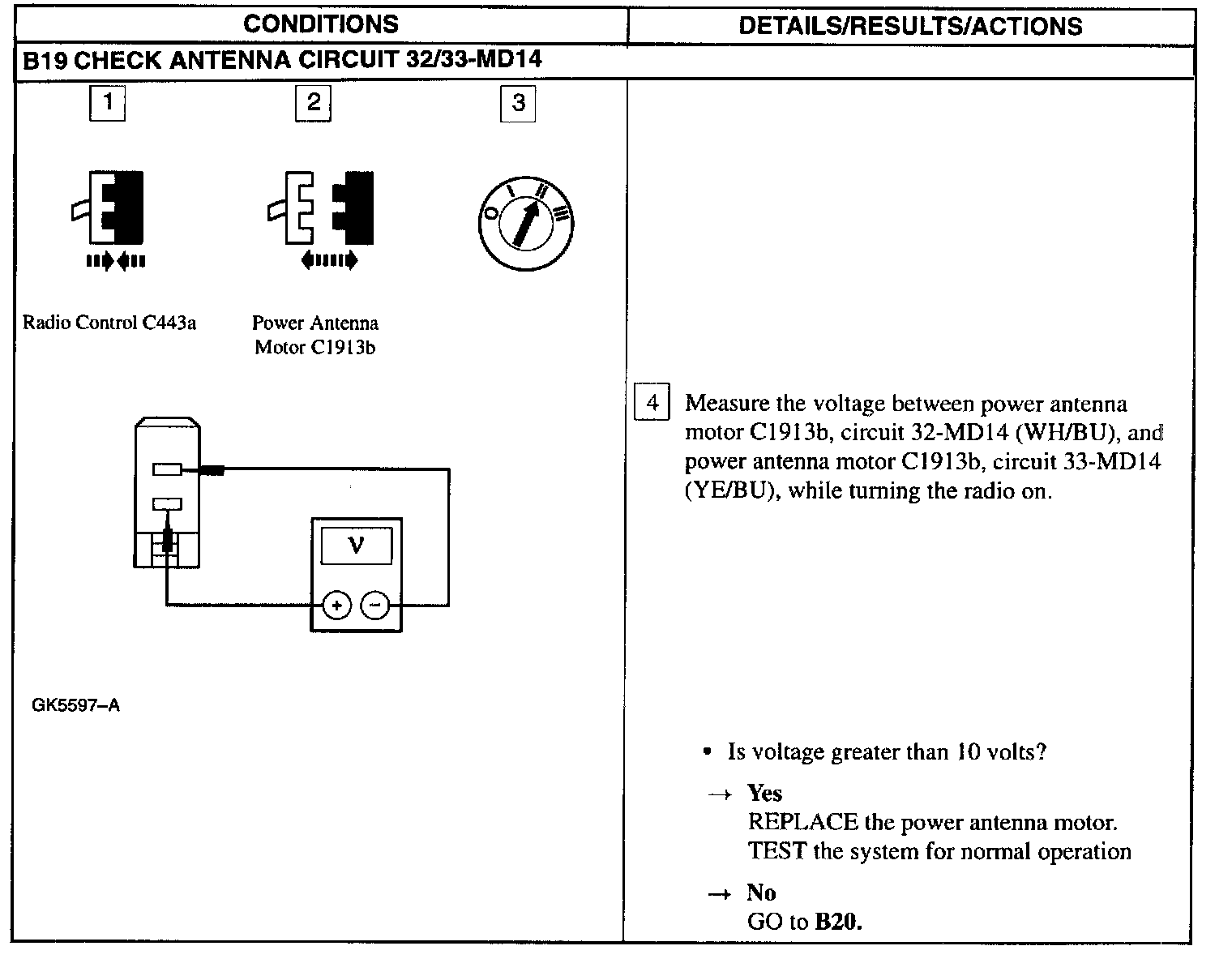

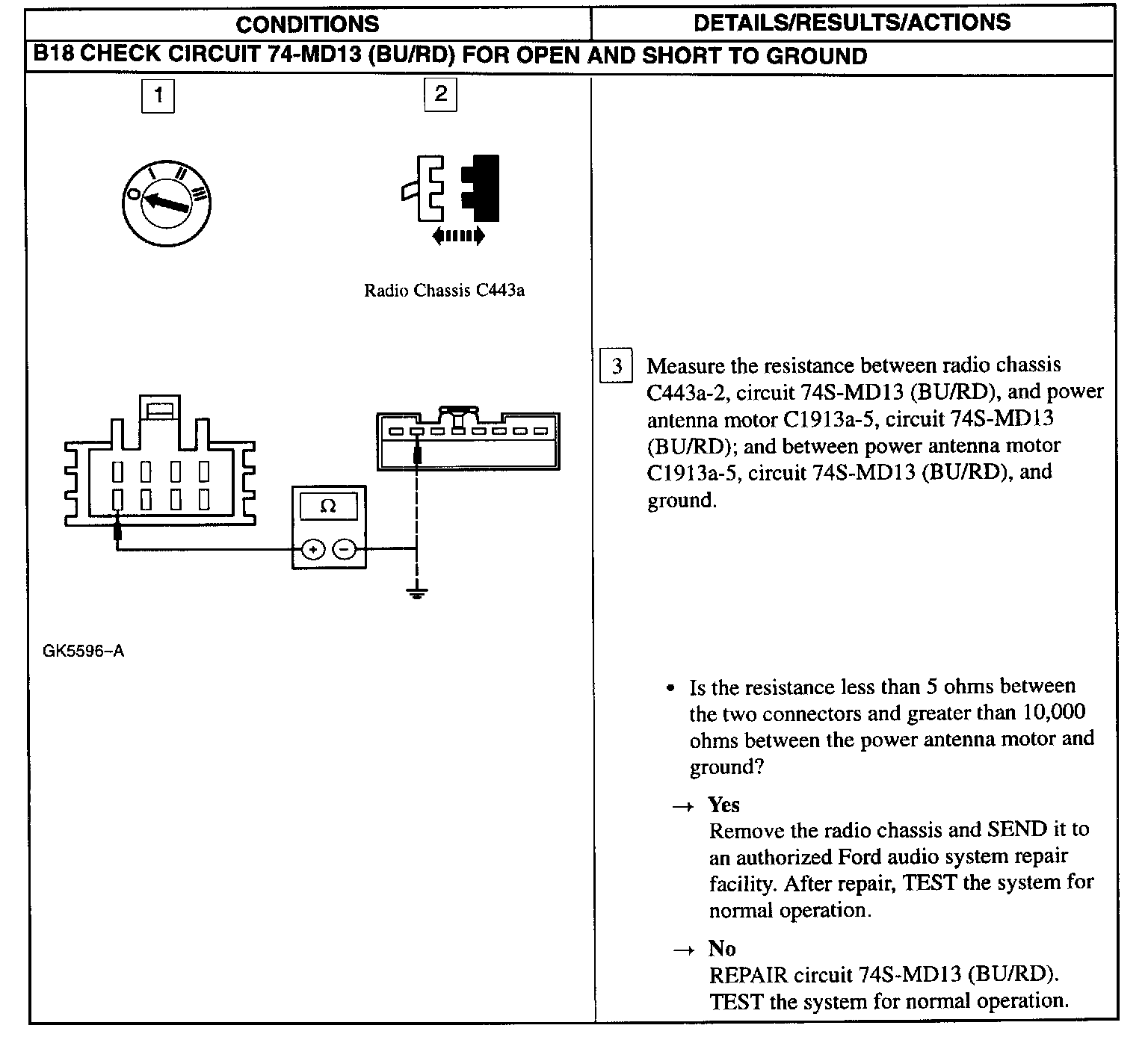

B19:

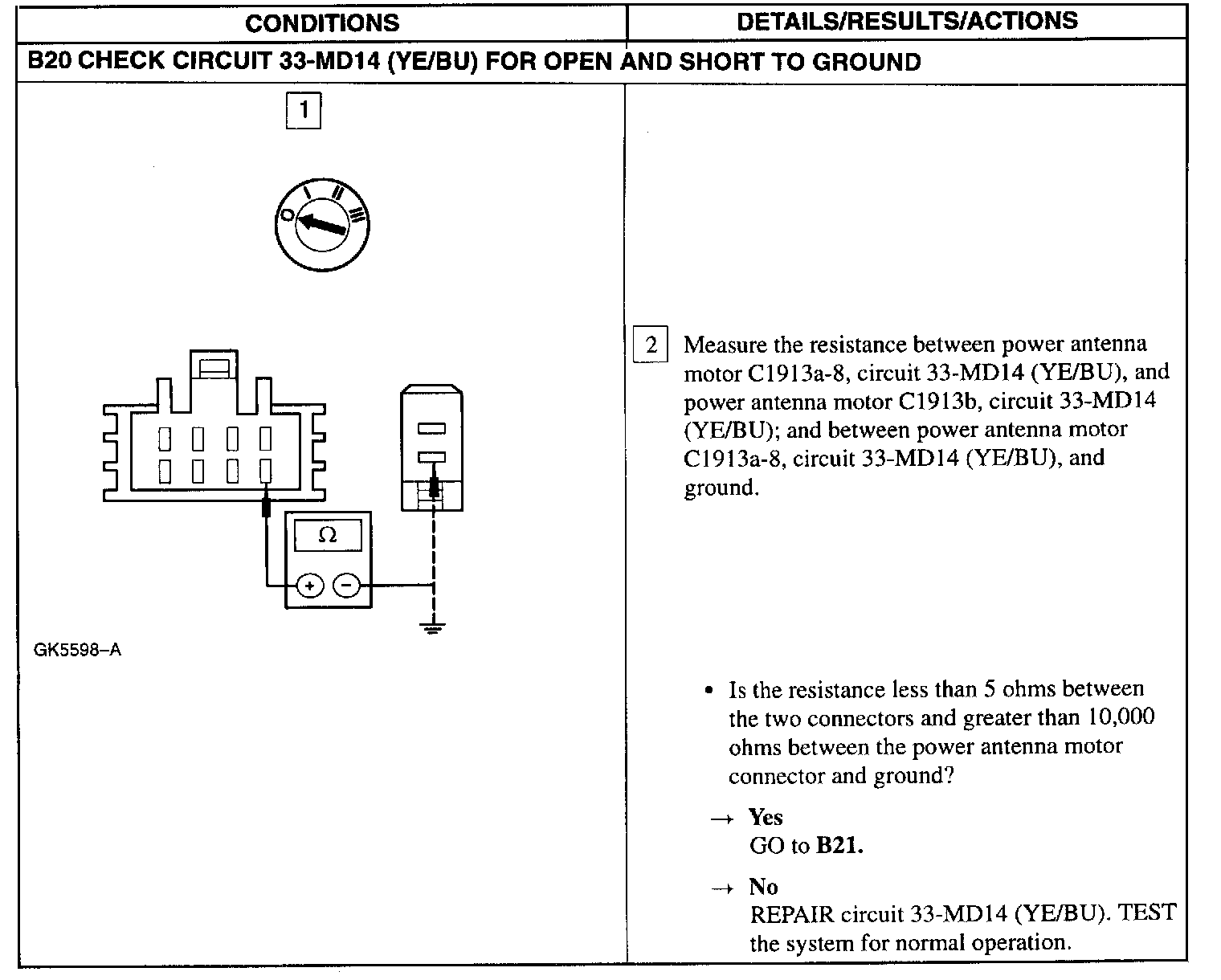

B20:

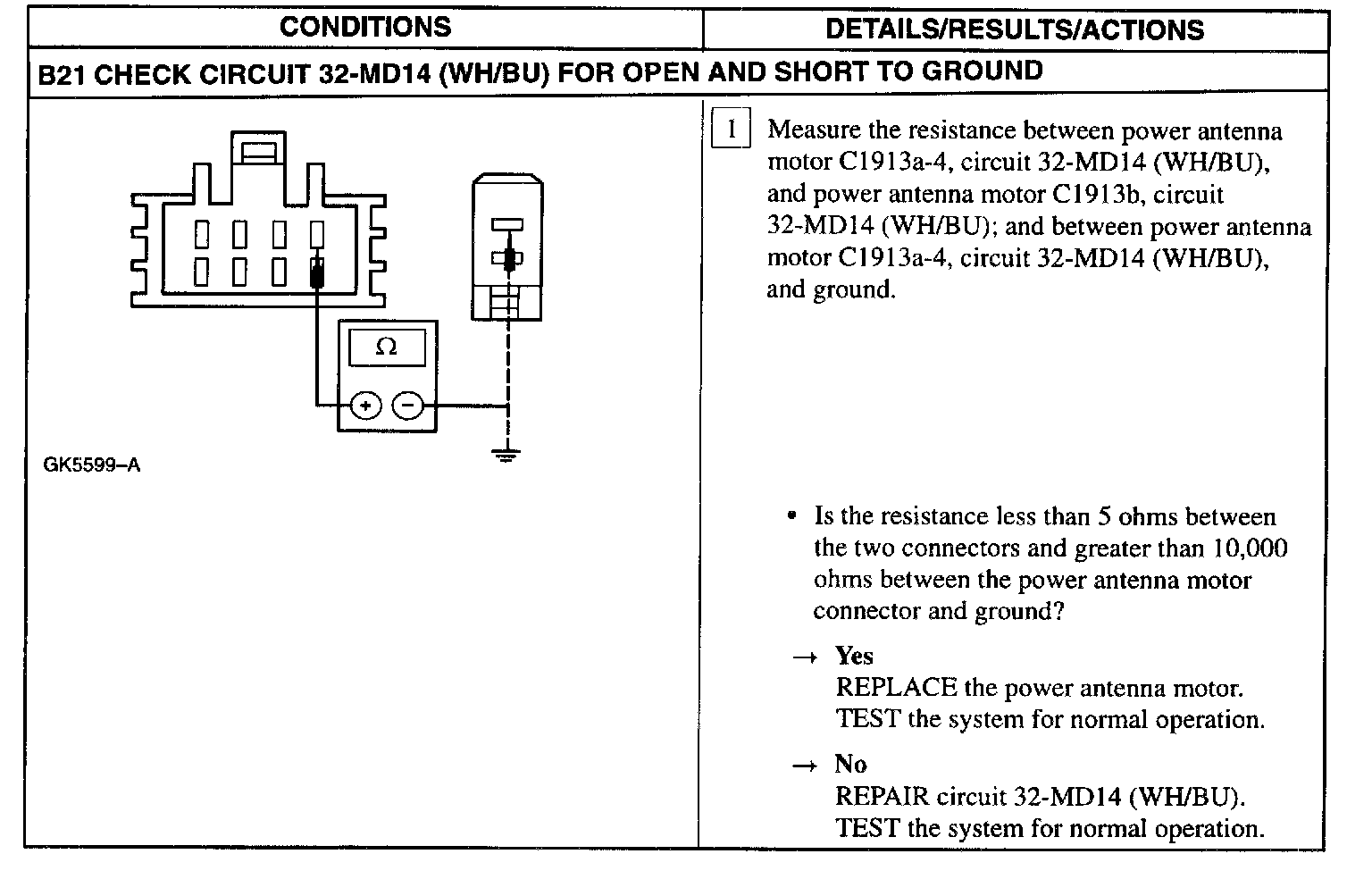

B21:
