Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> A: Radio/Tape Player Inop - Not Operate Properly

A: Radio/Tape Player Inop - Not Operate Properly

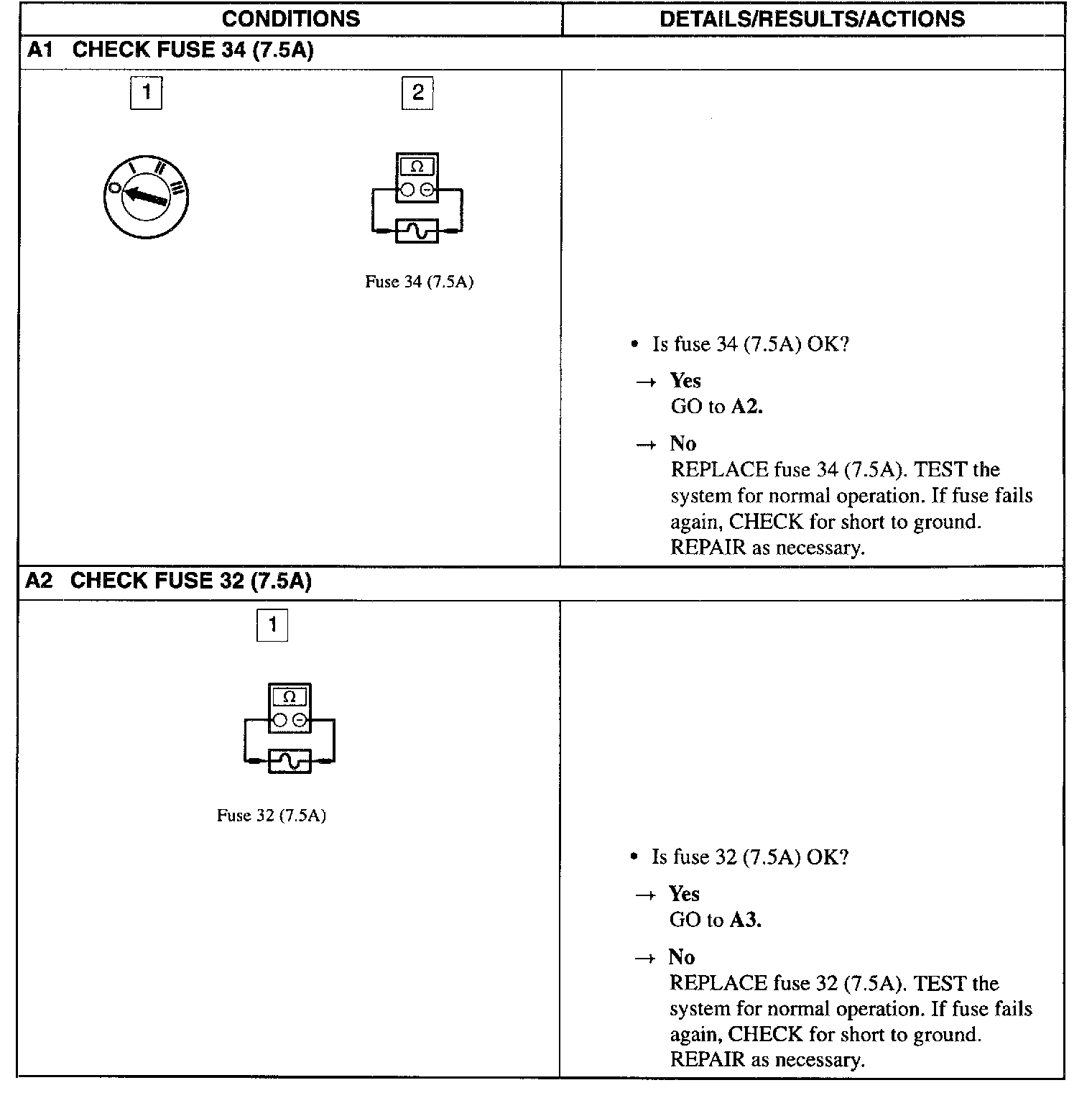

A1 - A2:

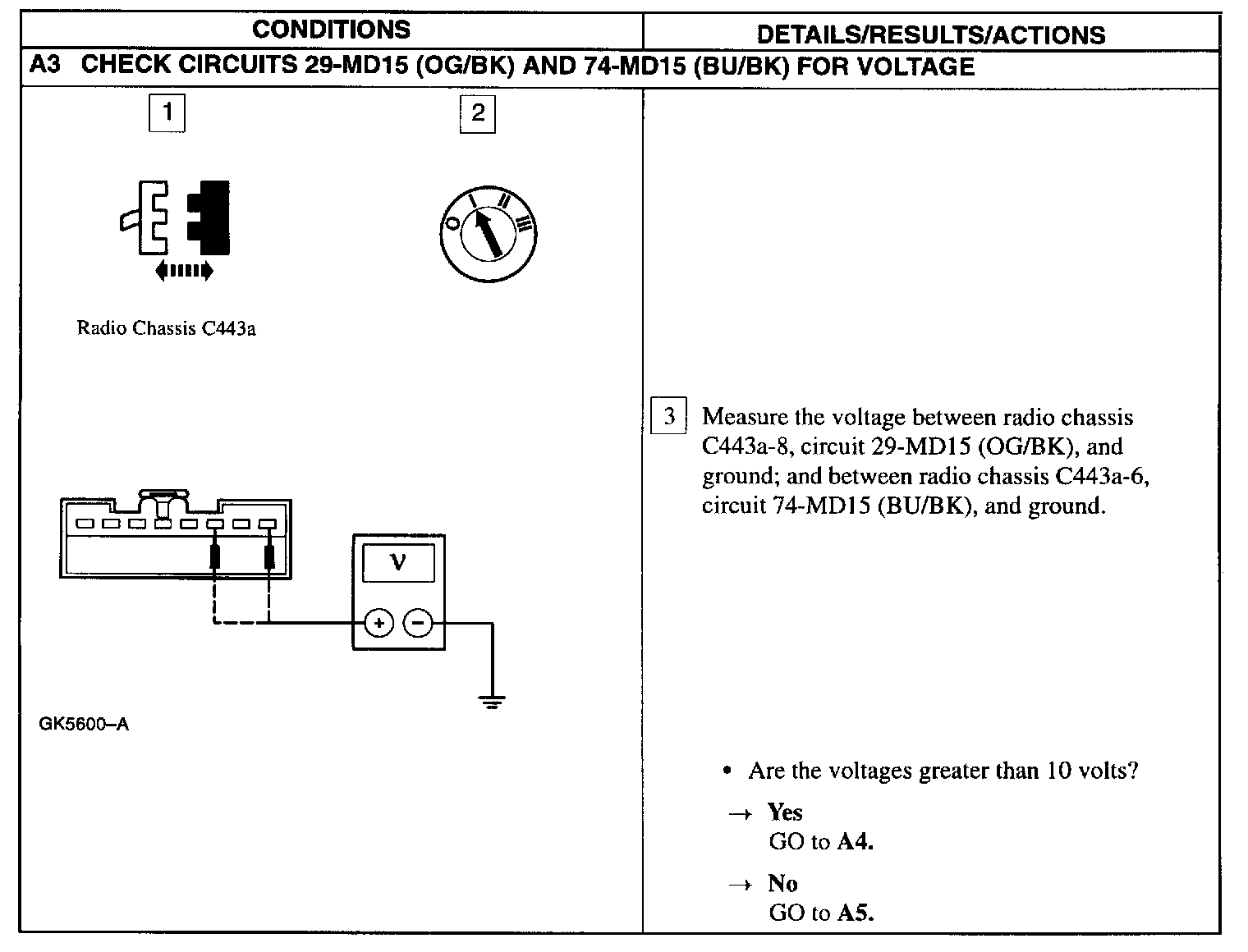

A3:

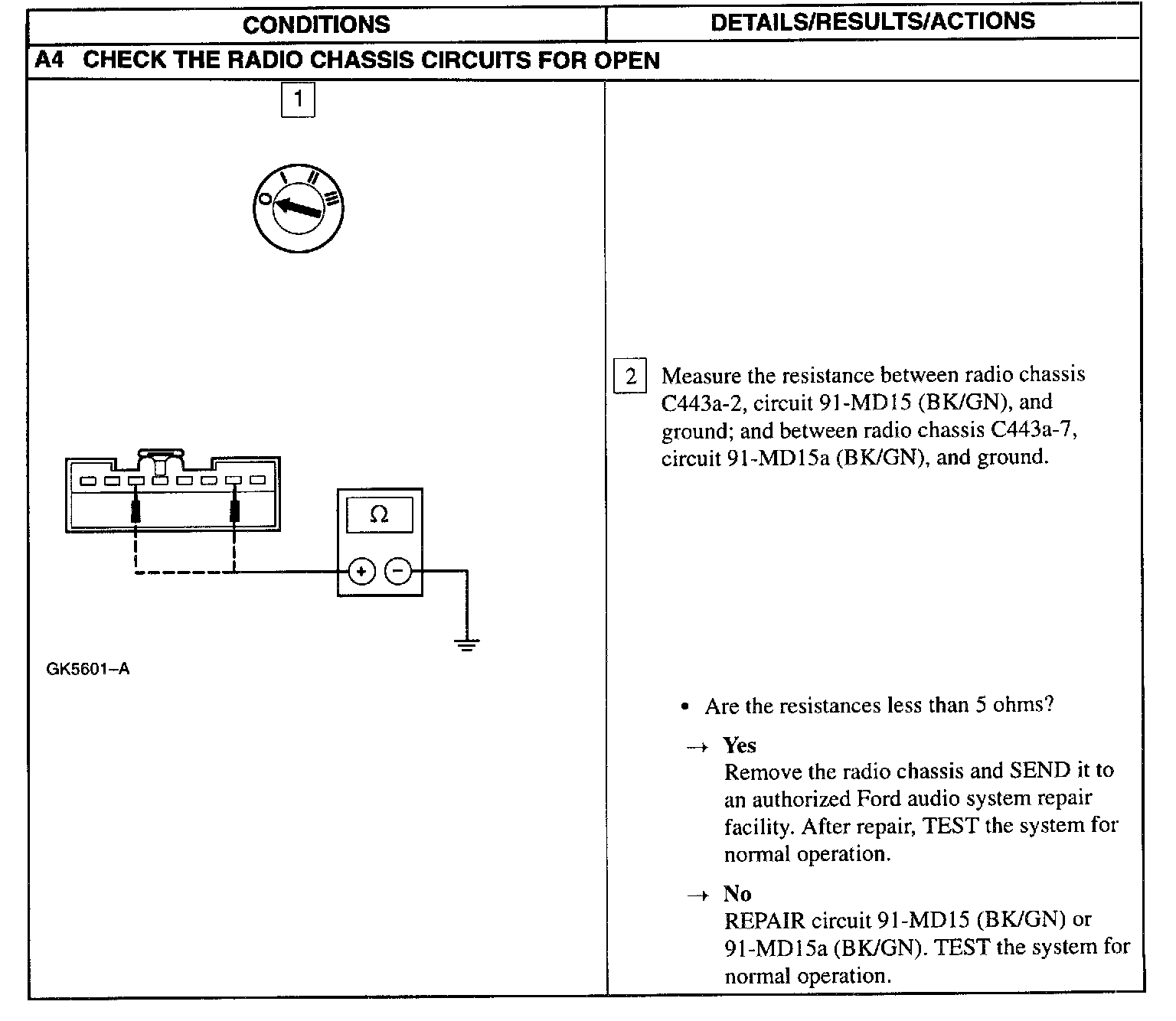

A4:

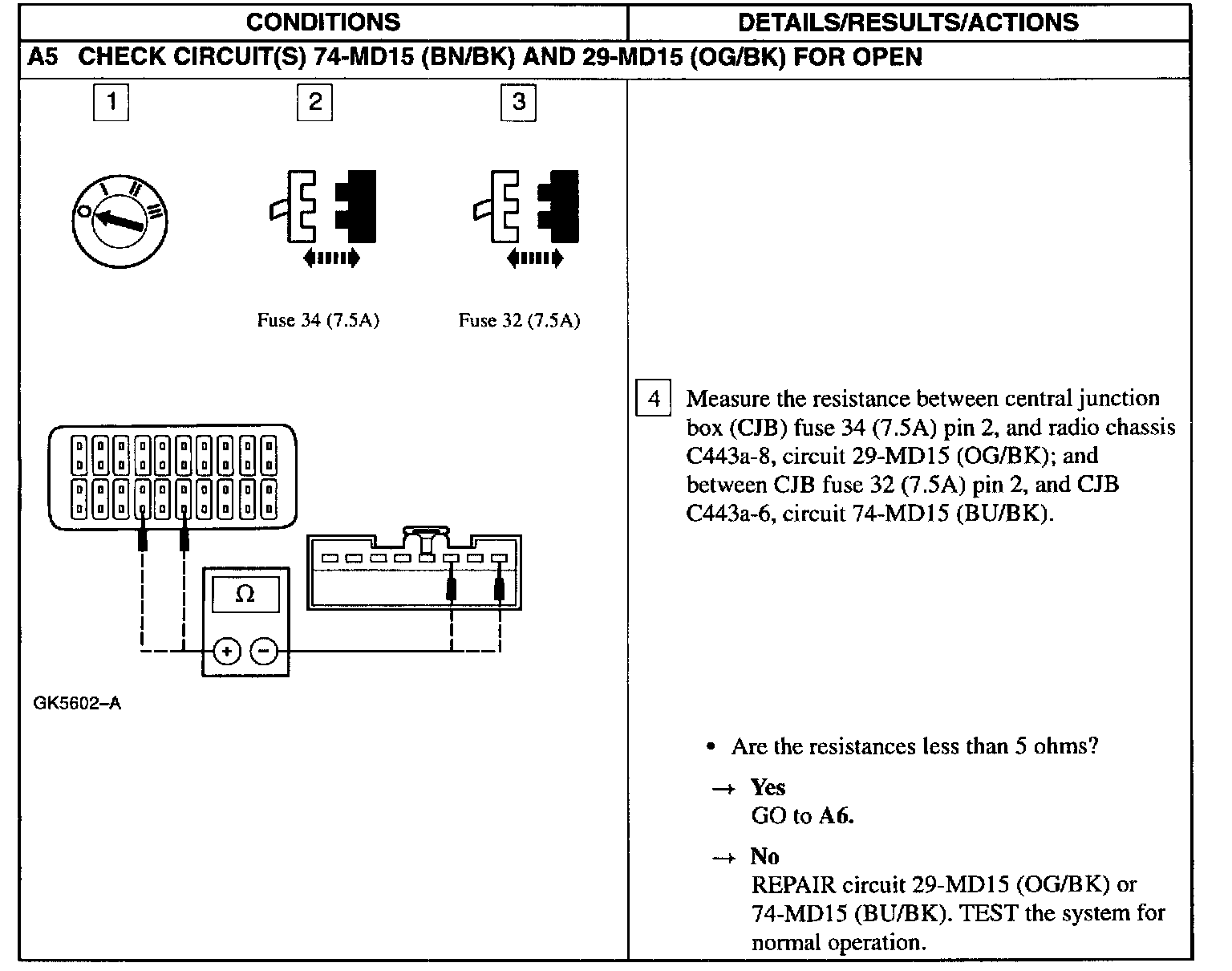

A5:

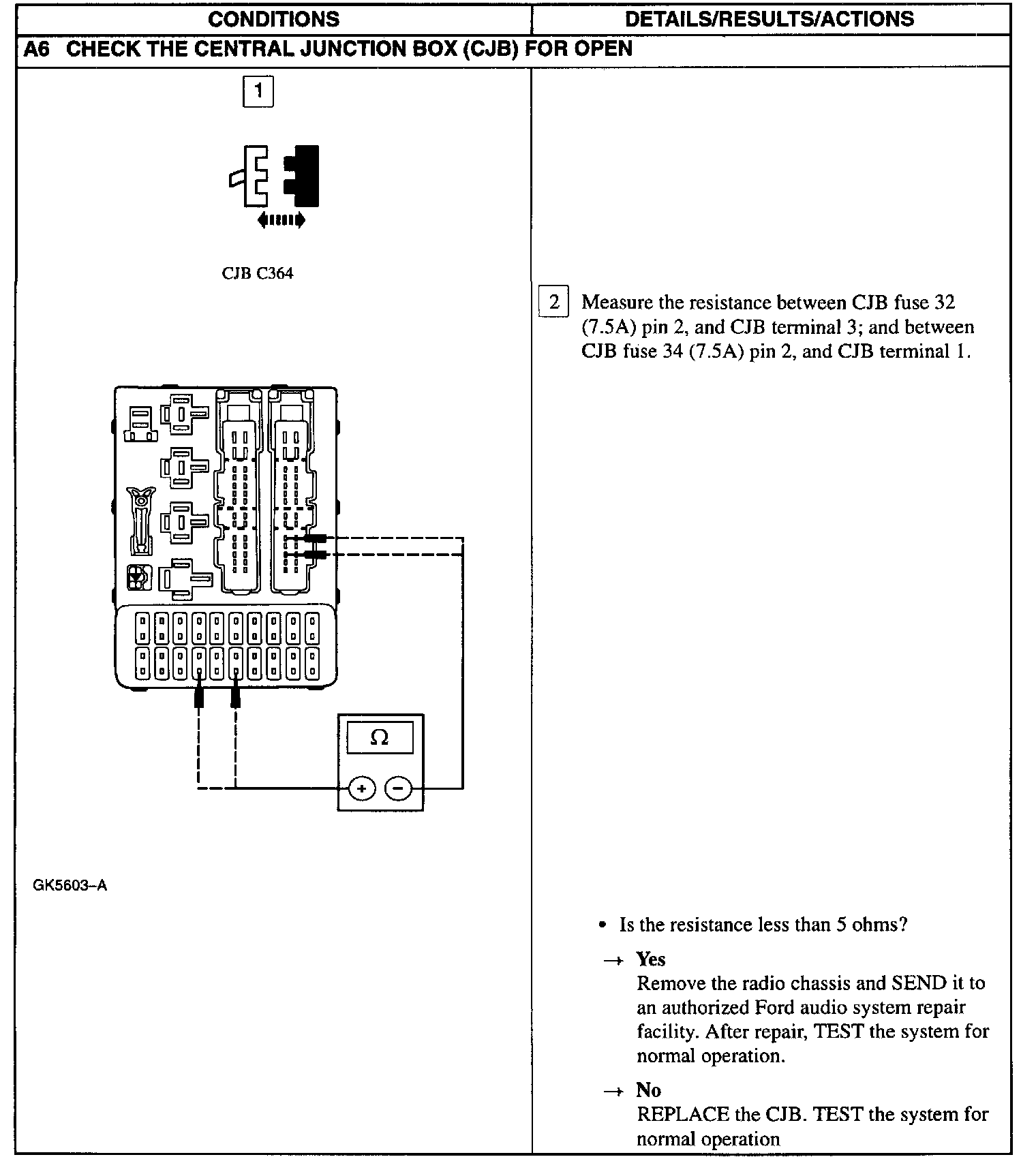

A6:
