Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Passive Anti-Theft Alarm System (Pats) >> G: DTC B1600: Ignition Key Transponder Signal Not Received

G: DTC B1600: Ignition Key Transponder Signal Not Received

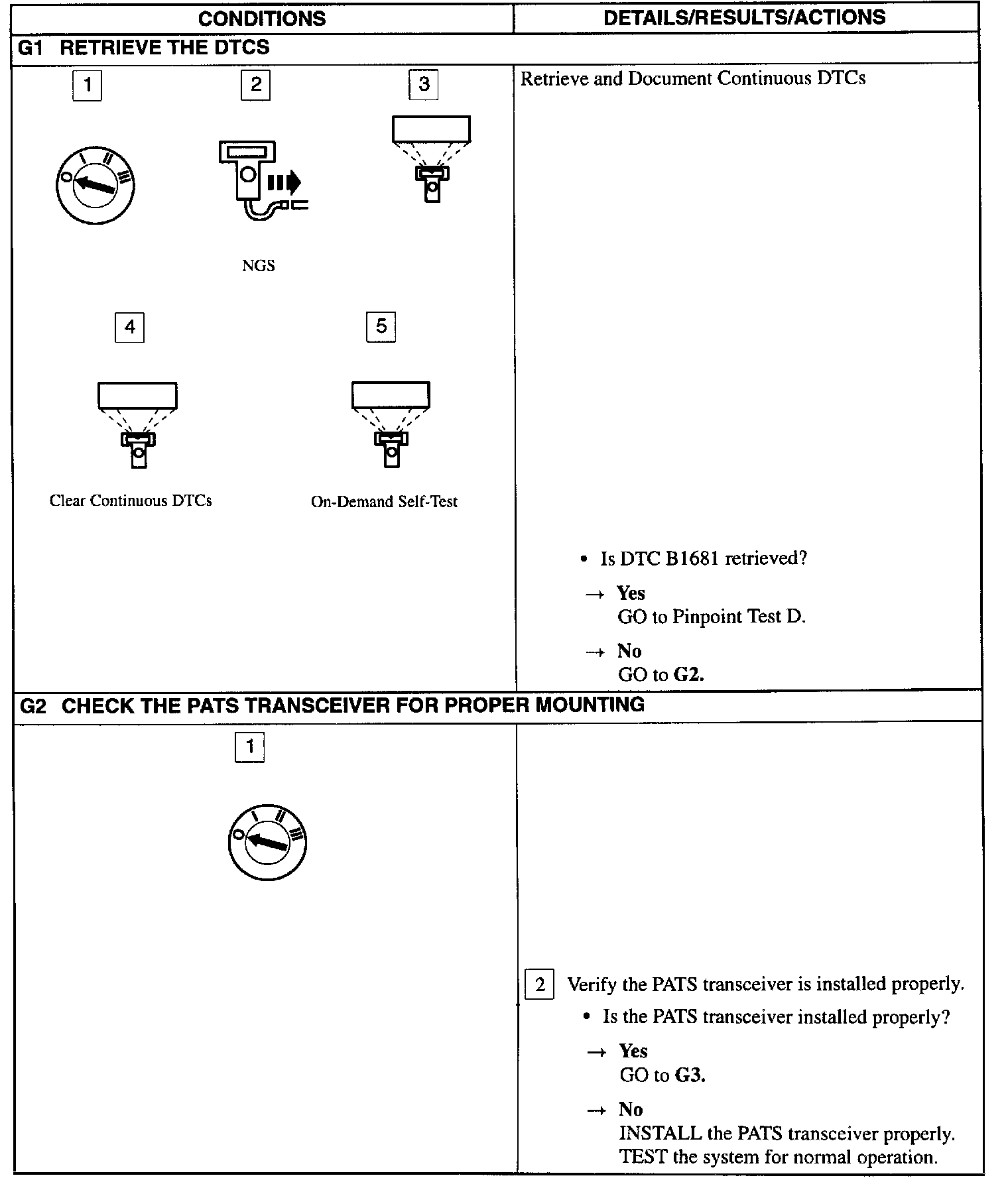

G1 - G2:

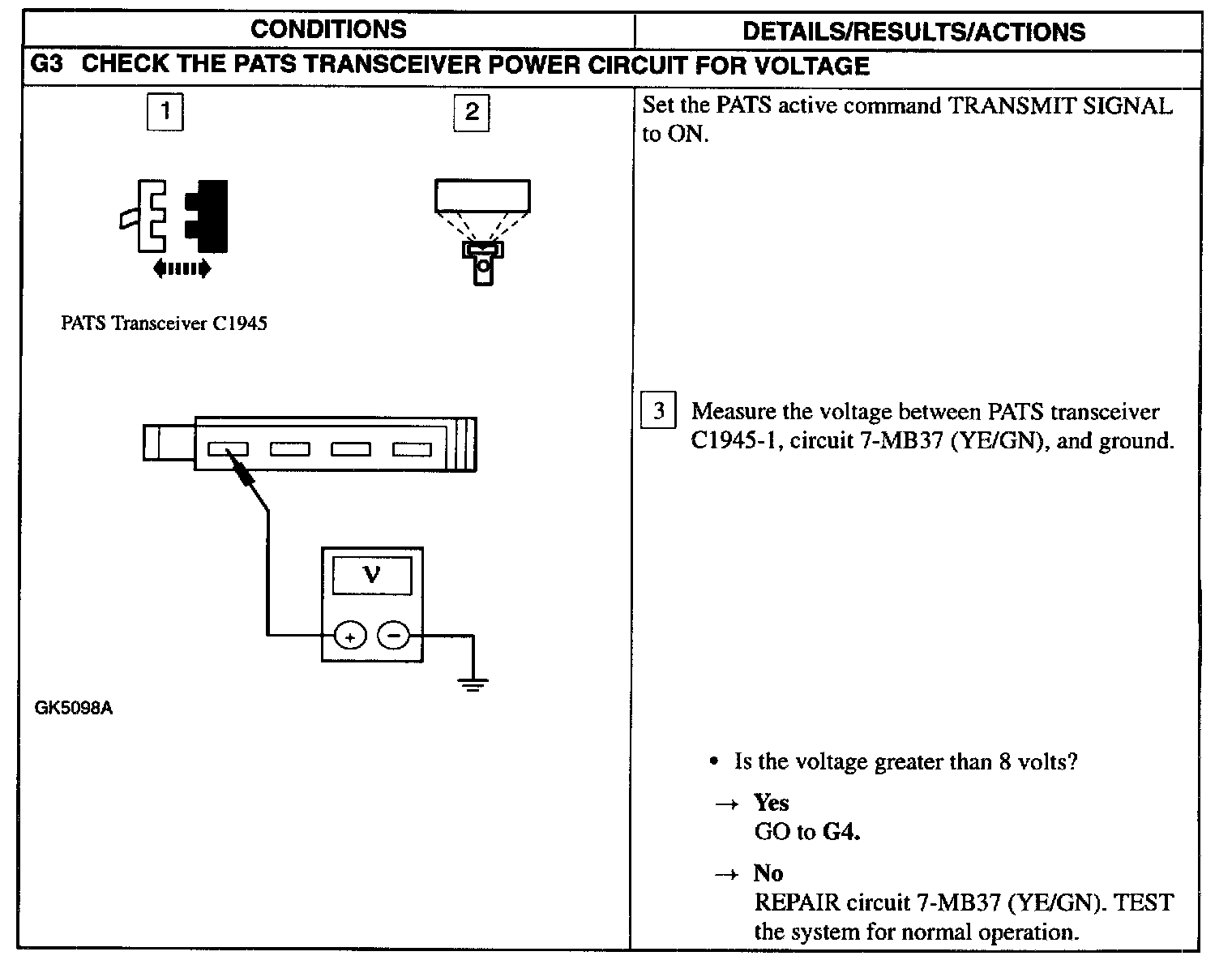

G3:

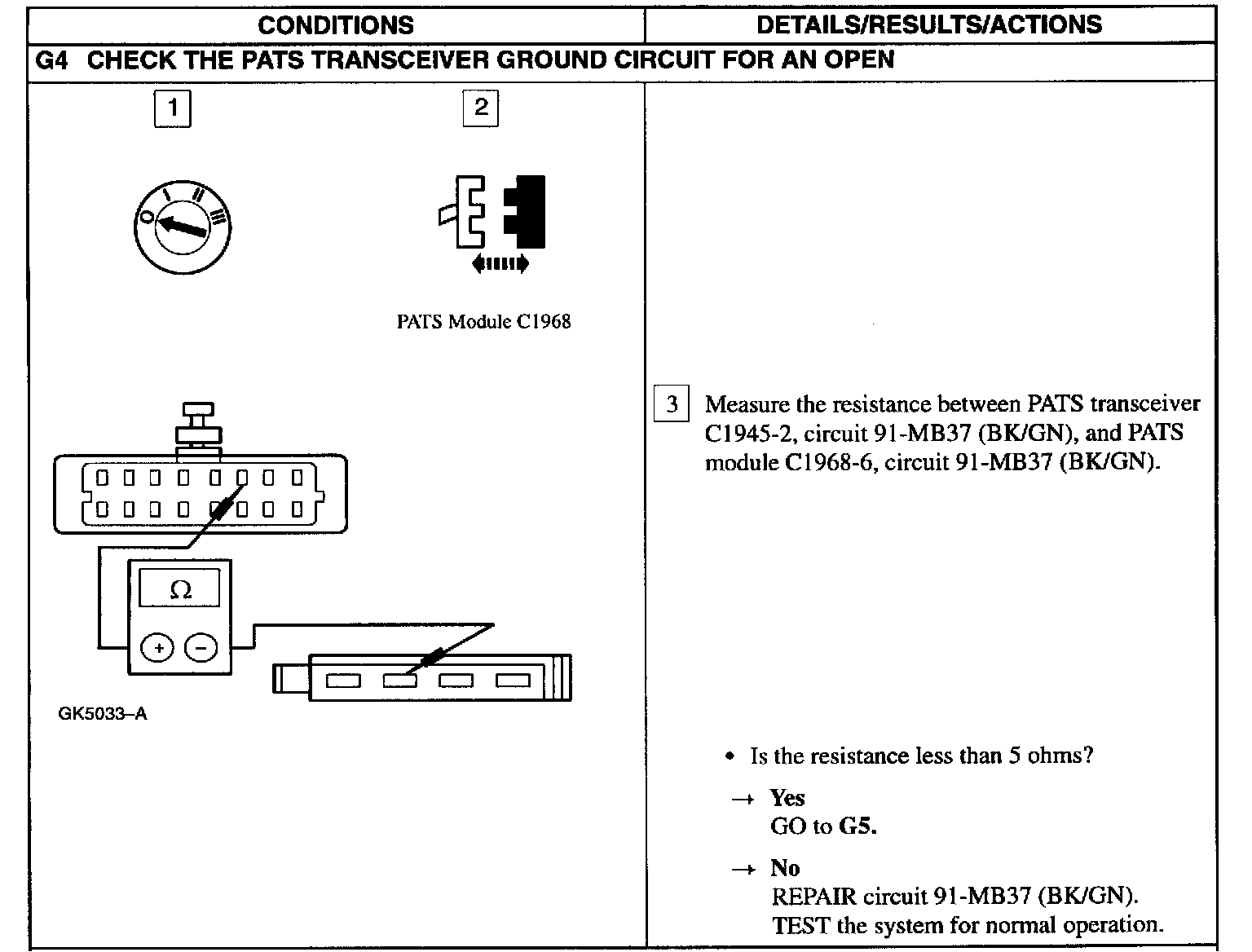

G4:

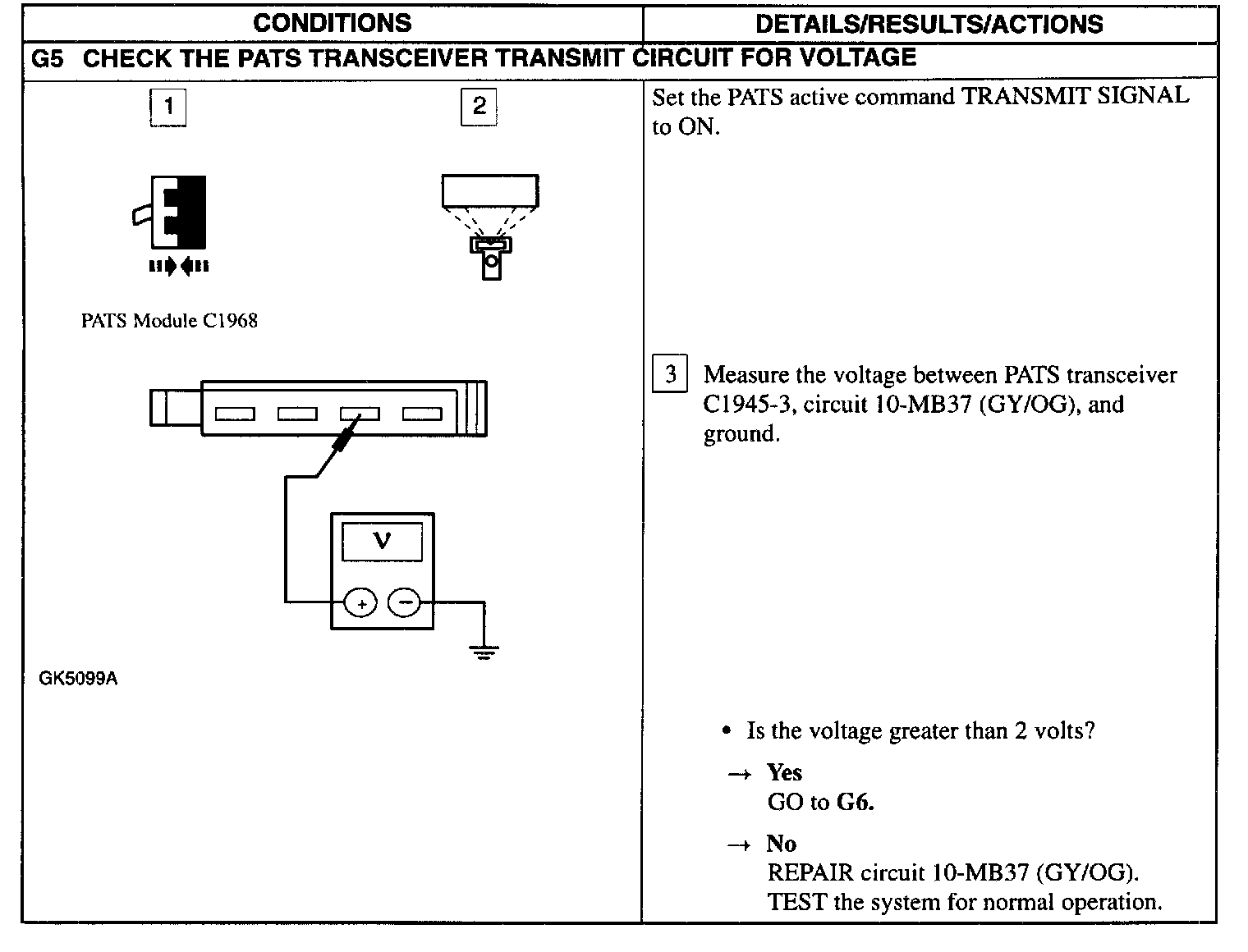

G5:

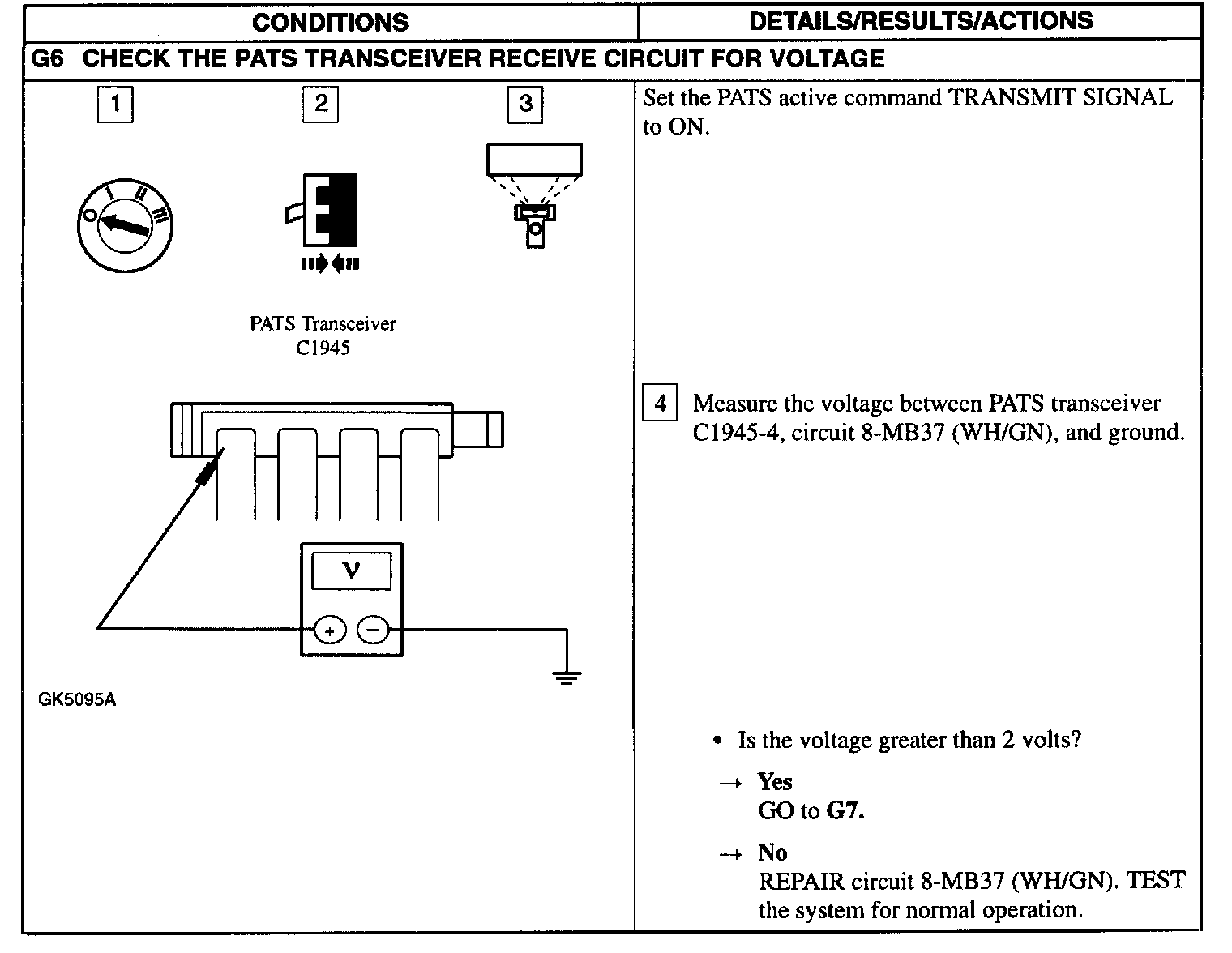

G6:

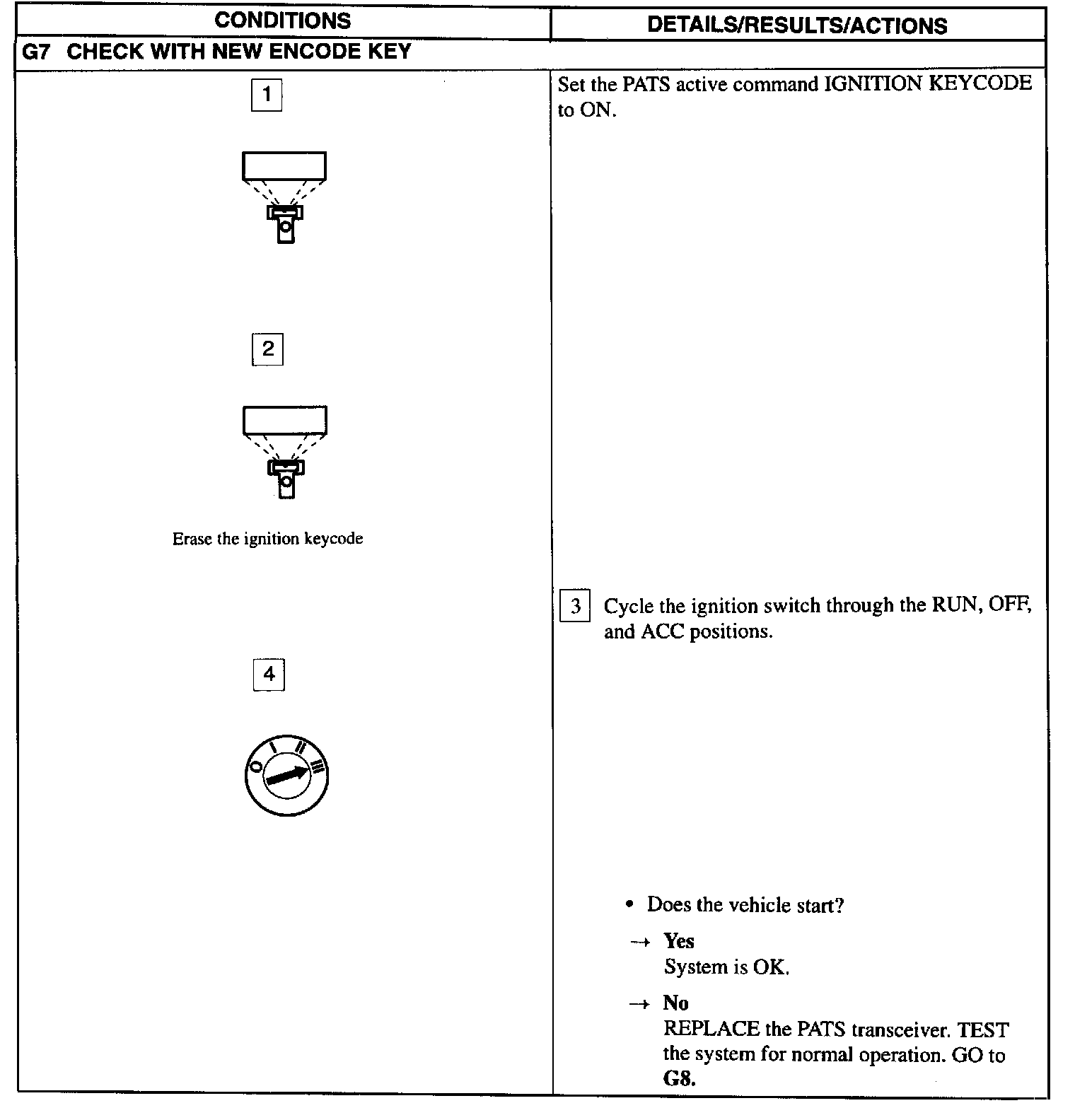

G7:






G8 - G9:
