Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Pinpoint Tests >> B: Luggage Compartment Door Inoperative W/Remote Transmitter

B: Luggage Compartment Door Inoperative W/Remote Transmitter

B1:

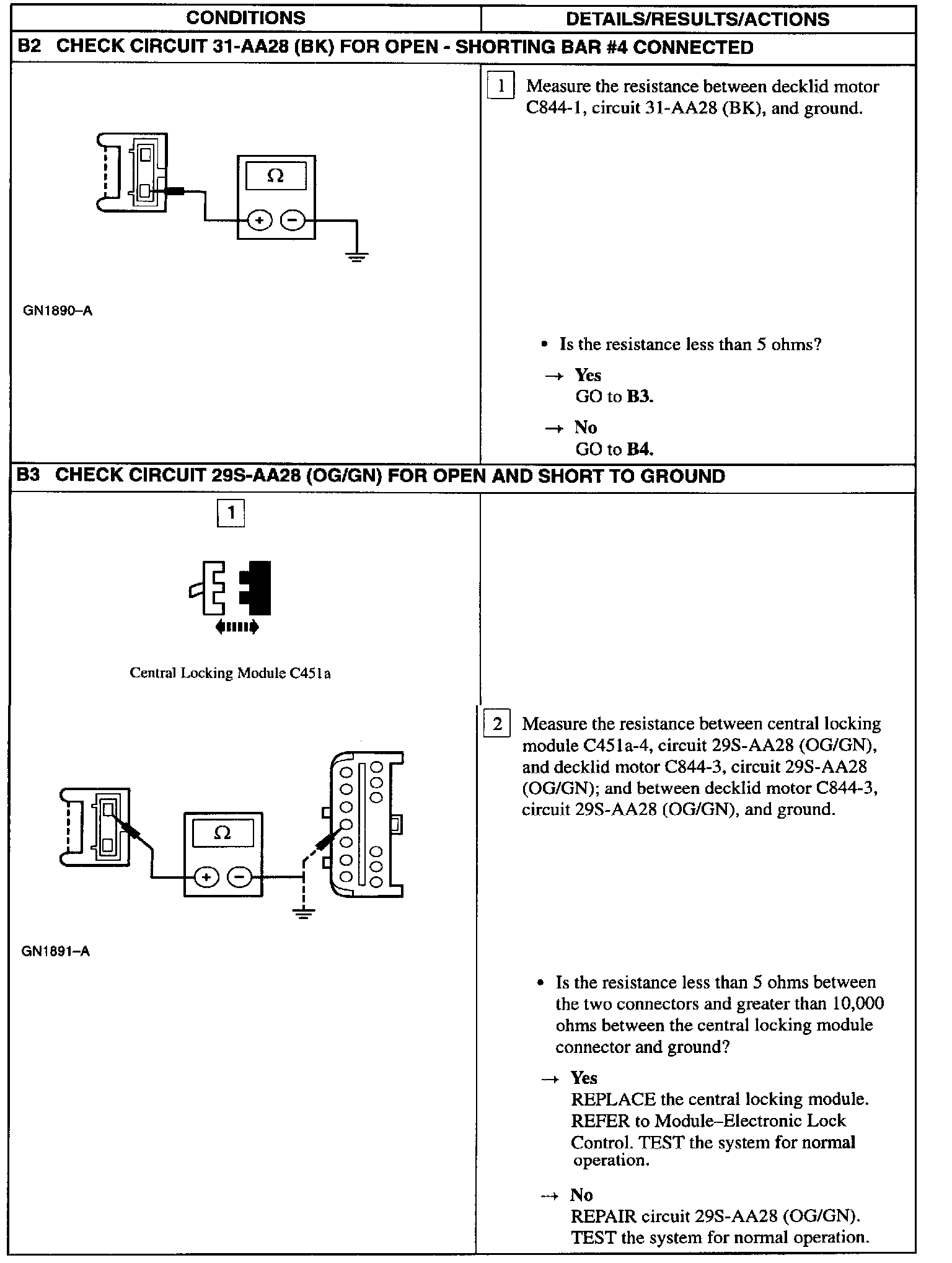

B2 - B3:

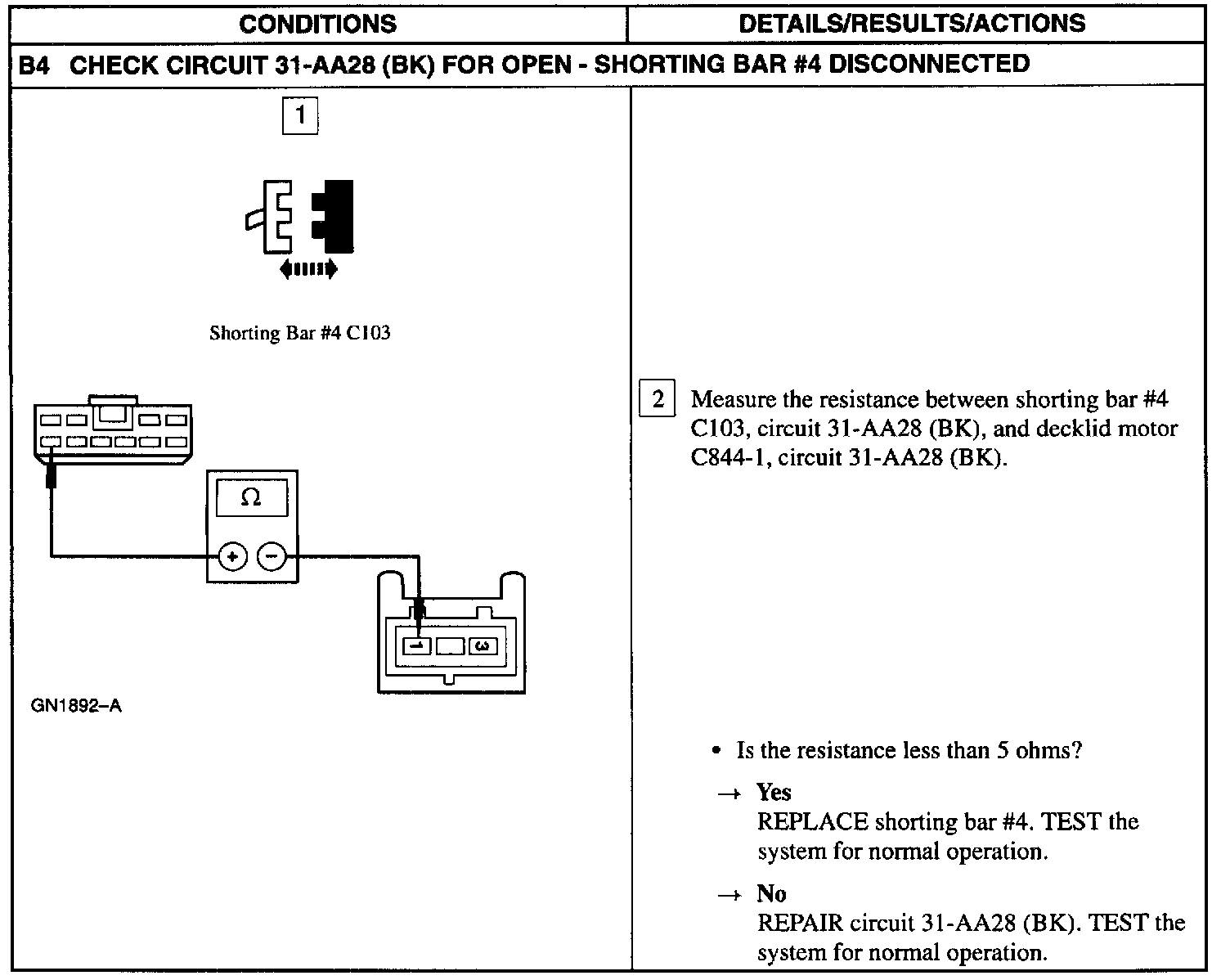

B4:
