Rear Wiper Motor

REMOVAL

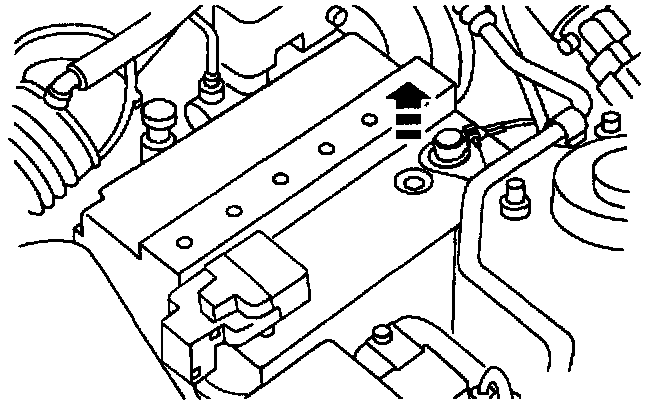

1. Disconnect the battery ground cable.

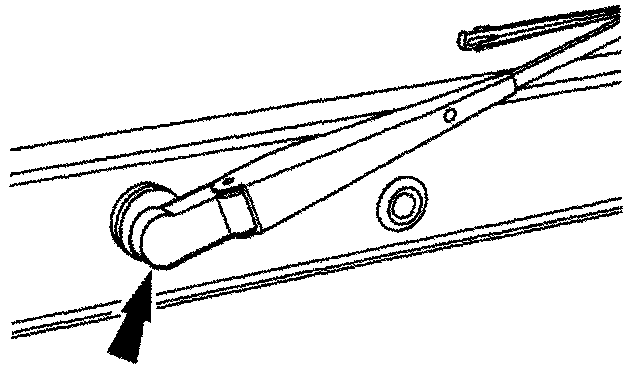

2. Remove the rear wiper output arm cover.

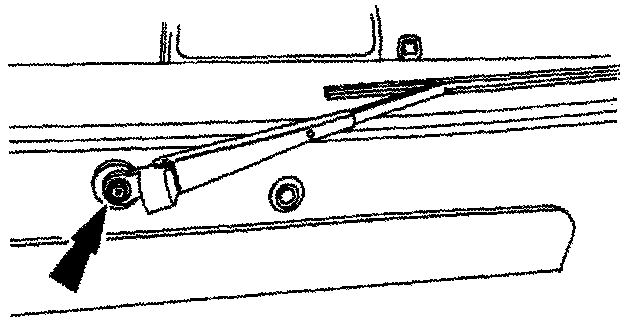

3. Remove the the rear window wiper pivot arm nut.
4. Pull upward and twist to remove the rear wiper pivot arm.

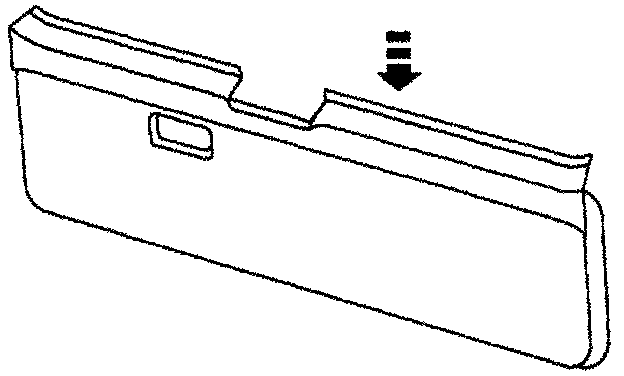

5. Remove the liftgate door trim panel.

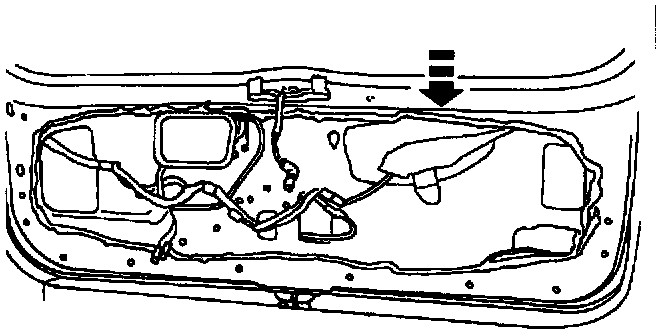

6. Pull off the liftgate watershield.

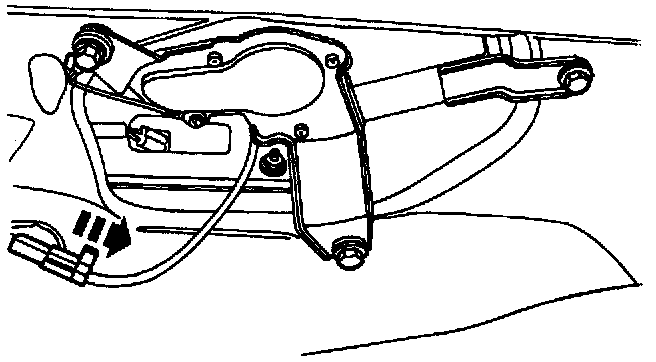

7. Disconnect the rear window wiper motor electrical connector.

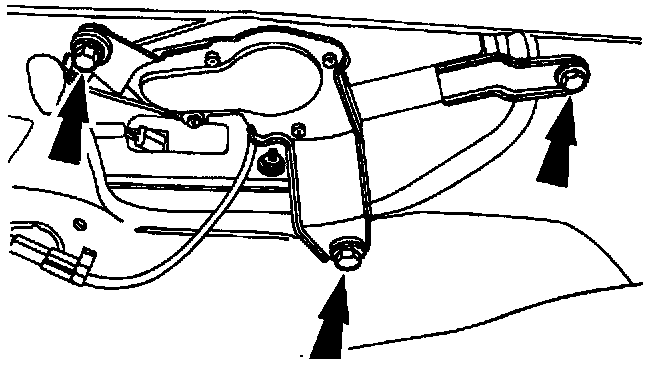

8. Remove the three bolts and washers and the rear window wiper motor.







INSTALLATION

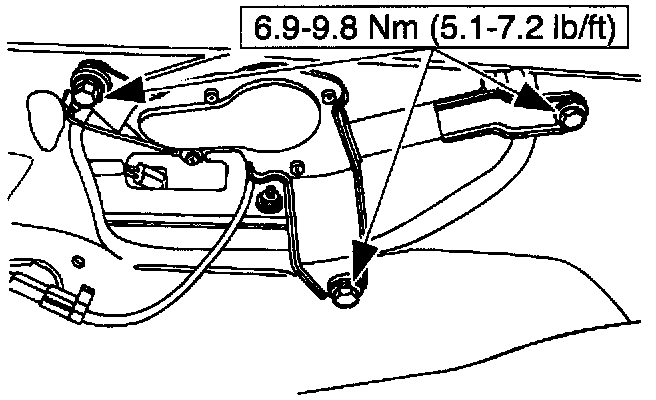

1. To install, reverse the removal procedure.
