Home
>>
Mercury
>>
1997
>>
Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Connector Views
>>

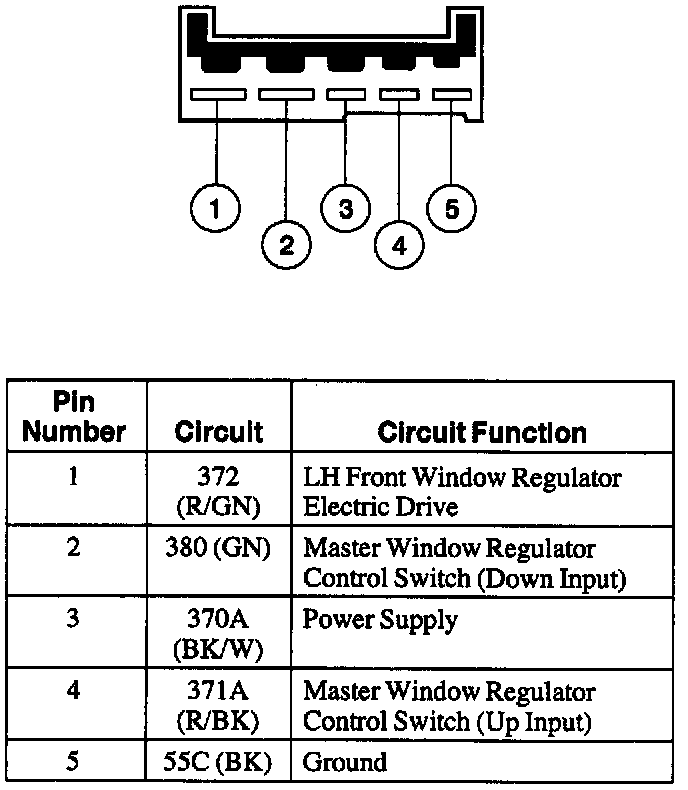

Power Window Auto Down Module Connector
Power Window Auto Down Module Connector
