Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Connector Views

Connector Views

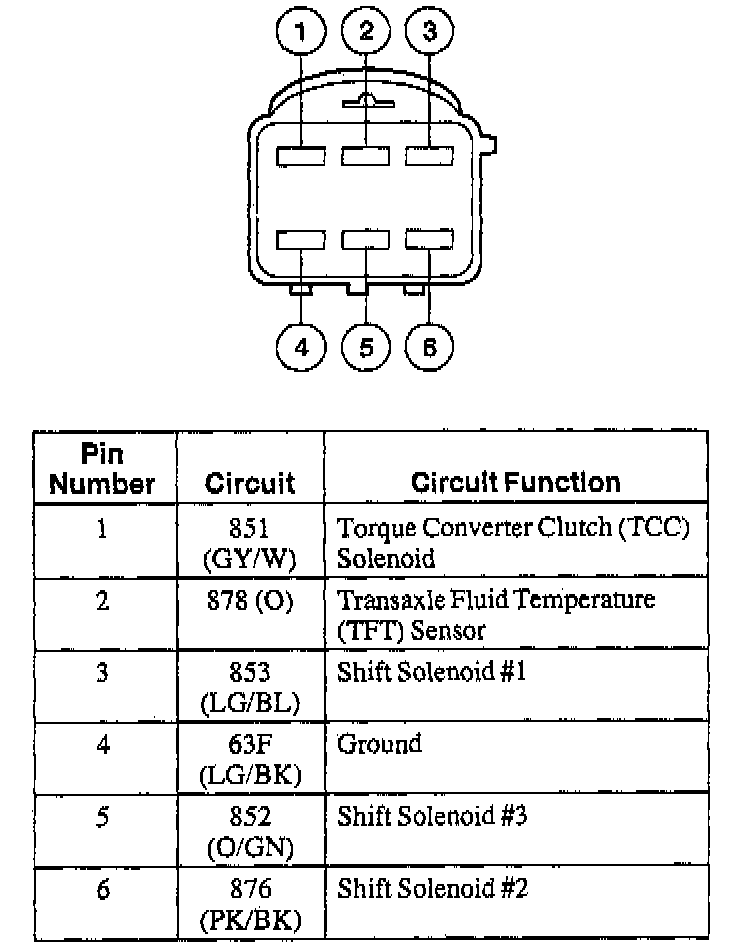

Transaxle Control. C-191:



Turbine Shaft Speed Sensor. C-192:

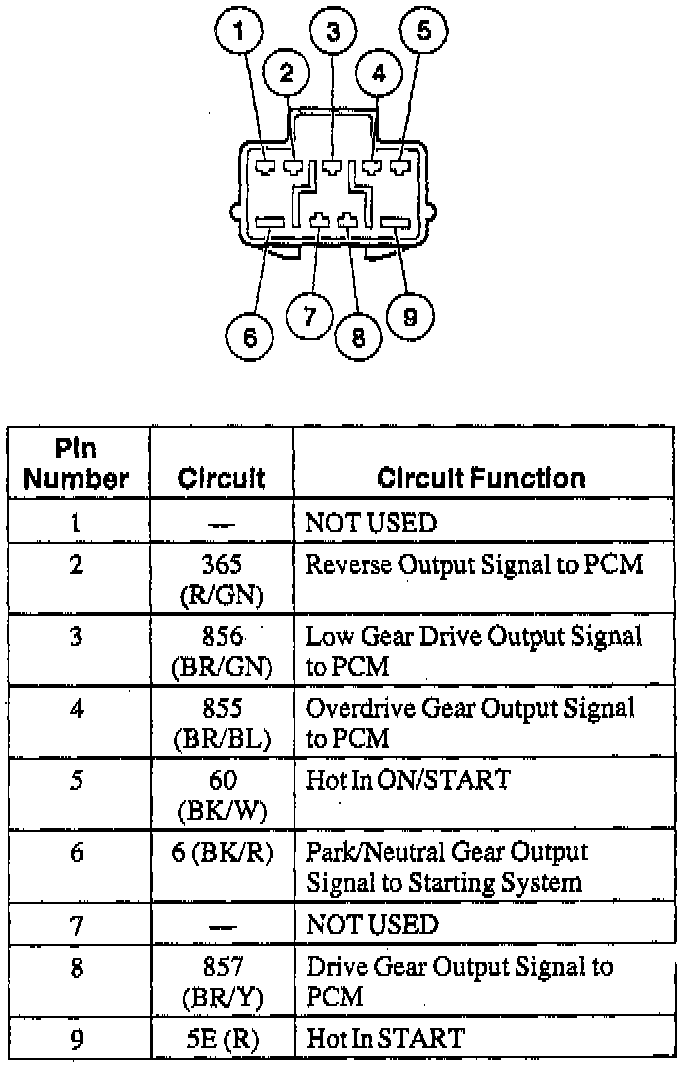

Transmission Range (TR) Switch. C-122:
