Seals and Gaskets: Service and Repair

REMOVAL
1. Remove the front wheel driveshaft and joint.

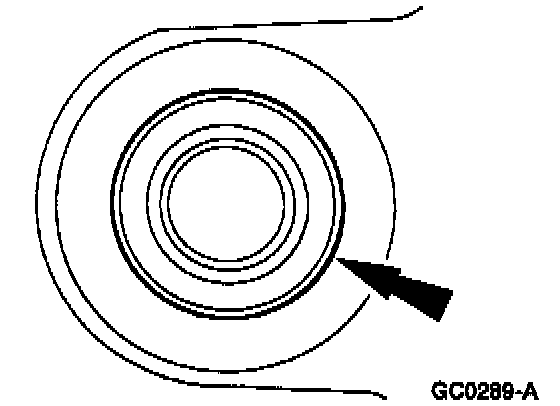

2. Remove the differential oil seals.





INSTALLATION
1. Use Differential Seal Replacer T87C-77000-H to install the new differential oil seals.

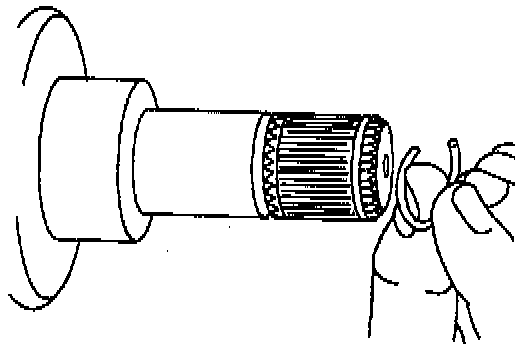

2. Replace the driveshaft bearing retainer circlip.

NOTE: Always install a new driveshaft bearing retainer circlip.

3. Install the front wheel driveshaft and joint.
