Disassembly and Assembly

DISASSEMBLY
1. Remove the outboard driveshaft joint.





2. Remove and discard the dynamic damper retaining clamp and remove the dynamic damper. This procedure is required only if it is being replaced on the RH halfshaft.





ASSEMBLY

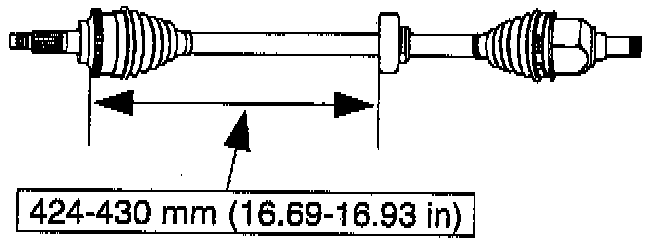

1. Install the dynamic damper to specifications from the outboard driveshaft joint using a new retaining band to hold it in place.
2. Install the outboard driveshaft joint.
