Disassembly

NOTE: Each valve should slide in and out of its be under its own weight. When a valve will not slide out under its own weight, depending on the valve, push it out with a wire or place the valve body open-side down. and lightly tap it with a soft hammer. Never scratch or damage a valve bore. Do not drop the valves or use a valve that has been damaged. Before assembling the valve body, be certain that all valves are clean and lubricated with automatic transaxle fluid.

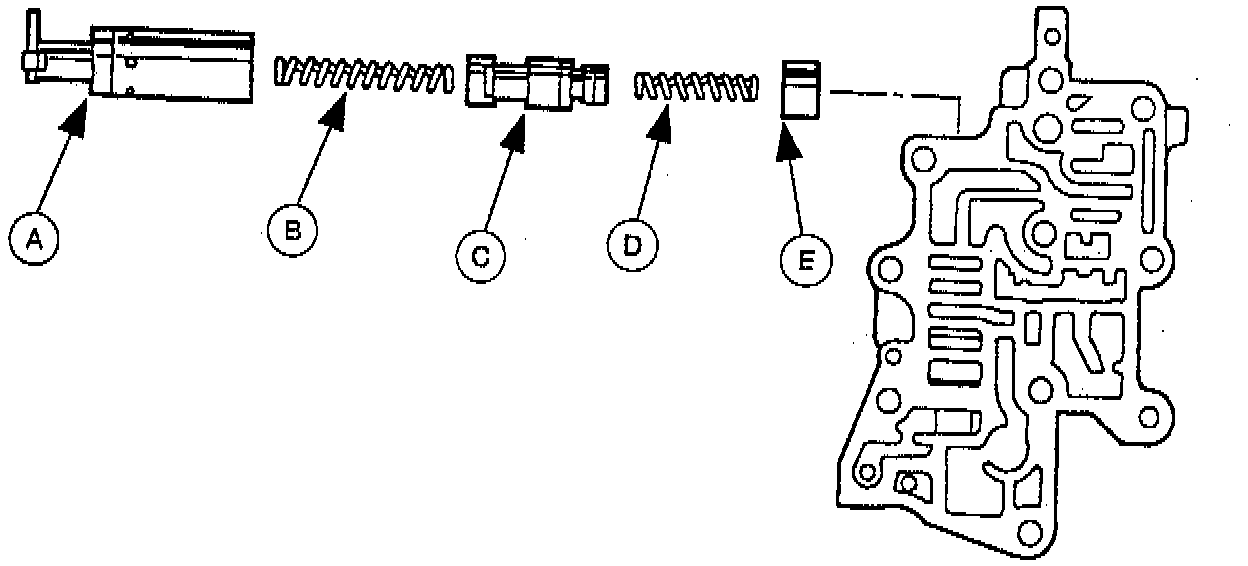

1. Remove the (A) throttle plug, (B) throttle spring, (C) throttle valve, (D) throttle assist spring, and the (E) throttle assist plug from the upper control valve body.

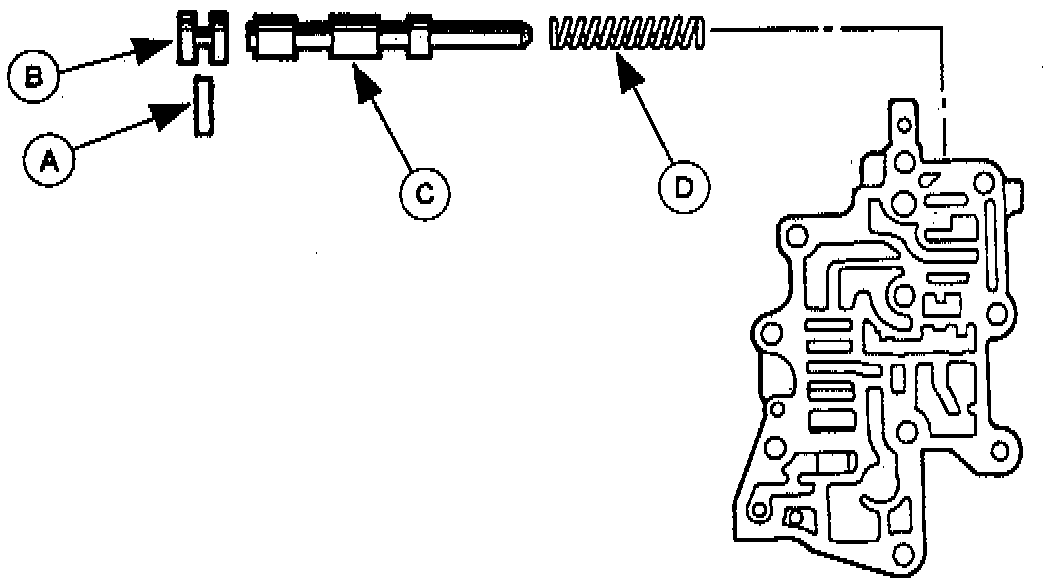

2. Remove the (A) stop pin, (B) stop plug, (C) throttle modulator valve, and the (D) throttle modulator valve spring.
