Disassembly

NOTE: Each valve should slide in and out of its bore under its own weight. When a valve will not slide out under its own weight, depending on the valve, push it out with a wire or place the valve body open-side down and lightly tap it with a soft hammer. Never scratch or damage a valve bore. Do not drop the valves or use a valve that has been damaged. Before assembling the valve body, be certain that all valves are clean and lubricated with automatic transaxle fluid.





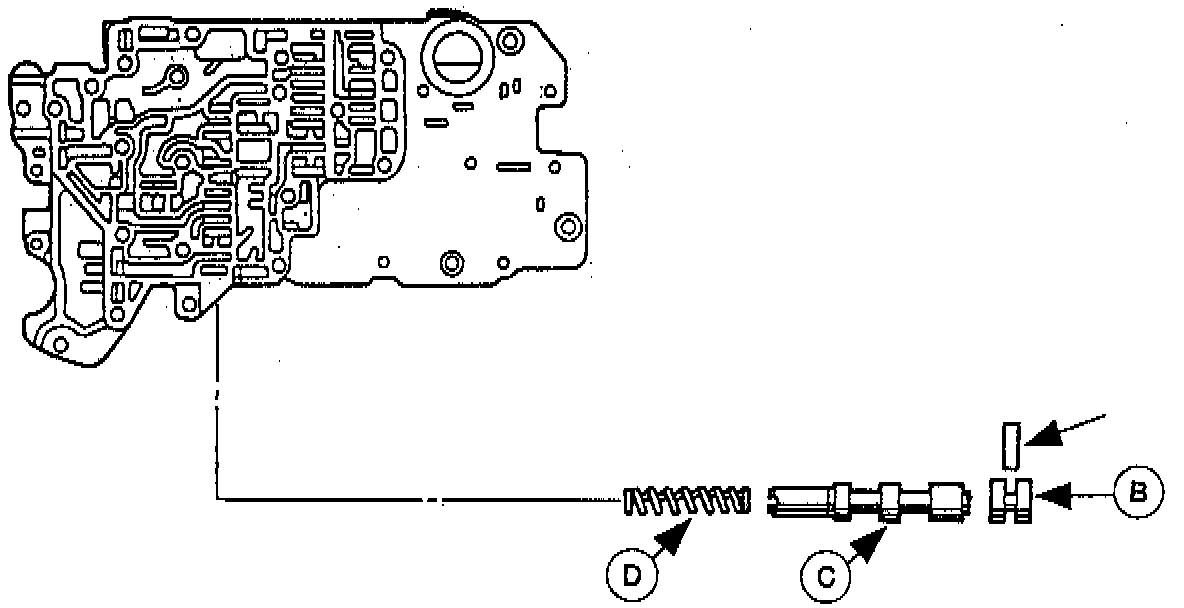

1. Remove the (A) stop pin, (B) stop plug, (C) bypass valve, and the (D) bypass valve spring.

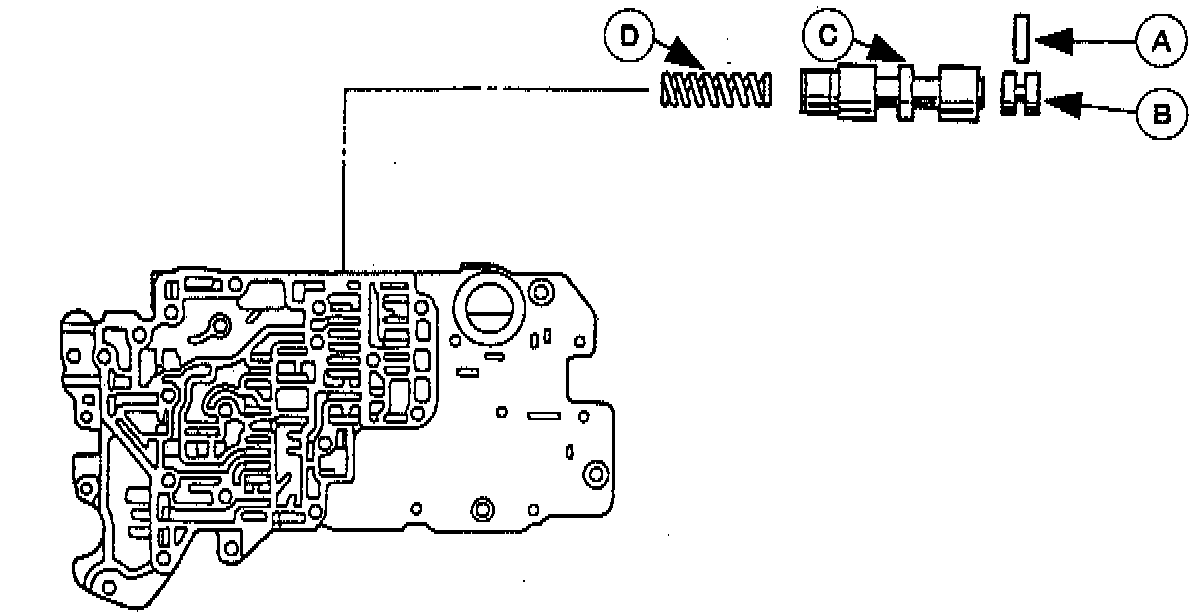

2. Remove the (A) stop pin, (B) stop plug, (C) 2-3 shift valve, and the (D) 2-3 shift valve spring.

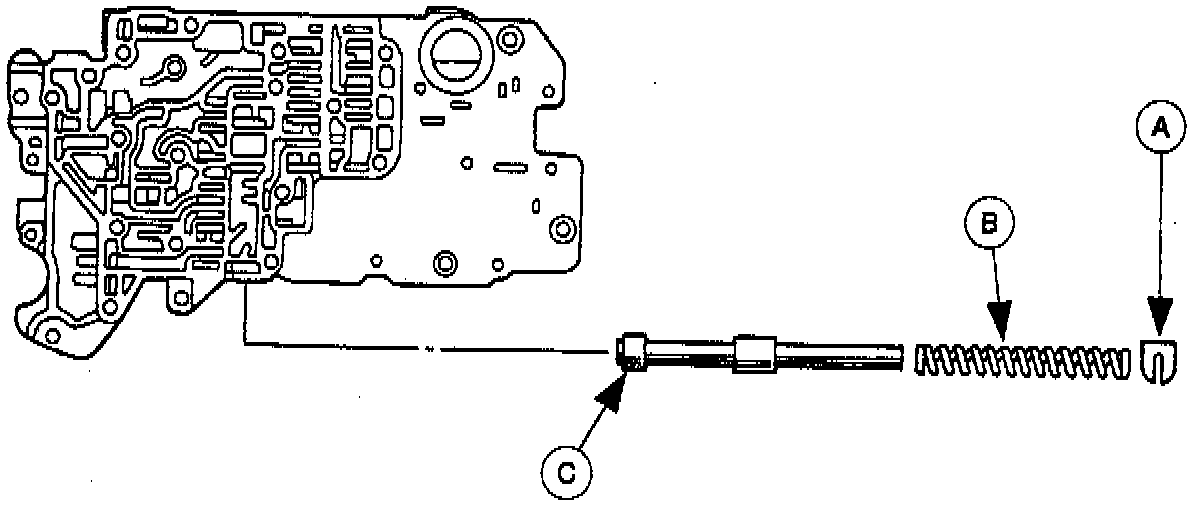

3. Remove the (A) retainer, (B) converter relief valve spring, and the (C) converter relief valve.





4. Remove the (A) stop pin, (B) stop plug, (C) torque converter clutch valve, and the (D) torque converter clutch valve spring.
