OTE - Throttle Pressure Test

1. Connect Pressure Gauge 014-00737 or equivalent to the throttle pressure inspection port, on the automatic transaxle.
2. Connect the Digital Multimeter 105-R0053 or equivalent as a tachometer.
3. Turn key ON, engine running (KOER).
4. Engage the parking brake.
5. Depress the brake pedal and shift the gearshift lever into drive OD.
6. With the brake firmly applied, steadily increase the engine rpm and quickly read throttle pressure.
7. Throttle pressure should be:
Idle: 50-110 kPa (7.2-17 psi)
Stall Speed: 410-510 kPa (59-75 psi)

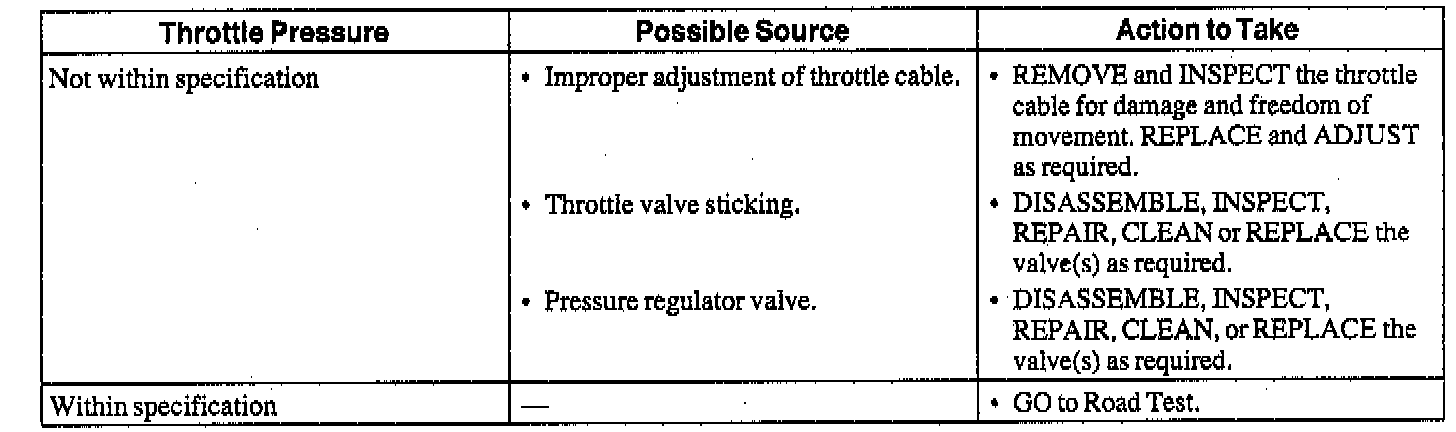

8. Refer to the Throttle Pressure Evaluation Chart.
