Transaxle Control Harness Test

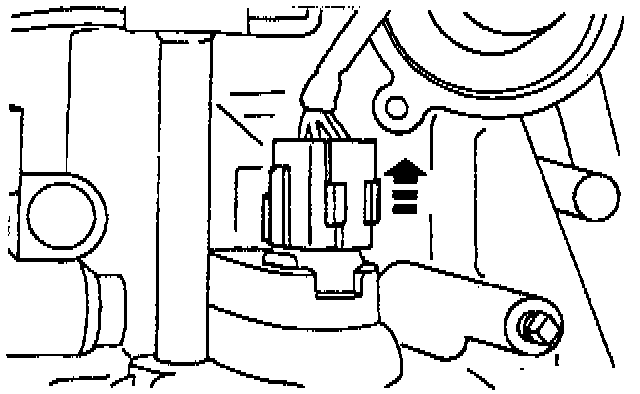

1. Disconnect the transaxle control harness from the main control valve body connector and the vehicle wiring harness connector.

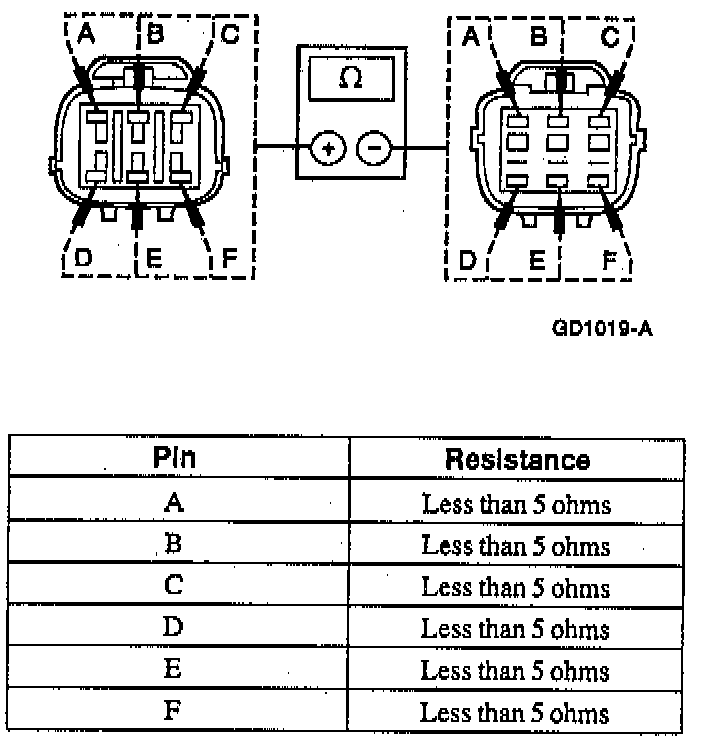

2. Measure the pin to pin resistances.
3. If the resistances are not as specified, repair or replace the transaxle control harness. Otherwise, return to the pinpoint tests.
