Disassembly

NOTE: Prior to disassembly, check one-way clutch operation. While holding the one-way clutch outer race, verify that the inner race rotates smoothly when turned counterclockwise and locks when turned clockwise. If not as specified, replace the one-way clutch.





1. Remove the planet gear thrust bearing from the rear sun gear and drum.





2. Remove the primary sun gear snap ring.





3. Remove the one-way clutch inner race.





4. Remove the one-way clutch outer race. The one-way clutch outer race, the one-way clutch, and the forward clutch cylinder are removed as an assembly.

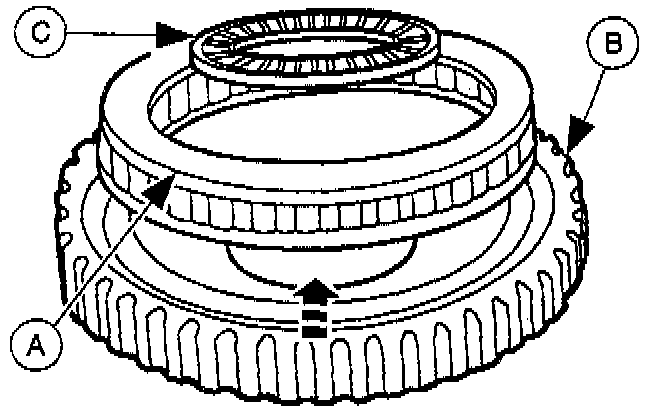

5. Separate the (A) one-way clutch from the (B) one-way clutch outer race and remove the (C) one-way overrunning clutch bearing.





6. Remove the planet gear thrust bearing.





7. Remove the primary sun gear snap ring.





8. Remove the primary sun gear.





9. Remove the planet gear thrust bearing race.
