Installation

1. Use Differential Seal Replacer T87C-77000-H to tap in the new differential oil seals.

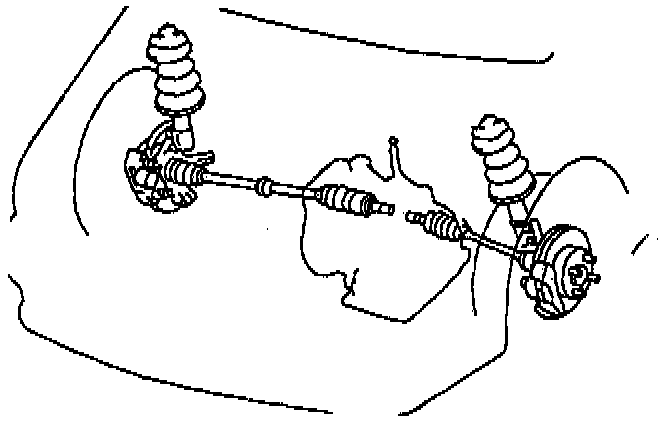

2. Install the front wheel driveshaft and joints.

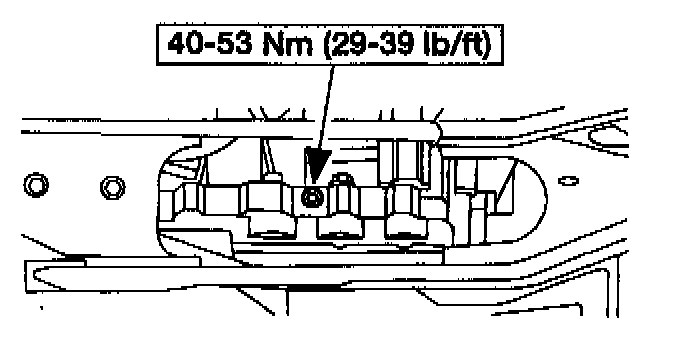

3. Install the transaxle case plug with a new washer.

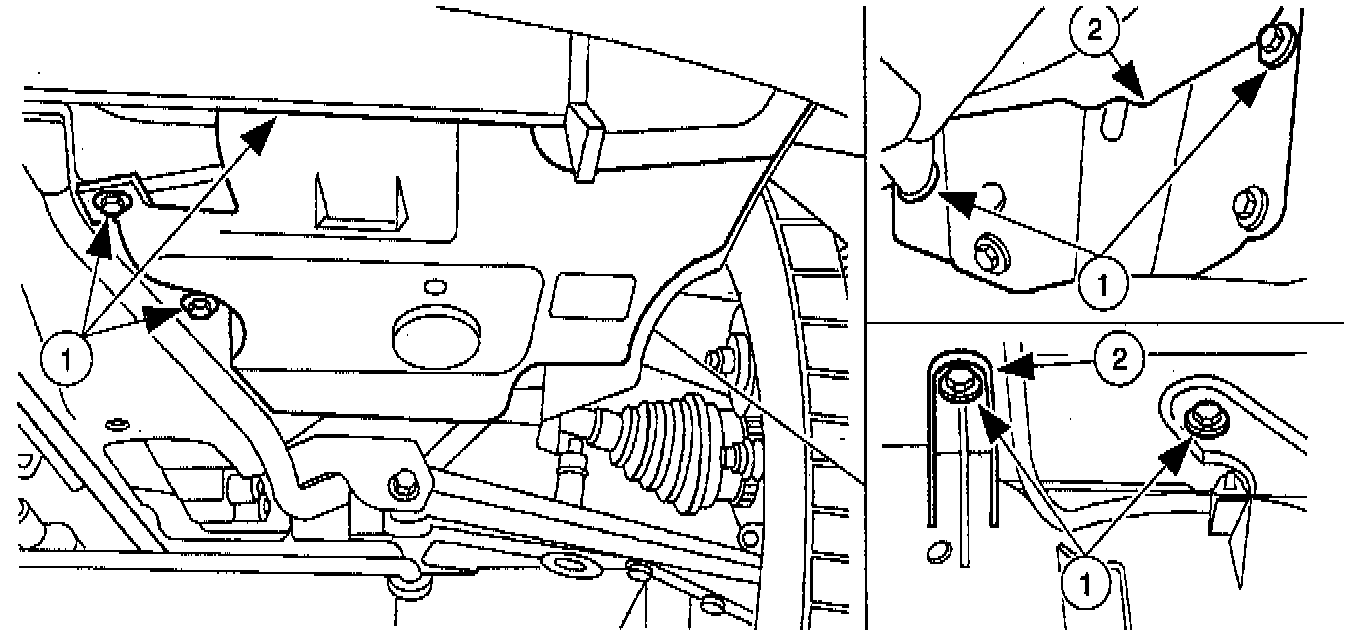

4. Install the LH splash shields.
(1) Install the six splash shield bolts and clip.
(2) Install both splash shields as an assembly.

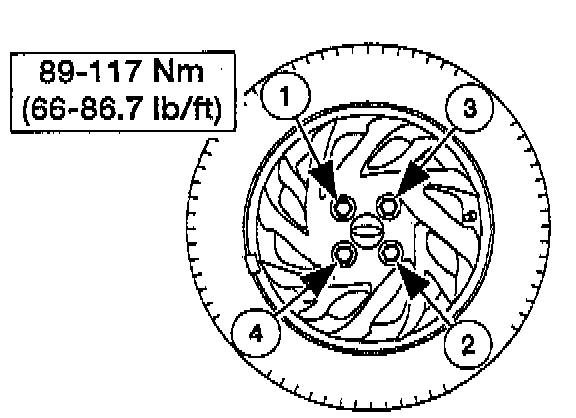

5. Install the tire and wheel assemblies.
6. Lower the vehicle.

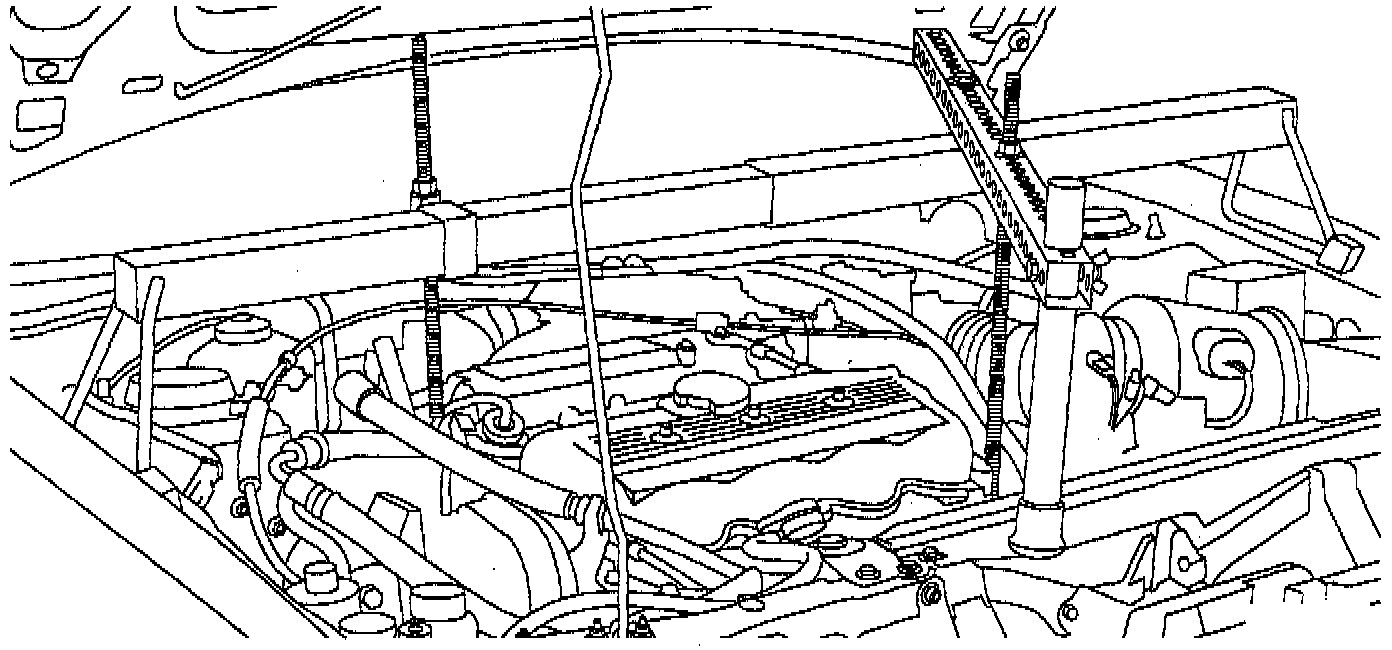

7. Remove the Three-Bar Engine Support D88L-6000-A or equivalent.
8. Add the specified transaxle fluid and inspect for leaks.
