Carrier Bearings: Adjustments

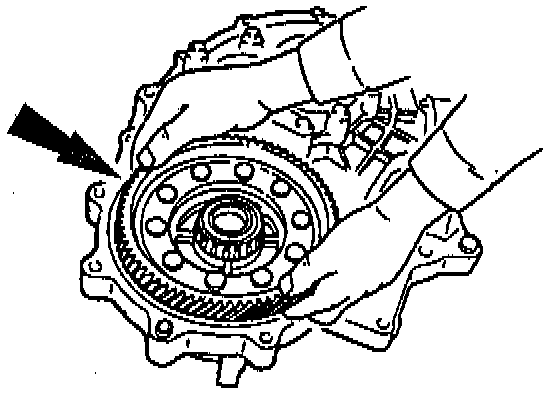

1. Place the differential into the converter housing.

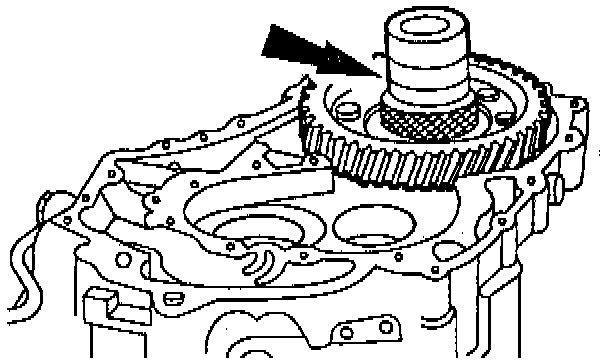

2. Place Shim Selection Gauge (part of T88C-77000-JF), Shim Gauge Adapter Ring T9OP-7025-RH, and the rear bearing cup onto the differential.

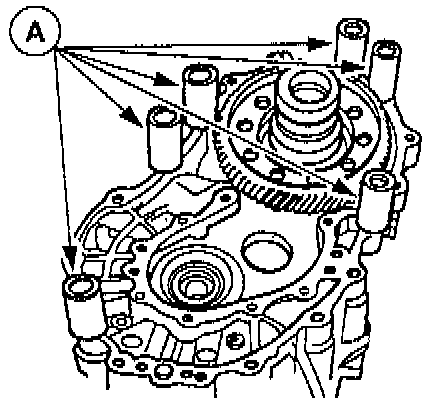

3. Place the six collars (part of T88C-77000-JF) on the converter housing at the positions shown (A).

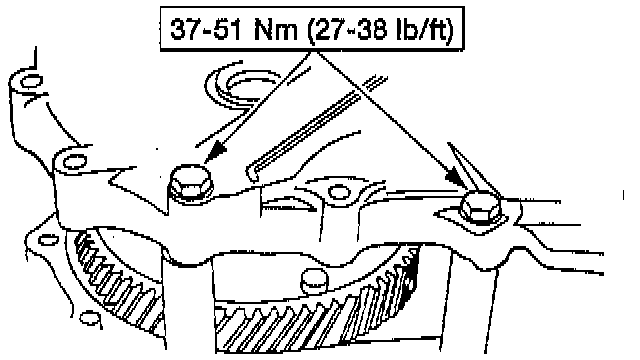

4. Set the transaxle case on the converter housing, then install the six collar bolts and washers (part of T88C-77000-JF).

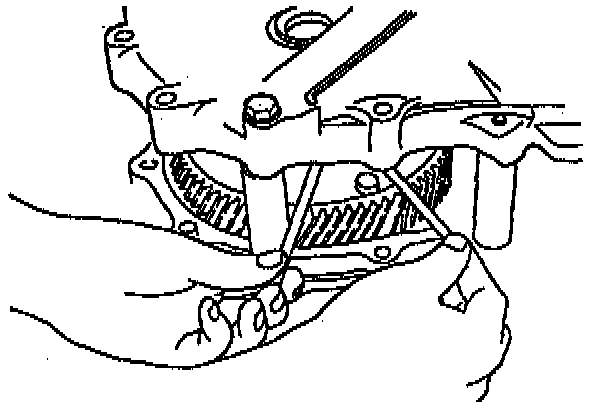

5. Turn the Shim Selection Gauge to increase the clearance by using the rods (part of T88C-77000-JF) until the shim selection gauge no longer turns. This is to seat the bearing race. Turn the shim selection gauge in the opposite direction until the preload is eliminated (gap is reduced).

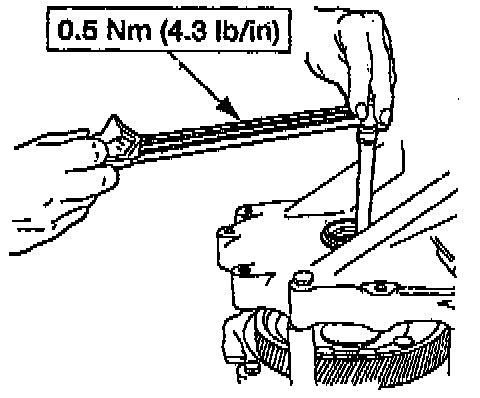

6. Insert the Torque Adapter T90P-7025-BH and attach a torque wrench to the adapter. Measure the drag on the differential bearing.

NOTE:
- Read the preload when the differential starts to turn.
- Take several measurements and calculate the average value.

7. Adjust the clearance of the shim selection gauge, using the rods, to obtain the specified preload.
- Preload should be 0.5 Nm (4.3 inch lbs.).

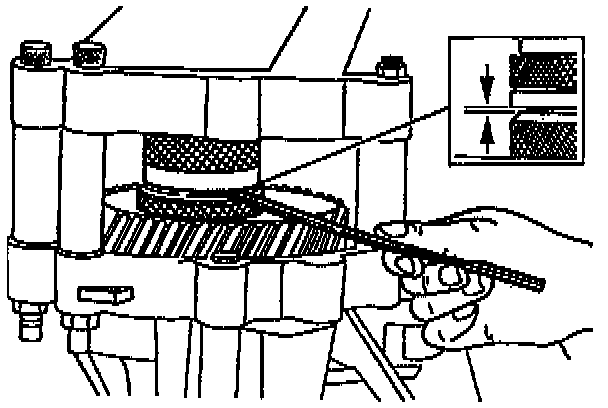

8. Use a feeler gauge to measure the gap between the two halves of the shim Selection Gauge. Add 0.3 mm (0.0118 inch) to the largest measurement. Select the shim(s) closest in value to the measurement from the following chart:

NOTE:
- Measure the clearance around the entire circumference. Select the shim(s) based on the largest clearance.
- Use no more than three shims.
0 500 mm (0.020 inch)
0.525 mm (0.021 inch)
0.550 mm (0.022 inch)
0.575 mm (0.023 inch)
0.600 mm (0.024 inch)
0.625 mm (0.025 inch)
0.650 mm (0.026 inch)
0.675 mm (0.027 inch)
0.700 mm (0.028 inch)
0.725 mm (0.029 inch)
0.750 mm (0.030 inch)
0.775 mm (0.031 inch)
0.800 mm (0.031 inch)
0.825 mm (0.032 inch)
0.850 mm (0.033 inch)
0.875 mm (0,034 inch)
0.900 mm (0.035 inch)
0.925 mm (0.036 inch)
0.950 mm (0.037 inch)
0.975 mm (0.038 inch)
1.000 mm (0.039 inch)
1.025 mm (0.040 inch)
1.050 mm (0.041 inch)
1.075 mm (0.042 inch)
1.100 mm (0.043 inch)
1.125 mm (0.044 inch)
1.150 mm (0.045 inch)
1.175 mm (0.046 inch)
1.200 mm (0.047 inch)
1.225 mm (0.048 inch)
1.250 mm (0.049 inch)
1.275 mm (0.050 inch)
1.300 mm (0.051 inch)
1.325 mm (0.052 inch)
1.350 mm (0.053 inch)
1.375 mm (0.054 inch)
1.400 mm (0.055 inch)
1.425 mm (0.056 inch)
1.450 mm (0.057 inch)
9. Remove the bolts; washers, transaxle case, collars, shim selection gauge, and the bearing cup.

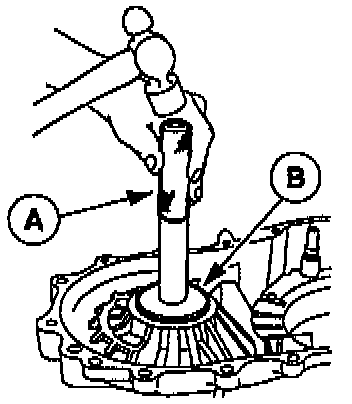

10. Use (A) Driver Handle T80T-4000-W and (B) Bearing Cup Replacer T77F-1217-B to install the required selective shim(s) and tap the bearing cup into the transaxle case.

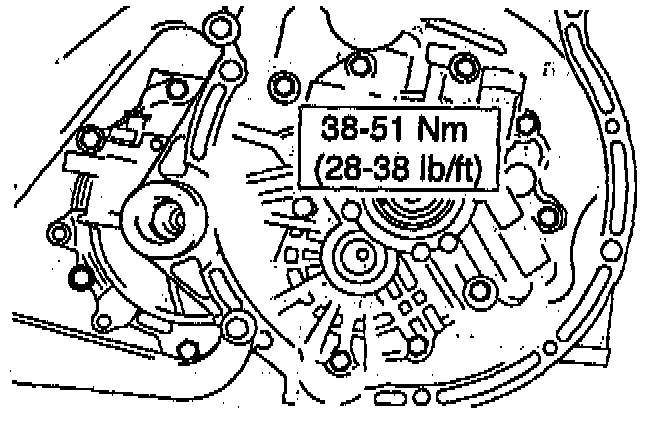

11. Install the transaxle case.

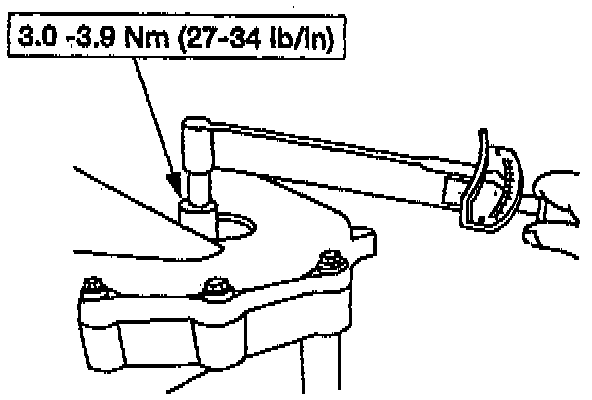

12. Install Torque Adapter T9OP-7025-BH and a torque wrench to the pinion shaft through the transaxle case. Measure the bearing preload.
- Bearing preload should be 3.0-3.9 Nm (27-34 inch lbs.).

NOTE: Take several measurements and calculate the average value.

13. Repeat the gauging process if the preload is not within specification.
14. Remove the transaxle case.
