Disassembly

1. Remove the forward clutch pressure plate snap ring.





2. Remove the forward clutch pressure plate.





3. Remove the forward clutch disc pack.





4. Remove the forward clutch spring.





5. Remove the coasting clutch pressure plate snap ring.





6. Remove the coasting clutch pressure plate.





7. Remove the coasting clutch disc pack.





8. Remove the coasting clutch dished plate.





9. Install Clutch Spring Compressor T65L-77515-A and compress the coasting clutch return spring and retainer. Remove the coasting clutch return springs and retainer snap ring.
(1) Install Clutch Spring Compressor and compress the coasting clutch return spring and retainer enough to remove the coasting clutch return springs and retainer snap ring.
(2) Remove the coasting clutch return springs and retainer snap ring.





10. Remove the coasting clutch return spring and retainer.

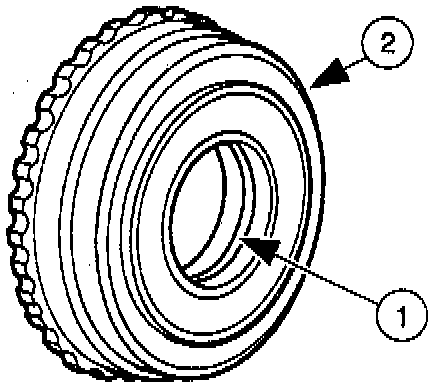

11. Remove the coasting clutch drum from the reverse clutch drum.
(1) Apply compressed air through the fluid passage. Maximum air pressure is 392 kPa (57 psi).
(2) Remove the coasting clutch drum cylinder from the F/C/R clutch drum.





12. Remove the coasting clutch from the coasting clutch drum.
(1) Apply compressed air through the fluid passage. Maximum air pressure is 392 kPa (57psi).
(2) Remove the coasting clutch from the coasting clutch drum.





13. Remove the reverse clutch pressure plate snap ring.





14. Remove the reverse clutch pressure plate.





15. Remove the reverse clutch disc pack and the reverse clutch dished plate.





16. Use Return Spring Compressor T88C-77000-RH to remove the reverse clutch pressure spring snap ring.
(1) Install Return Spring Compressor T9OP-77000-CH, cross bar and plate to compress the reverse clutch pressure spring only enough to remove the reverse clutch pressure snap ring.
(2) Remove one end of the reverse clutch piston spring snap ring from the groove with snap ring pliers. Once started, remove the reverse clutch piston spring snap ring with a screwdriver.





17. Remove the clutch pressure plate.





18. Remove the reverse clutch pressure plate spring.





19. Remove the reverse clutch piston.
(1) Place the reverse clutch on the pump assembly.
(2) Apply compressed air through the fluid passage. Maximum air pressure is 392 kPa (57 psi).
(3) Remove the reverse clutch piston.

WARNING: USE CAUTION WHEN USING COMPRESSED AIR TO REMOVE COMPONENTS.
