Assembly

1. Clean all components with a suitable solvent and use compressed air to dry all parts and clean the fluid passages. Perform the following before assembling:
- Inspect each accumulator piston for damage or wear.
- Check for worn or broken accumulator springs.





2. Measure the free length of the accumulator springs. If not within the specification, replace the spring.

NOTE: Do not compress the spring when measuring it with vernier calipers.

2-3 Accumulator
Small
Outer Diameter (A): 10.0 mm (0.394 inch)
Free Length (B): 67.8 mm (2.699 inch)
Wire Diameter (C): 1.3 mm (1.051 inch)
No. of Coils: 20.0
Identification Color: Pink
Large
Outer Diameter (A): 15.0 mm (0.591 inch)
Free Length (B): 69.5 mm (2.736 inch)
Wire Diameter (C): 2.0 mm (0.079 inch)
No. of Coils: 15.8
Identification Color: Maroon
1-2 Accumulator
Small
Outer Diameter (A): 11.0 mm (0.433 inch)
Free Length (B): 81.7 mm (3.217 inch)
Wire Diameter (C): 1.4 mm (0.055 inch)
No. of Coils: 25.9
Identification Color: Red
Large
Outer Diameter (A): 16.0 mm (0.630 inch)
Free Length (B): 82.1 mm (3.232 inch)
Wire Diameter (C): 2.0 mm (0.079 inch)
No. of Coils: 18.0
Identification Color: Yellow
N-D Accumulator
Small
Outer Diameter (A): 10.8 mm (0.425 inch)
Free Length (B): 101.2 mm (3.984 inch)
Wire Diameter (C): 1.2 mm (0.047 inch)
No. of Coils: 28.2
Identification Color: -
Large
Outer Diameter (A): 15.0 mm (0.591 inch)
Free Length (B): 94.2 mm (3.709 inch)
Wire Diameter (C): 1.6 mm (0.063 inch)
No. of Coils: 16.5
Identification Color: Red
N-R Accumulator
Small
Outer Diameter (A): 9.8 mm (0.386 inch)
Free Length (B): 93.2 mm (3.669 inch)
Wire Diameter (C): 1.3 mm (0.051 inch)
No. of Coils: 31.5
Identification Color: -
Large
Outer Diameter (A): 14.0 mm (0.551 inch)
Free Length (B): 106.5 mm (4.193 inch)
Wire Diameter (C): 1.7 mm (0.067 inch)
No. of Coils: 23.0
Identification Color: Orange

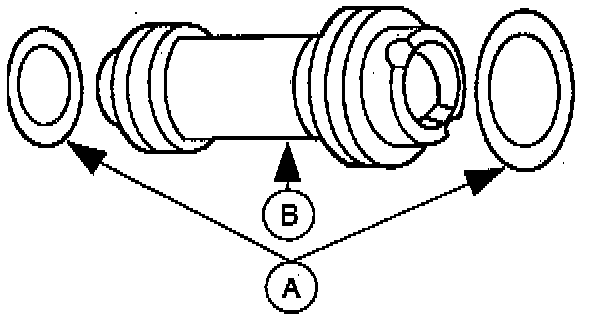

3. Apply the specified transaxle fluid to new (A) seal rings and install them onto the (B) accumulator pistons, then install the accumulator pistons into their proper bores in the transaxle case.

CAUTION: Apply even pressure to the perimeter of the accumulator pistons to avoid damaging the new seal ring.

2-3 Accumulator
Large: 29.87 mm (1.175 inch)
Small: 21.91 mm (0.863 inch)
1-2 Accumulator
Large: 24.40 mm (0.961 inch)
Small: 16.78 mm (0.657 inch)
N-D Accumulator
Large: 29.87 mm (1.175 inch)
Small: 21.91 mm (0.863 inch)
N-R Accumulator
Large: 29.87 mm (1.176 inch)
Small: 22.00 mm (0.865 inch)





4. Apply the specified automatic transaxle fluid to the new O-rings and install them onto the accumulator spring retainers. The accumulator spring retainer O-ring inner diameter is 28.1 mm (1.12 inch).





5. Install the (B) accumulator piston springs and the (A) accumulator spring retainers.

CAUTION: Apply even pressure to the perimeter of the accumulator spring retainers to avoid damaging the new O-rings.





6. Install the accumulator piston retaining ring.
