Installation

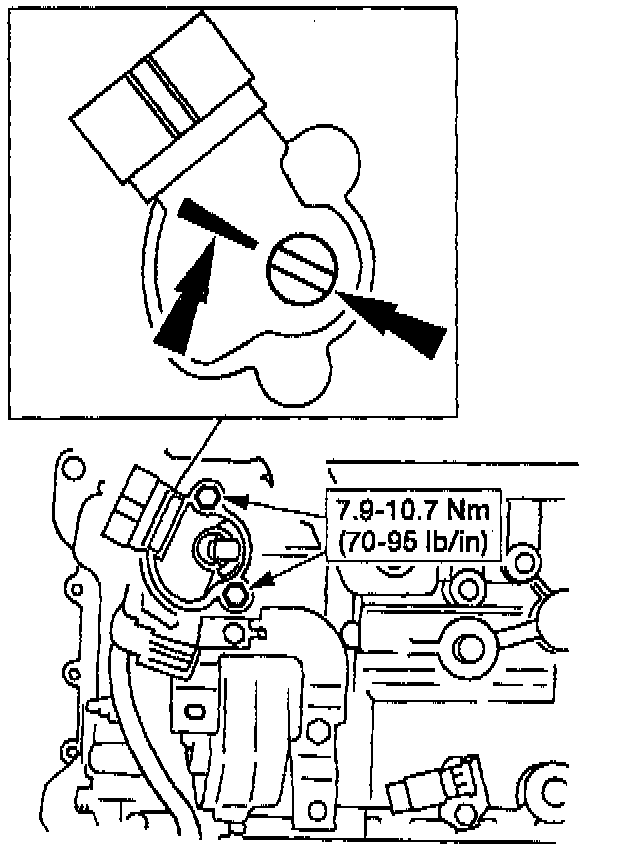

1. Shift the transaxle into neutral then align the marks on the TR switch and the manual control lever while installing and tighten bolts to specifications. Adjust the switch as necessary.





2. Connect the TR switch electrical connector.

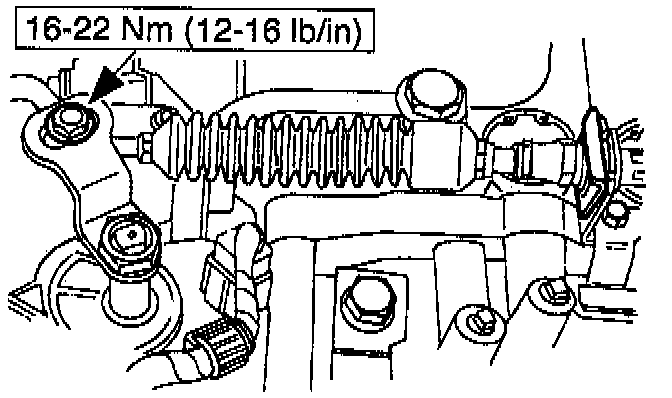

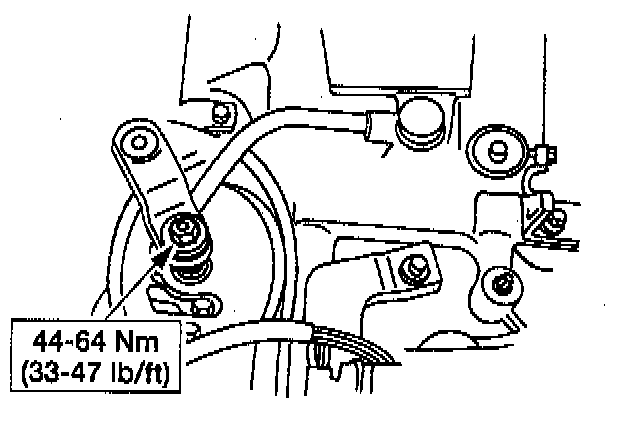

3. Position the manual control shift outer lever into place and tighten the manual lever control nut to specifications.





4. Install the shift cable and bracket and nut to specifications. Perform shift cable adjustment procedure.
5. Install the air cleaner outlet tube.





6. Connect the battery ground cable.
