Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data

A/T Torque Data

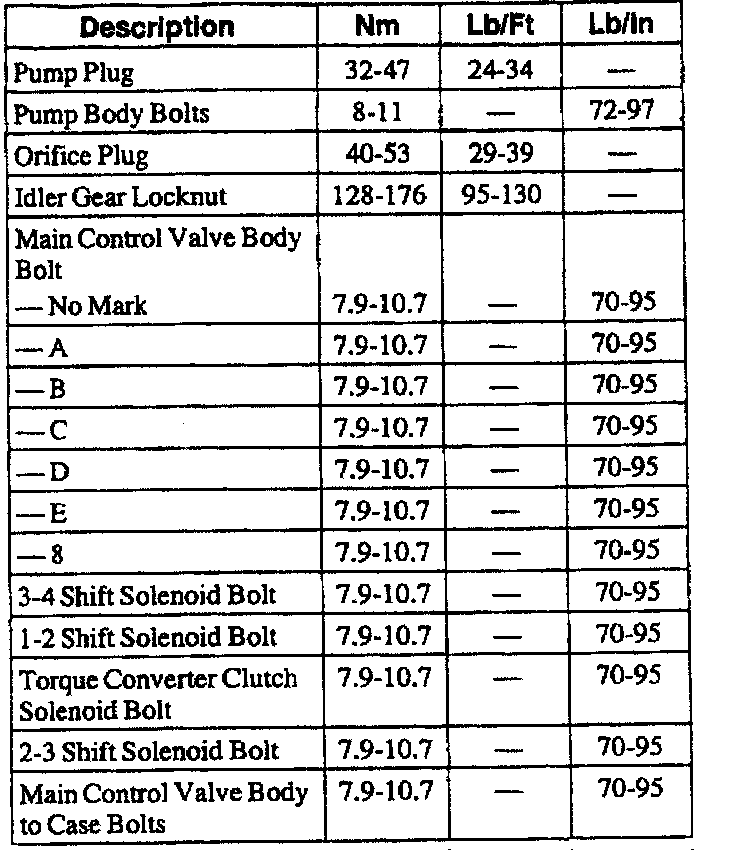

IF4E 4-spd A/T, Transaxle Torque (Escort/Sable):




IF4E 4-spd A/T, Transaxle Cont. (Escort/Sable):
