Power Window Switch: Service and Repair

REMOVAL
1. Remove the front door trim panel.







2. Squeeze the tabs to remove the front window regulator control switch and disconnect the electrical connection from the front door trim panel.

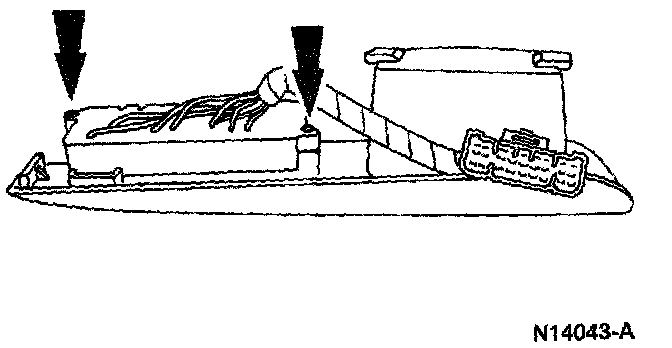

3. Remove the two screws and remove the front window regulator control switch.

INSTALLATION
1. To install, reverse the removal procedure.
