Removal

1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube.





3. Remove the (A) shift cable and bracket nut and the (B) control cable front clamp.

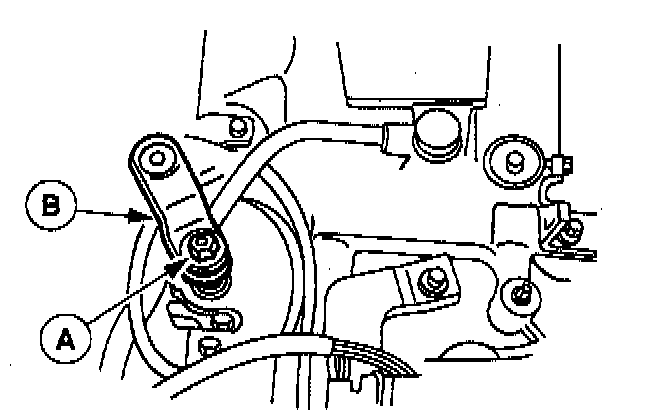

4. Remove the (A) manual lever control nut and the (B) manual control shift outer lever.

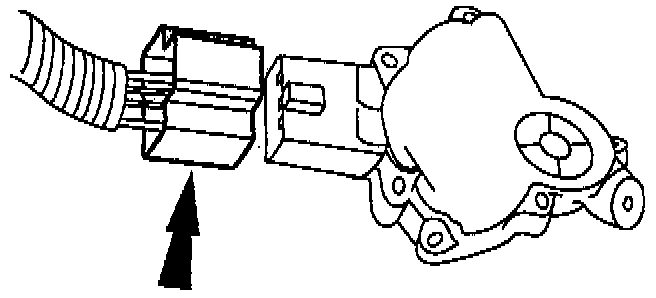

5. Disconnect the TR switch electrical connector.

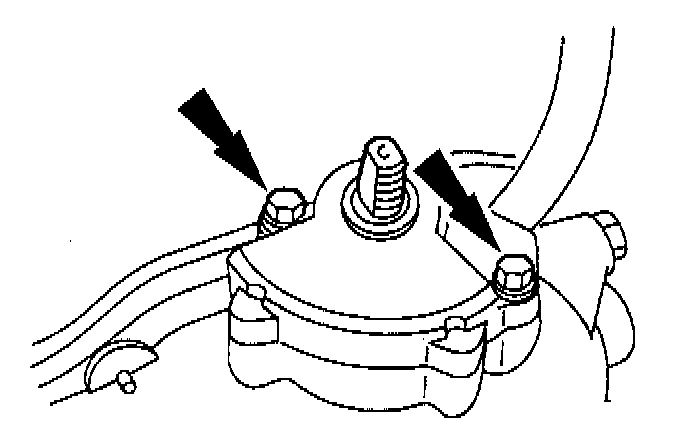

6. Remove the two TR switch bolts and remove the TR switch.
